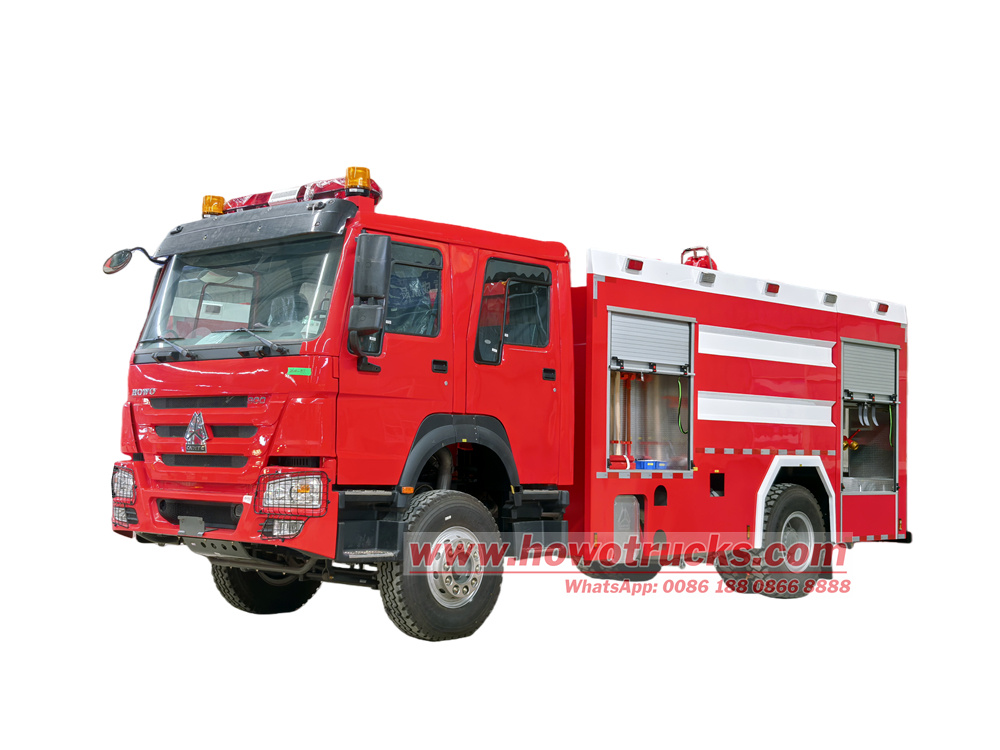

Sinotruk HOWO rescue pumper truck for police

Sinotruk HOWO rescue pumper truck for police
HOWO 300HP foam fire rescue truck
HOWO 4x2 5cbm foam water fire truck
HOWO 4x2 5000 liters foam fire rescue truck
HOWO 5cbm foam water fire fighting truck
HOWO 5cbm foam water tank fire engine
Howo HW76 5cbm foam fire tender truck
Howo 5 cubic meter foam fire truck
pump room
control panel
CB10/60-RS fire pump
CB10/60-RS fire pump
pipe system
fire equipment
fire equipment

Sinotruk HOWO rescue pumper truck for police

The Howo 5 cubic meter foam fire truck adopts a Sinotruk HW76 cab with a 4600mm wheelbase, equipped with a WEICHAI WP10.300E22 engine and an HW19710 gearbox. The front of the superstructure houses an equipment compartment storing various firefighting equipment, while the middle section contains a 4 cubic meter carbon steel water tank and a 1 cubic meter foam tank. The rear houses the pump room, equipped with a CB10/60-RS fire pump, control panel, and some firefighting equipment. A PL8/48 fire monitor is mounted on the roof.

  • Ishlash qobiliyati :

    5000L

  • Idish turi :

    HOWO HW76

  • Drayv tizimi :

    4X2

  • G'ildirak bazasi (mm) :

    4600

  • Dvigatelga xos :

    300 HP / WEICHAI WP10.300E22

  • Vites qutisi :

    HW19710 , manual, 10 forwards & 2 reverses

  • Old o'q (kg) :

    9500

  • Orqa aks (kg) :

    16000kg
Hozir so'rang
MAHSULOT TOIFALARI
Yangi mahsulotlar

The Sinotruk HOWO rescue pumper truck for police is a highly mobile, fast-responding, foam-spraying medium-sized fire truck suitable for fire and rescue missions in cities, towns, industrial and mining enterprises, and ports. Modified from the Sinotruk Howo HW76 chassis, equipped with a 300-horsepower engine, the vehicle features a rational layout, reliable performance, and a 5-cubic-meter water and foam system, along with a high-quality fire pump and monitor, giving it excellent fire-fighting capabilities.

Sinotruk HOWO rescue pumper truck for police

*HOWO 300HP foam fire rescue truck*

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



» Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS GROUP LIMITED



Features

Reliable Chassis: Utilizes a Sinotruk HW76 chassis, a Weichai 300hp engine, and an HW19710 transmission, providing strong power and efficient transmission.



Practical Tank: A 4-cubic-meter water tank plus a 1-cubic-meter foam tank, suitable for combined water and foam operations in small to medium-sized fires.



Strong Firefighting Capacity: Equipped with a CB10/60-RS pump and a PL8/48 roof-mounted water cannon, offering high flow rate, rapid water intake, and long range.



Reasonable Structure: Clearly defined zones for front equipment, middle tank, and rear pump room, facilitating easy access to equipment.



Widely Applications: Suitable for initial fire suppression in urban areas, towns, industrial and mining facilities, oil depots, and chemical plants.



» Ⅱ. Product Parameter for HOWO 300HP foam fire rescue truck:



HOWO 5cbm foam water fire truck

Main specification

Truck brand

CS TRUCKS

Overall dimension(L*W*H)

8580×2540×3660mm

Cabin

HOWO HW76 cab, double row, with air conditioner, electronic windows, USB

GVW/Curb weight

16000/10500kg

Drive model

4x2,left hand drive

Front/rear axle loading

VGD95, 9500/MCX16, 16000kg

Wheel Base

4600mm

Tyre size & number

12.00R20,6+1wheel

Transmission

SINOTRUK HW19710, manual, 10 F & 2 R

Color

Red, standard.

Engine

Engine type

Inline six-cylinder, water-cooled, four-stroke, supercharged and intercooled, high-pressure common rail

Engine model

WEICHAI WP10.300E22

Horse power

300 HP/ 221kW

Displacement

9.726L

Emission

EURO 2

Upper body

Tank

Capacity

4000L water tank，1000L foam tank

Material

Water tank carbon steel,foam tank stainless steel

Fire pump

Model

CB10/60-RS

Pressure

1MPa

Max working pressure

1.082MPa

Max allowable inlet pressure

0.4MPa

Flux

60L/s

Max suction height

7m

Rated speed

3200±50r/min

Speed Ratio

1:1.44

Fire monitor

Model

PL8/48

Flow

48L/s

Rated working pressure

0.8MPa

Range

Water

≥70 m

Foam

≥60m

Pitch rotation

- 45～+70°

Horizontal rotation

0～360°



HOWO HW76 5cbm foam water fire truck

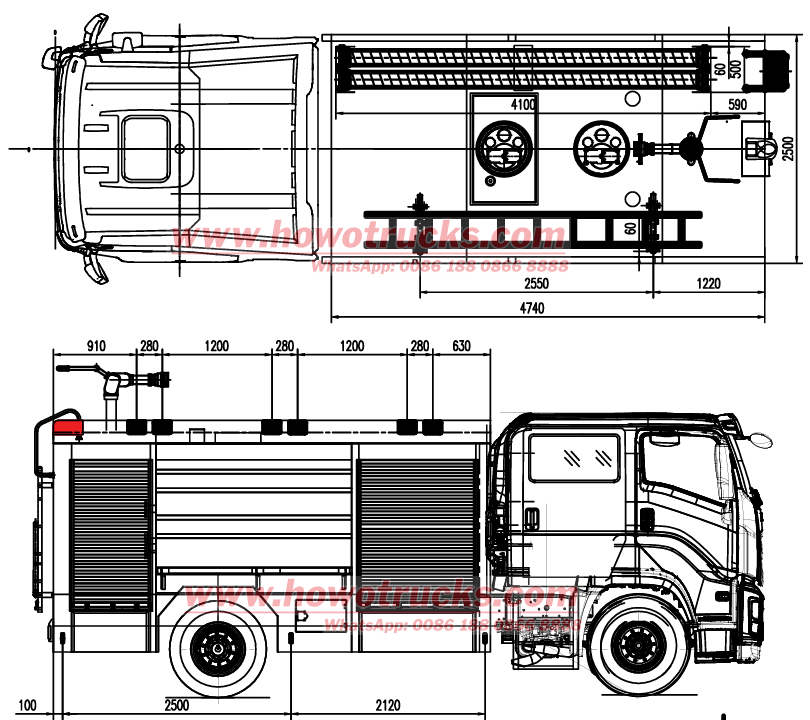

HOWO 5cbm foam water tank fire engine technical drawing

» Ⅲ. Chassis Configuration

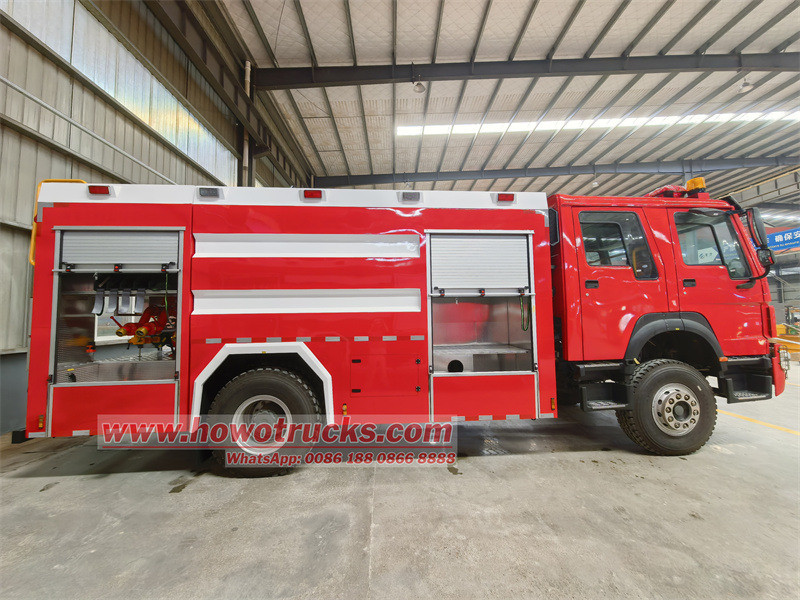

HOWO 4x2 5cbm foam water fire truck

• Cab: Sinotruk HW76 extended cab, offering excellent visibility and comfortable ride.



• Wheelbase: 4600mm



• Engine: Weichai WP10.300E22 diesel engine, 9.726L displacement, maximum power 220kW/300hp.



• Transmission: Sinotruk HW19710 series 10-speed manual transmission, offering clear gear positions, high transmission efficiency, and adaptability to complex road conditions.


» Ⅳ. Upper Structure:

The upper structure adopts a modular design, divided into four main areas: equipment room, water tank, foam tank, and pump room.

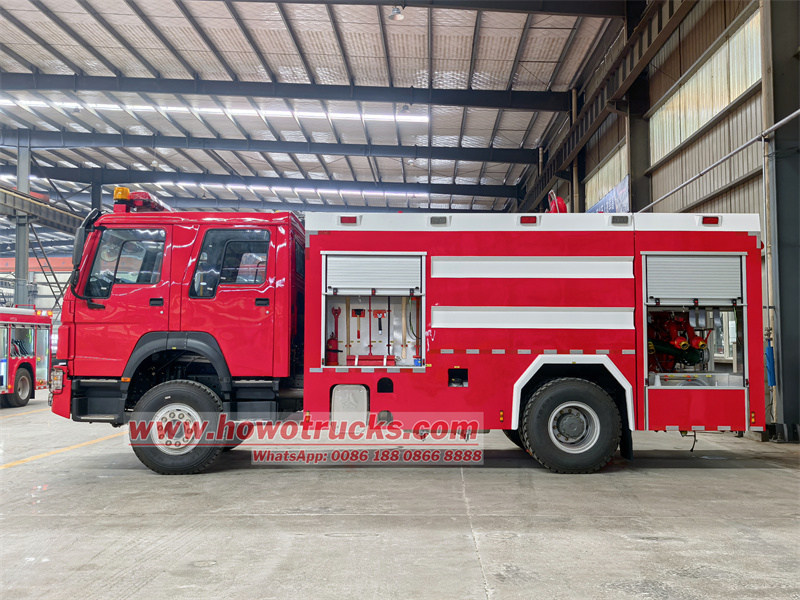

HOWO 4x2 5000 liters foam fire rescue truck

1. Equipment Room (Front)



• Located behind the driver's cab, it offers ample space, fully clad in bright aluminum alloy patterned panels, and features an aluminum alloy roller shutter door.



• It can store commonly used firefighting equipment such as fire shovels, axes, picks, above-ground and underground fire hydrant wrenches, crowbars, waist axes, rubber hammers, hose bridges, hose covers, fire extinguishers, etc. These equipment items are stored in fixed locations, clearly labeled, and easily accessible.

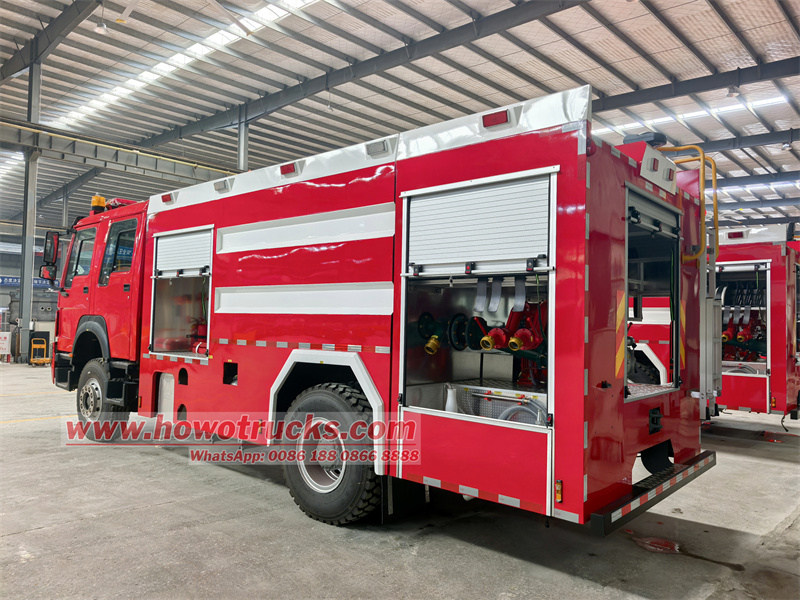

HOWO 5cbm foam water fire fighting truck

2. Liquid Tanks (Middle Section)



•  Water Tank Capacity: 4 cubic meters, carbon steel, with internal baffles to reduce swaying during driving.



•  Foam Tank Capacity: 1 cubic meter, separate from the water compartment, stainless steel.

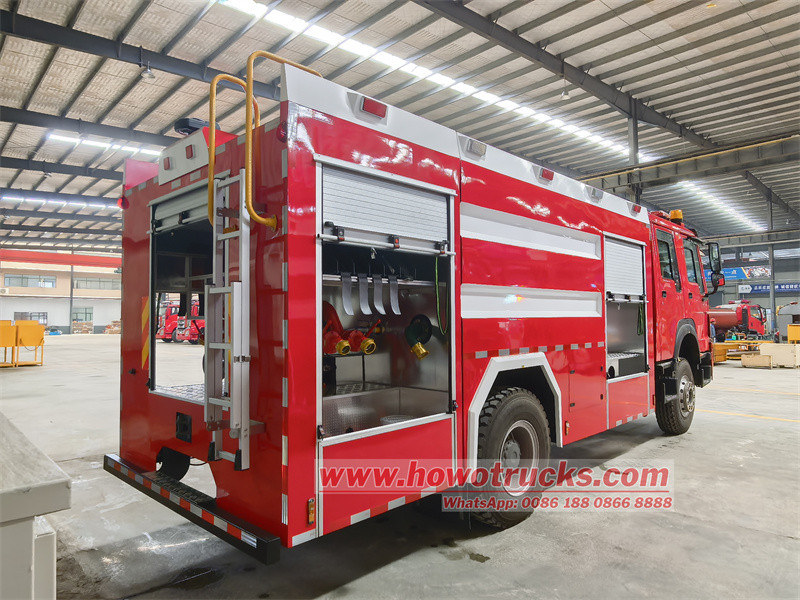

HOWO 5cbm foam water tank fire engine

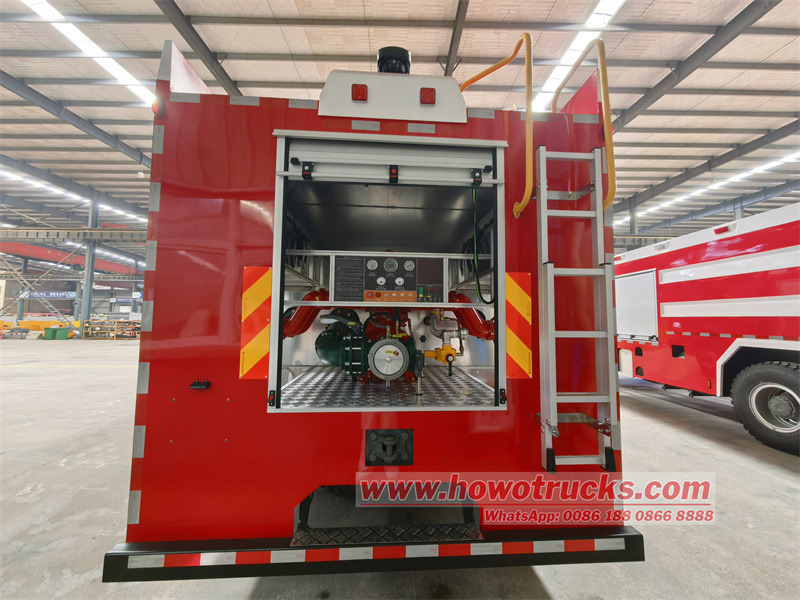

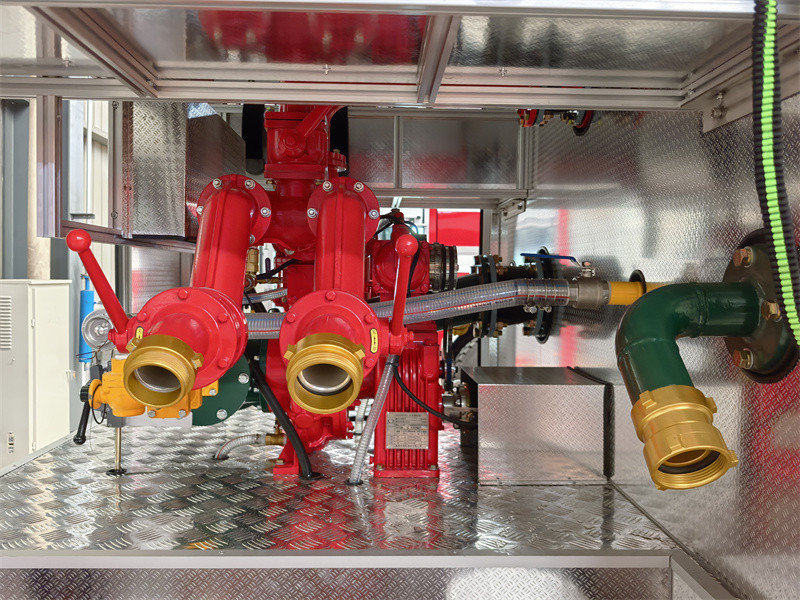

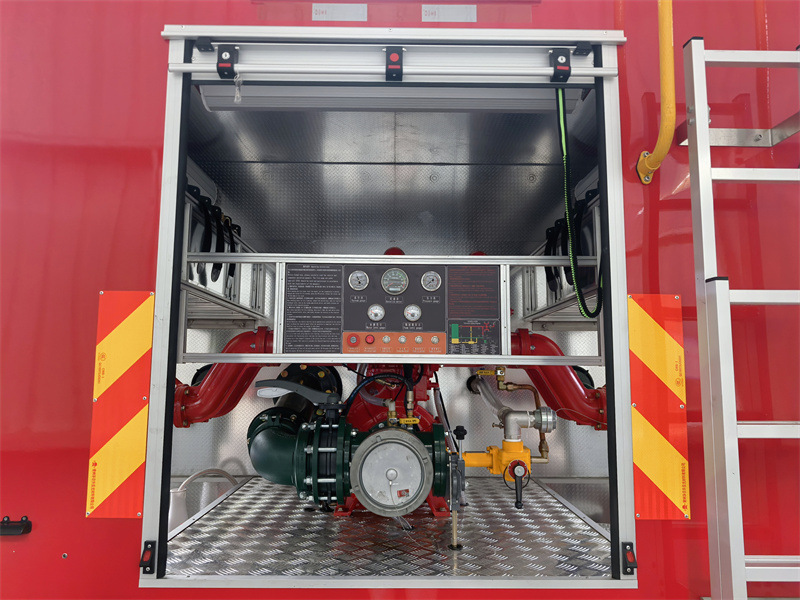

3. Pump Room (Rear End)



The rear pump room is the core of the vehicle's power output; all firefighting operations rely on the pump room system.



• Features an aluminum alloy roller shutter door and aluminum alloy frame.

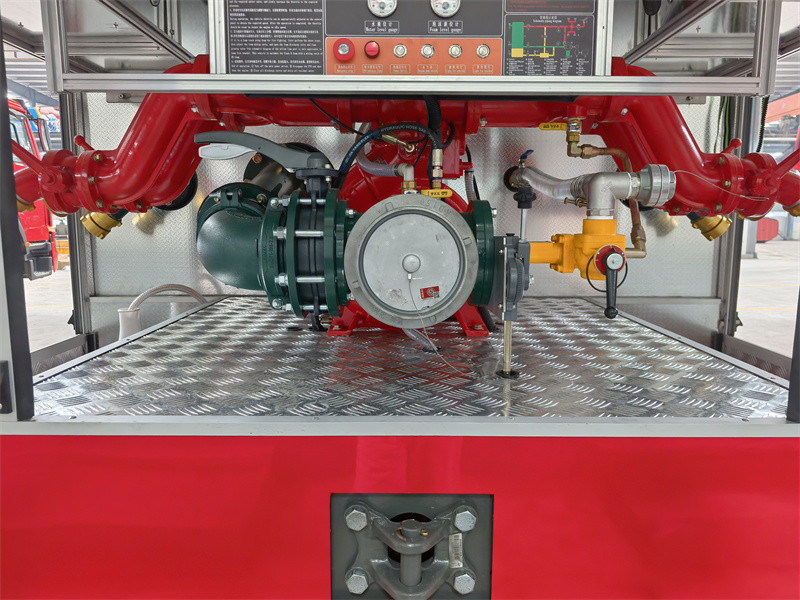

• Fire Pump: Equipped with a CB10/60-RS low-pressure fire pump,



Rated flow rate 60L/s @ 1.0MPa,

Maximum suction depth 7m,

Priming time ≤50s,

Maximum vacuum ≥85kPa



Fire pump Model

 Flux（L/s）

Pressure（MPa）

Pump shaft speed（rpm）

Power(kw)

 Suction depth(m)

Max working pressure

CB10/60-RS

60

1.0

3200±50r/min

 99.71

  3

1.082MPa

42

1.3

3528±50r/min

109.18

-

30

1.0

3326±50r/min

-

7

-

CB10/60-RS fire pump

control panel

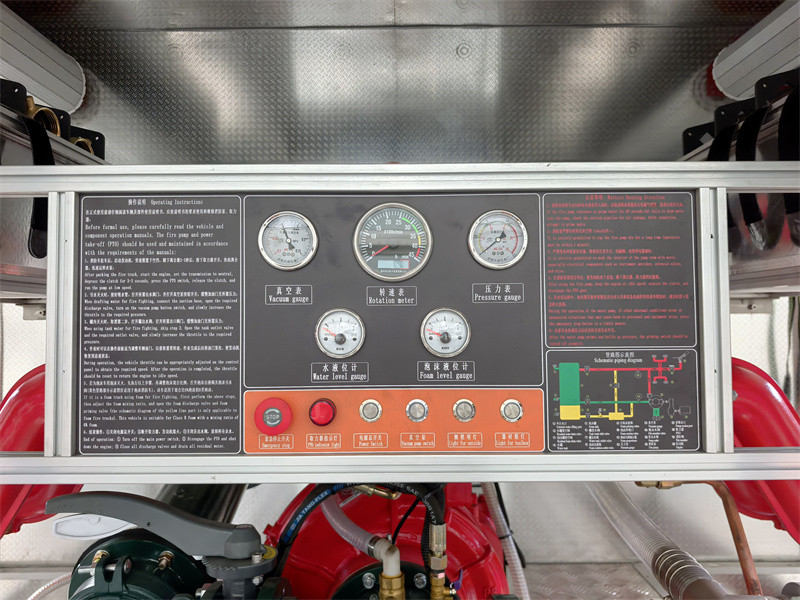

• Control Panel:



Integrated with operating instructions, precautions, piping diagram, and indicators for vacuum gauge, tachometer, pressure gauge, water level gauge, foam level gauge, etc.; buttons for emergency stop switch, PTO indicator, main power switch, vacuum pump, side lighting, and equipment box indicator; intuitive operation.

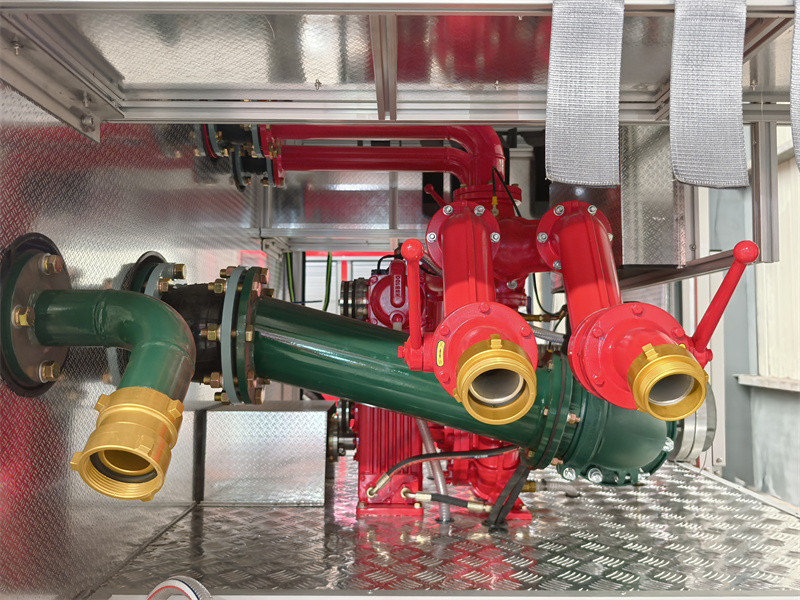

Piping System:

• Piping System:



Includes a DN150 pump inlet, two DN100 external water inlets on either side of the tank, and one DN80 and one DN65 outlet on each side of the pump. Enables self-priming of the tank, external water supply, output of water or foam mixture from within the tank, and simultaneous operation of fire monitors/hose.

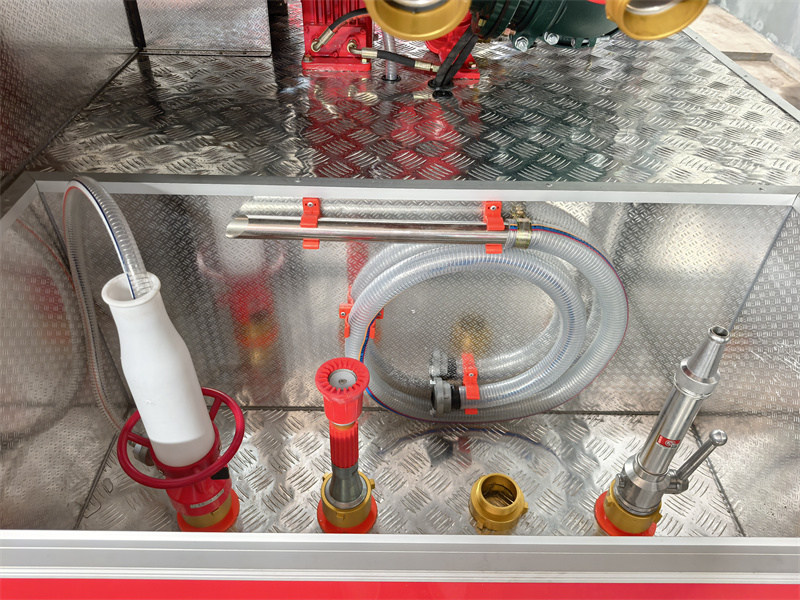

Firefighting Equipment

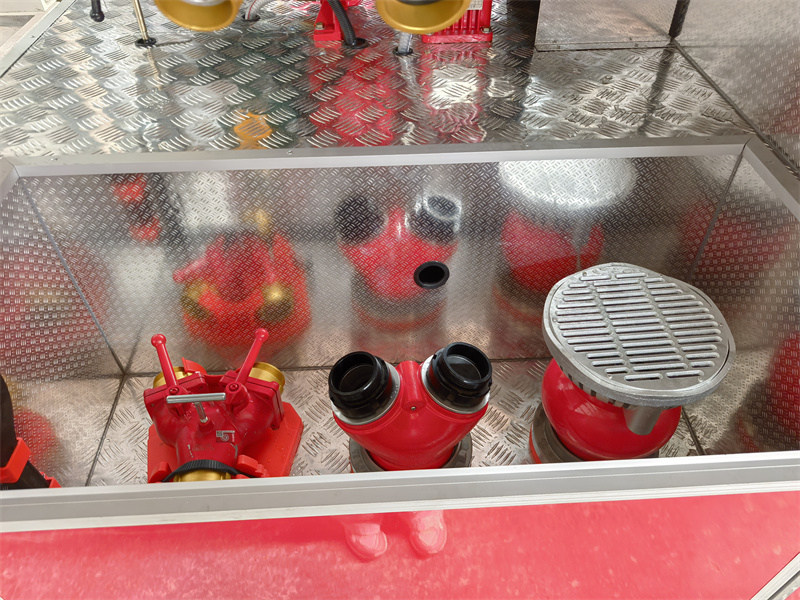

• Firefighting Equipment:



The pump room is equipped with fire hoses, foam guns, reducers, foam suction pipes, water collectors, filters, distributors, and fire hoses.

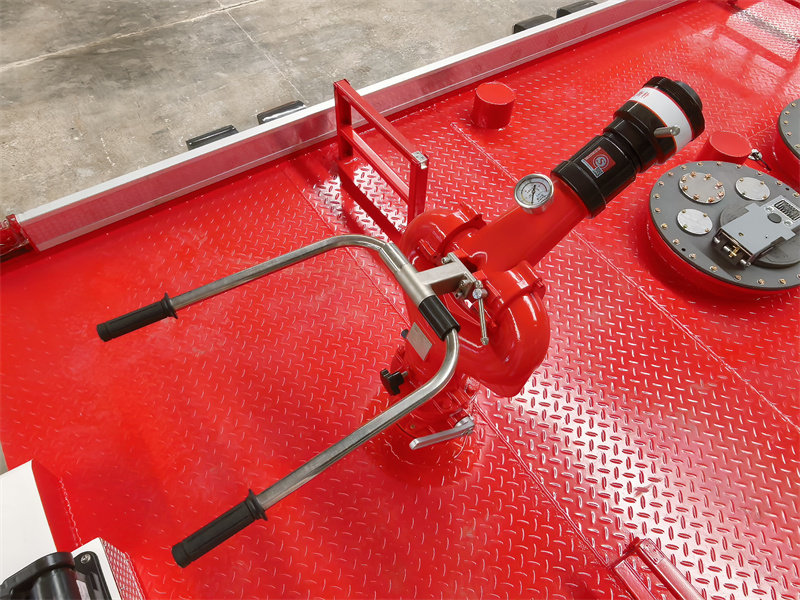

fire monitor

4. Tank-top fire monitor:



Model： PL8/48, flow rate 48L/s, range ≥70m for water, ≥60m for foam, 360° horizontal rotation, -45°~+70° elevation. Suitable for long-distance suppression of large-area fires, striking fire points at heights, and extinguishing fires in dangerous areas inaccessible to personnel. It is the most aggressive output end of the entire vehicle.



» Ⅴ. Testing:

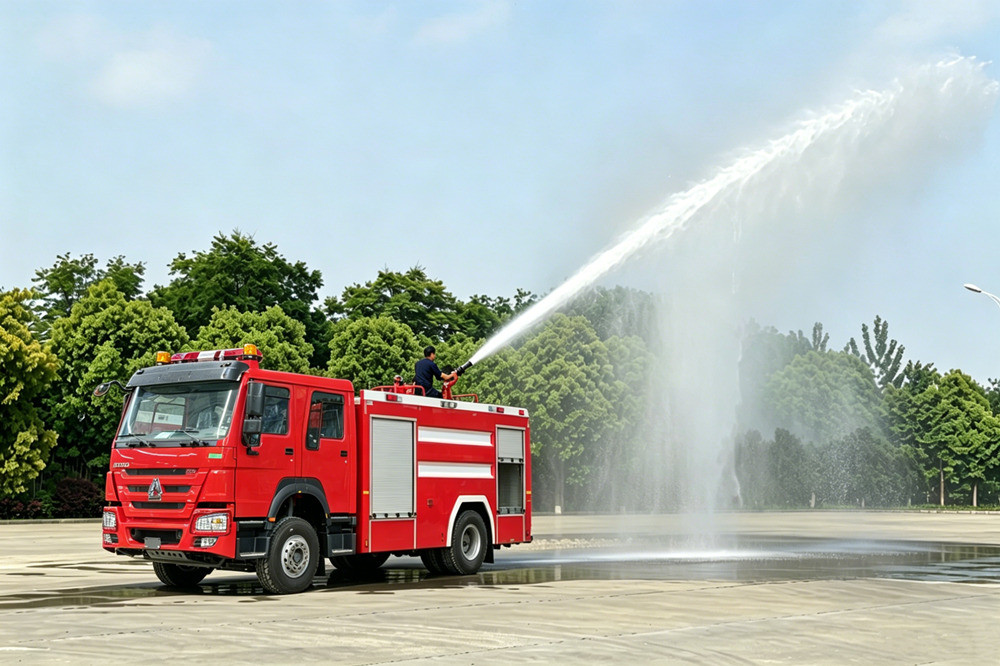

HOWO 4x2 5000 liters foam fire rescue truck



CS trucks 5000 square meters workshop for fire trucks.china best fire truck manufacturer. We are China best fire fighting trucks plant and professional upper structure manufacturer. established in 1983 , we specialized in customized garbage compactor truck, road sweeper truck, sewage tanker trucks, crane truck, fire trucks. and other special purpose vehicles.

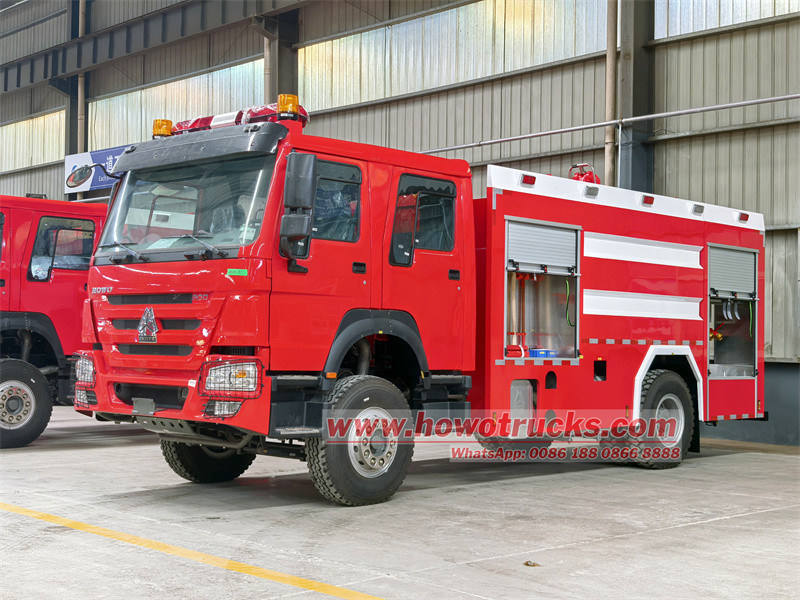

Howo 5 cubic meter foam fire truck
