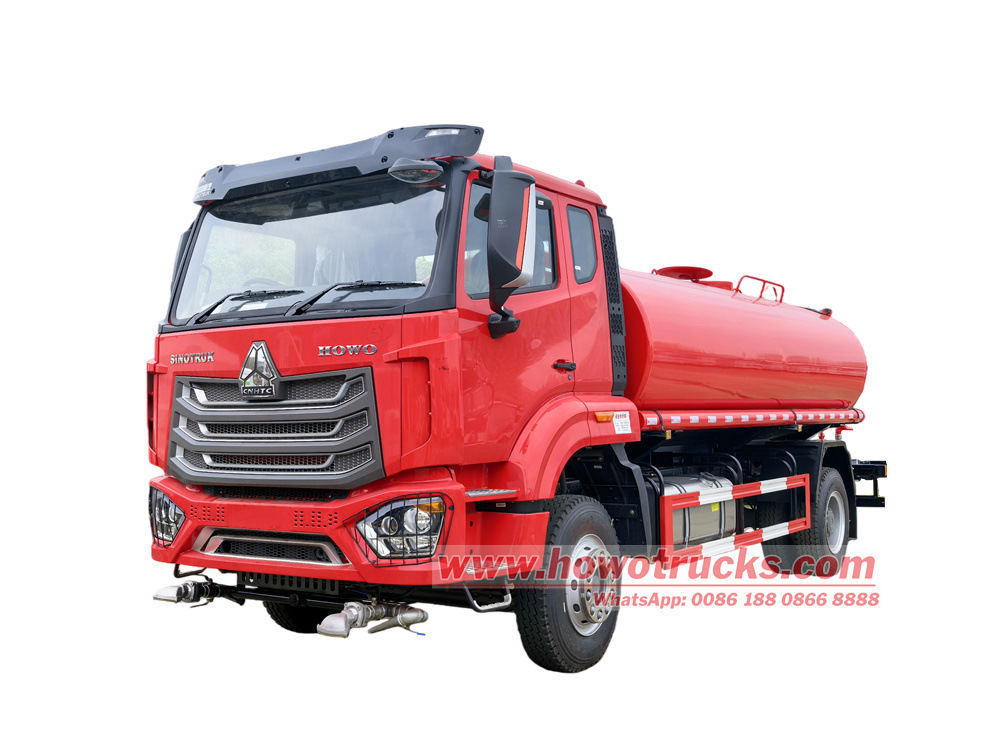

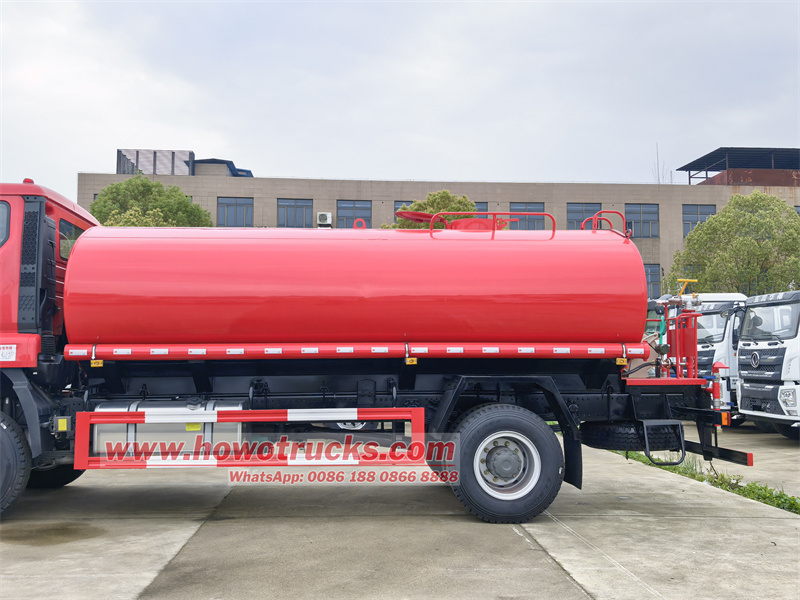

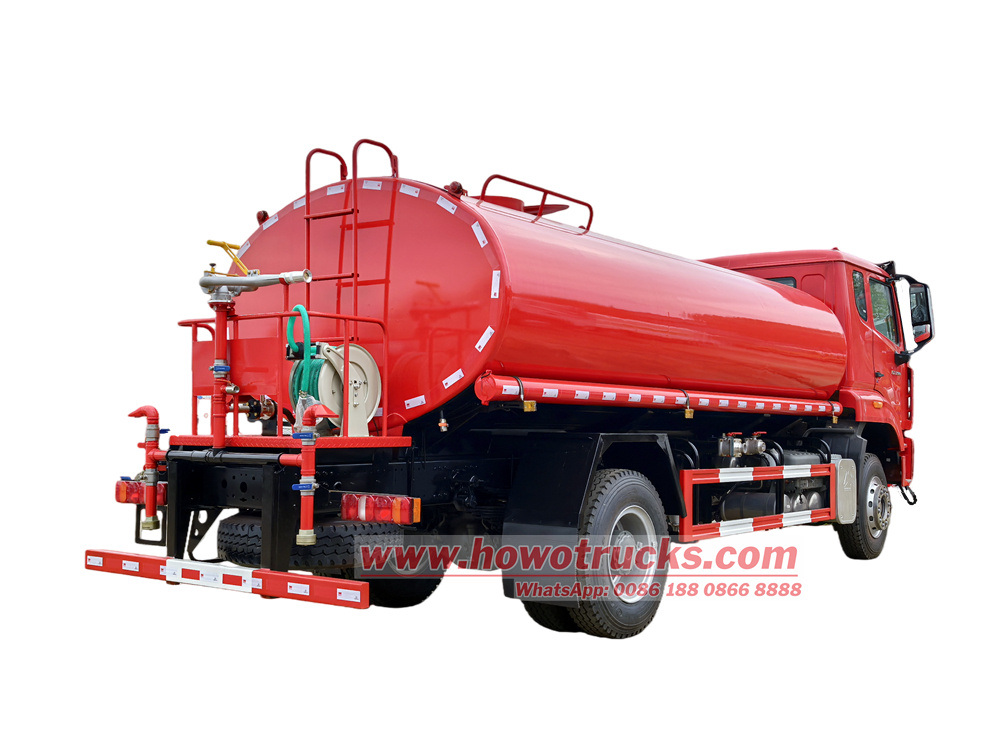

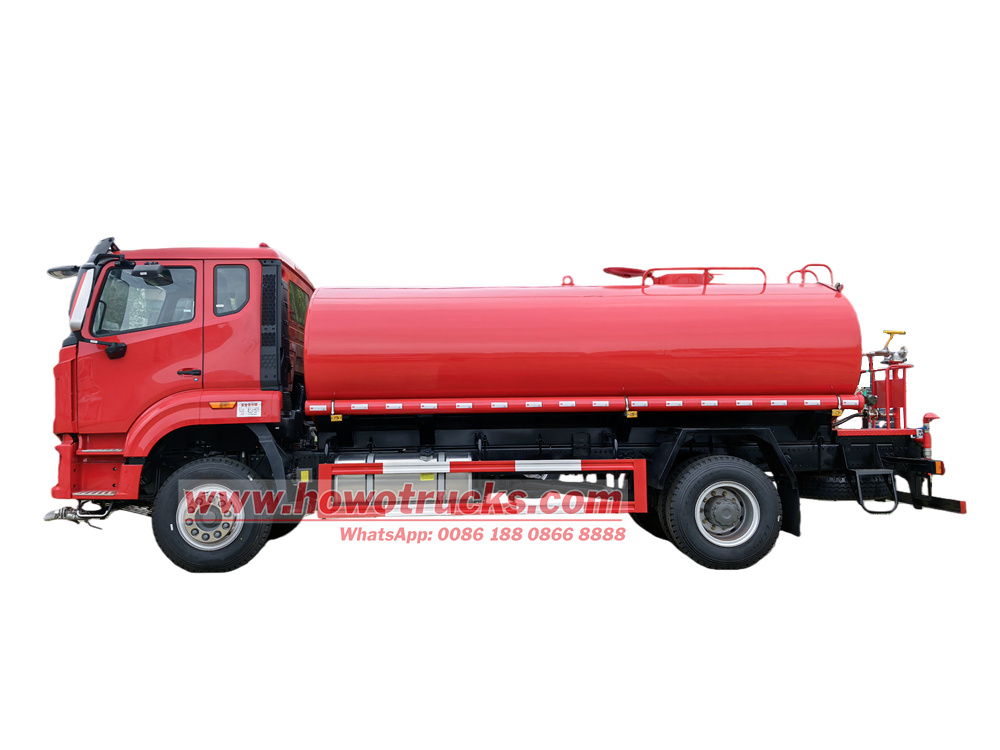

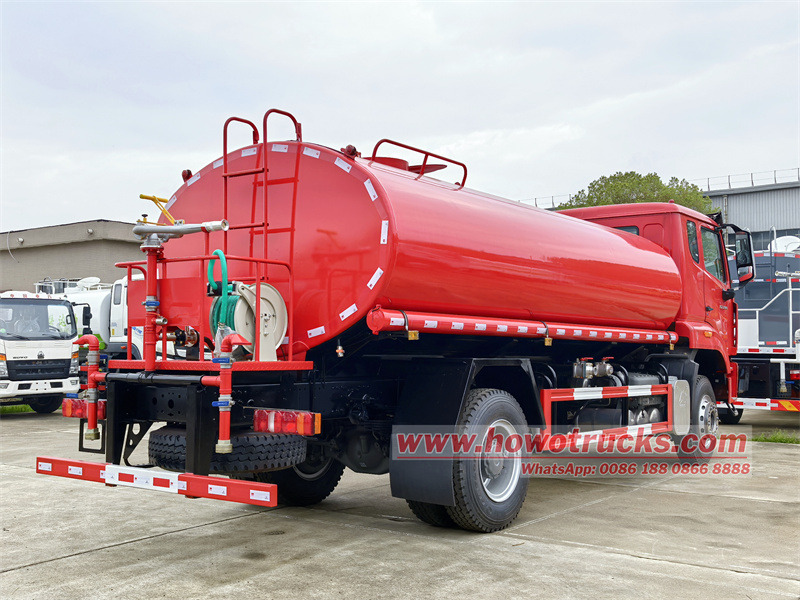

Howo 4x2 drive water delivery tanker bowser

Howo 4x2 drive water delivery tanker bowser
12000 liters Howo water tanker truck
HOWO 4X2 12CBM water sprayer truck

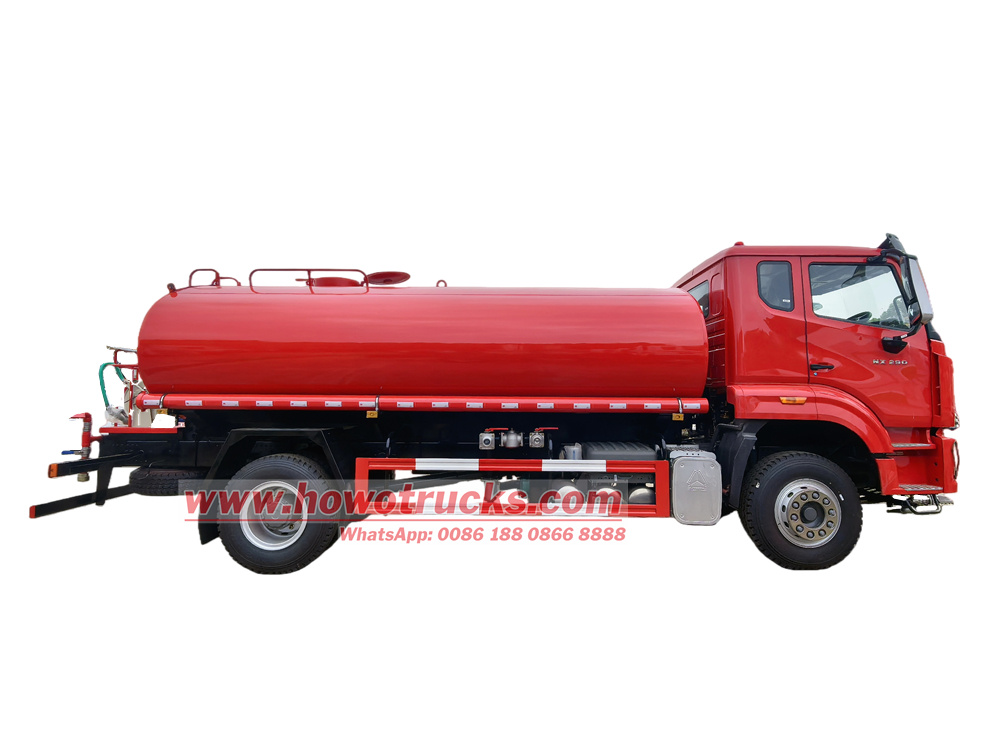

HOWO NX RHD 12000L water sprinkler truck
HOWO 4X2 RHD 12cbm bulk water carrier truck

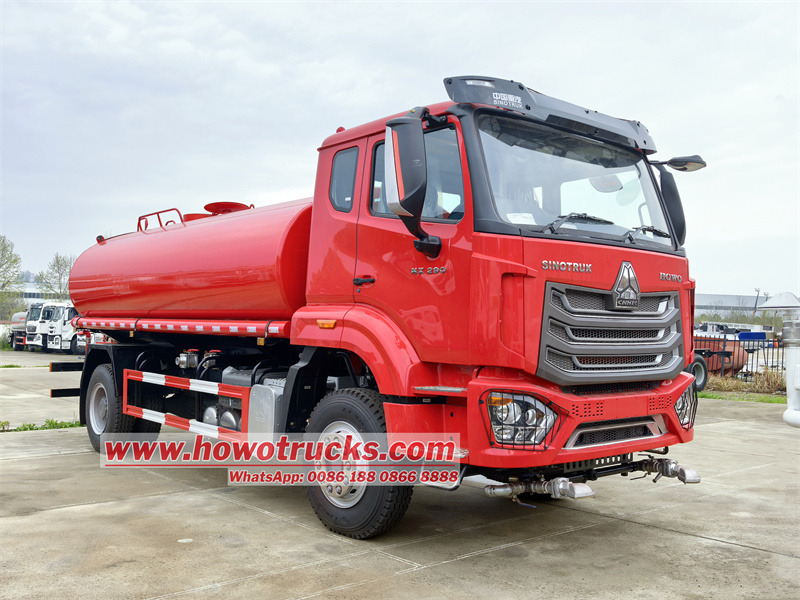

HOWO NX 12cbm water tanker truck
HOWO NX 4x2 12cbm water spraying truck
HOWO RHD 12000L water sprinkling truck
Howo NX water delivery tanker bowser
HOWO 4X2 RHD 12cbm water carrier truck
HOWO NX 12cbm water tanker truck

Howo 4x2 drive water delivery tanker bowser

The Howo 12 cbm water sprinkler truck features a Howo NX right-hand drive cab, a 4500mm wheelbase, a Sinotruk MC07.29-60 engine, an 8-speed gearbox, a 12 cubic meter carbon steel water tank (5mm thick), a Weilong 80QZF-60/90 water pump with a flow rate of 60 m³/h, and is equipped with front spray, rear platform side spray, rear sprinkler, water cannon, hose reel, pump inlet and outlet valves, storage tanks on both sides of the tank, and a ladder.

  • Ishlash qobiliyati :

    12000 liters

  • Idish turi :

    Howo NX one and half row cabin

  • Drayv tizimi :

    4x2,RHD

  • G'ildirak bazasi (mm) :

    4500 mm

  • Dvigatelga xos :

    290 HP / Sinotruk MC07.29-60

  • Vites qutisi :

    Sinotruk 8-speed, manual

  • Old o'q (kg) :

    6500

  • Orqa aks (kg) :

    11500
Hozir so'rang
MAHSULOT TOIFALARI
Yangi mahsulotlar

The Howo 4x2 drive water delivery tanker bowser uses a Sinotruk NX series chassis and is specifically developed for the right-hand drive market. The vehicle is equipped with a Sinotruk high-efficiency powertrain and a 12-cubic-meter large-capacity carbon steel tank, a high-flow water pump, and features front spray, rear side spray, high-pressure water gun, and hose reel. It can be used for road washing, dust suppression, garden irrigation, and emergency firefighting.



*HOWO 12000L RHD Water Tank Truck*

-----------------------------------------------------------------

Howo 4x2 drive water delivery tanker bowser



◆ Product Technological Parameters:

Product name

HOWO NX 12cbm water tanker truck

Vehicle Dimensions, Weights & Capacities

Chassis brand

HOWO NX290

Overall dimension (L*W*H)

7800x2500x3150mm

Wheelbase

4500mm

Curb weight

8970kg

Gross weight

18000kg

Axles loading

6500/11500kg

Chassis

Drive mode

4x2,RHD

Tires specification

10.00R20

Gear box

Sinotruk 8-speed，manual

Engine

Engine model

Sinotruk MC07.29-60

Fuel and engine Type

Diesel, 6 cylinders in-line

Horse power

290 HP/ 213kW

Displacement

6.87L

Max torque

1150N·m

Rated speed

2200rpm

Emission standard

Euro 6

Tops Parameters

Volume of Water Tank

12000 Liters

Tanker material

Carbon steel, Tanker thinckness : 5mm.

Spray

Front and rear side spray nozzle, rear water cannon

The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze

Sprinkling width

≥14m

Water cannon spray width

≥28m

Equipment

Ladder,tool box,side pipe storage, Pump in and out valve

Artesian valve,flter, distribution valve, sprinkler head, with self-suction and discharge function, hose reel.

Water pump

Model

WEILONG 80QZF-60/90 centrifugal pump

Flow rate

60 m3/h

Lift

90 m

Head

6.5 m

Input speed

1180 r/min

Self-priming performance

1.5 min/4m

Equipped power

22.5 kW

HOWO 4X2 12CBM water sprayer truck

◆ Chassis:

• Cab: Howo NX right-hand drive cab.

• Wheelbase: 4500mm.

• Engine: Sinotruk MC07.29-60 China VI emission standard engine. Inline 6-cylinder, 6.87L displacement, 290 horsepower; torque reaches 1150 N·m, with significant low-speed, high-torque characteristics.

• Transmission: Sinotruk 8-speed transmission.



◆ Upper Structure Configuration:



•  Water Tank: 12 cubic meter carbon steel water tank, welded from 5mm thick high-strength steel plate, corrosion-resistant and impact-resistant. Internal baffle design reduces water flow impact, ensuring driving safety.



•  Water Pump: Matched with Weilong 80QZF-60/90 dedicated water pump, with a flow rate of up to 60m³/h, high head and large suction lift, enabling rapid pumping and drainage operations.



•  Piping System: Pump inlet and outlet valve design, supporting self-priming and self-draining functions.

HOWO NX RHD 12000L water sprinkler truck◆ Operating Equipment:

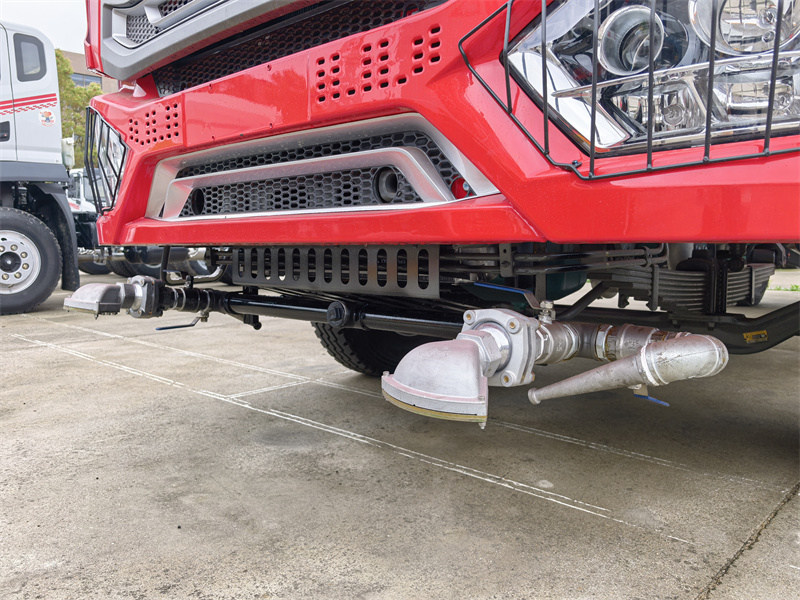

• Front Flushing Device: Dual-nozzle design, spray width up to 14 meters, suitable for rapid road washing and dust suppression.

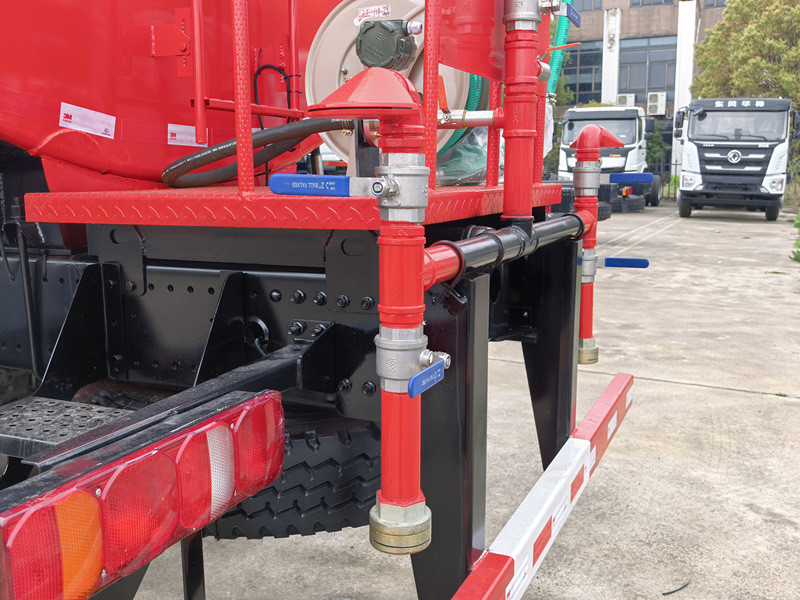

• Rear Platform Side Spray: Duckbill nozzles, suitable for watering roadside green belts, providing a large spray area and dispersed water flow.

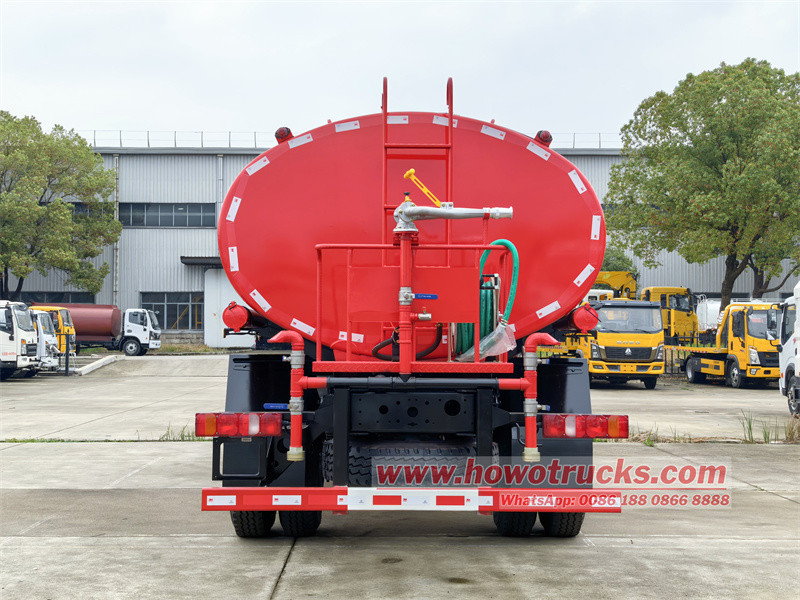

• Rear Platform Rear Sprayer: Primarily used for engineering road surfaces, dust suppression on newly paved roads, and watering maintenance. The operating angle can be adjusted as needed.

  • • Front Flushing Device
  • Rear Platform Side Spray:

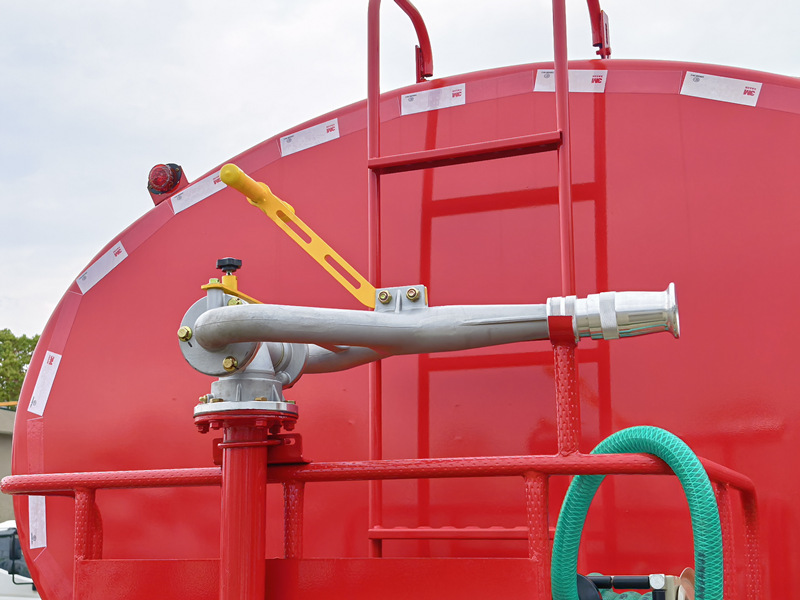

  • water cannon





• High-Pressure Water Cannon: Adjustable to jet, rain, and mist spray patterns, with a spray width exceeding 28 meters. It achieves all the functions of rear and side spraying and can also be used for firefighting.



• Rear Platform Hoist: Suitable for long-distance green belt irrigation and firefighting.

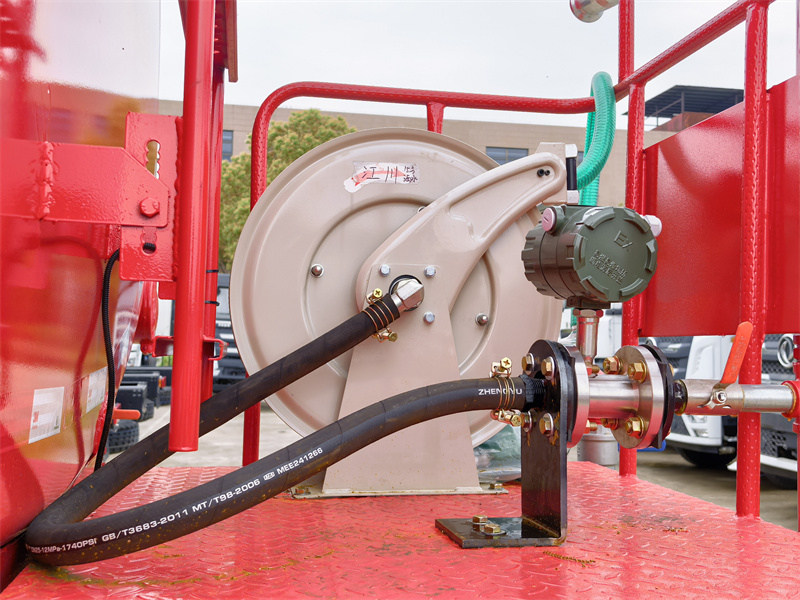

hose reel



◆ Other features:

Include storage boxes on both sides of the tank for storing suction hoses; a rear ladder; a manhole; and safety railings.

Piping Layout Diagram



Piping Layout Diagram



◆ Applicable Scenarios:



1. Municipal Sanitation: Cleaning and watering to suppress dust on urban roads, national highways, and expressways.



2. Construction Sites: Suppressing construction dust and curing concrete.



3. Landscaping: Remotely irrigating green belts using water cannons or side-spraying devices.



4. Emergency Firefighting: Can be used for fire extinguishing.

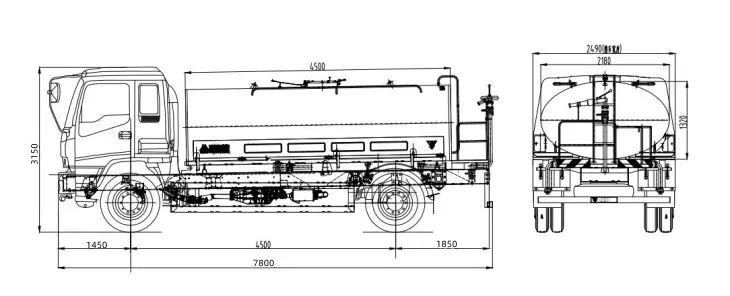

technical drawing of HOWO NX 12cbm water tank truck HOWO NX 12cbm water tank truck
