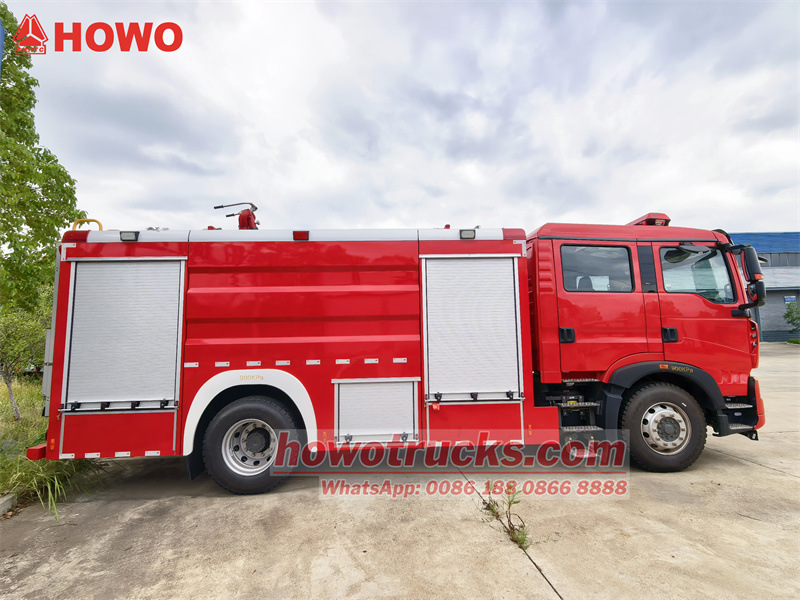

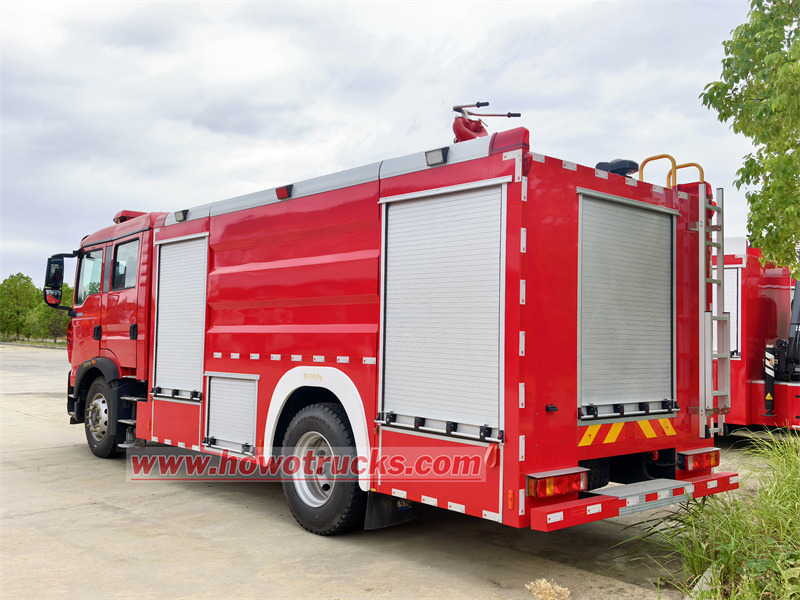

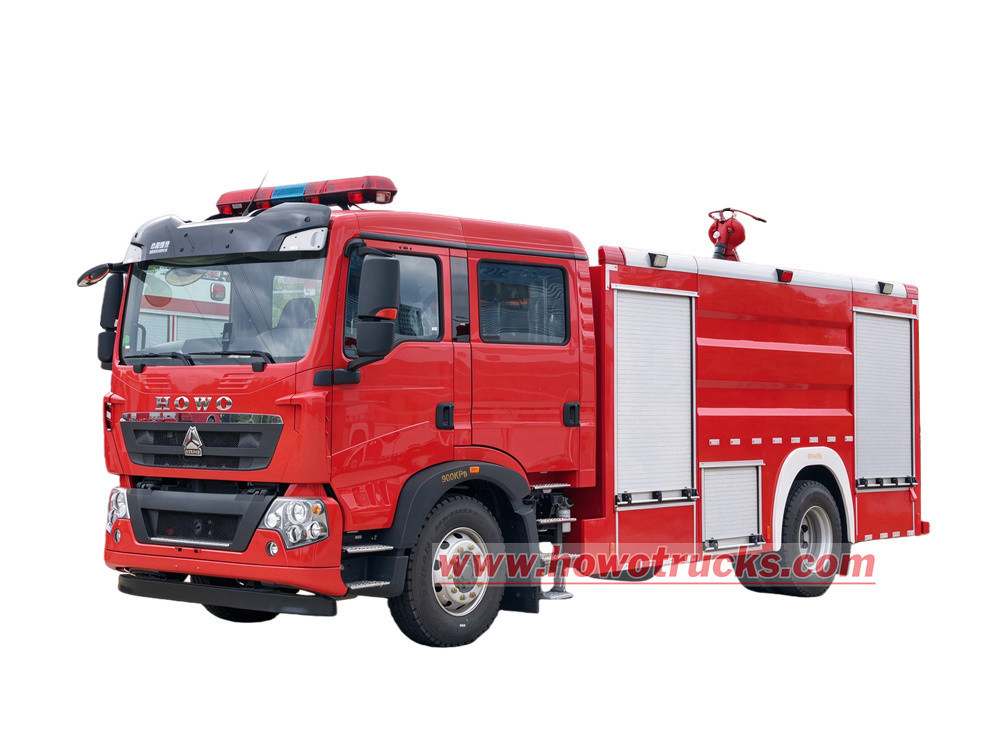

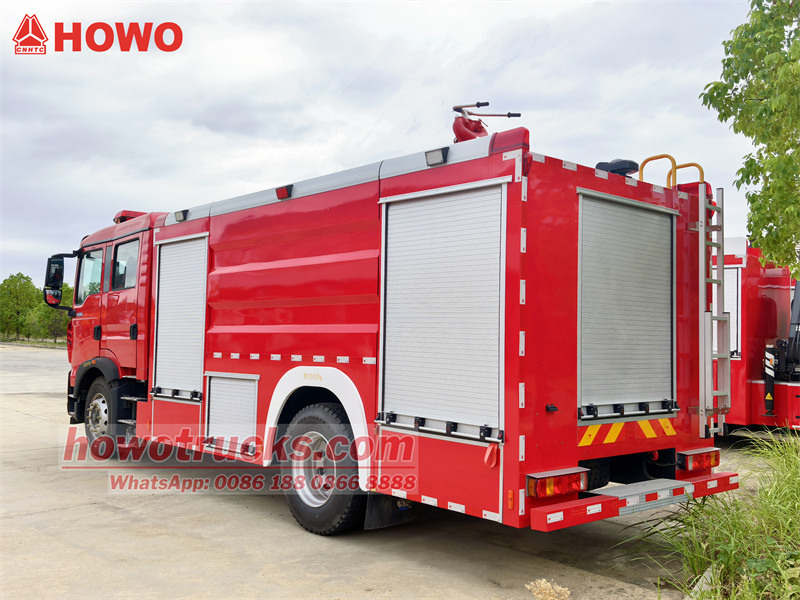

HOWO TX 300HP fire protection truck
The Howo TX300 water-tank fire truck is a highly efficient, primary-response vehicle that integrates transport, firefighting, and rescue capabilities. Its superstructure features a streamlined and practical design: the forward equipment compartment houses a variety of firefighting gear; the central section contains a 6cbm carbon-steel water tank, providing an ample supply of extinguishing agent; and the rear pump compartment is equipped with a CB10/60-RS fire pump and an intelligent monitoring system. The combination of the 6m³ water tank and the CB10/60-RS pump enables a high-pressure water flow of 60L/s. Through the PS8/40W fire monitor or fire hoses, water can be delivered with precision over long distances.
Ishlash qobiliyati :
6000LIdish turi :

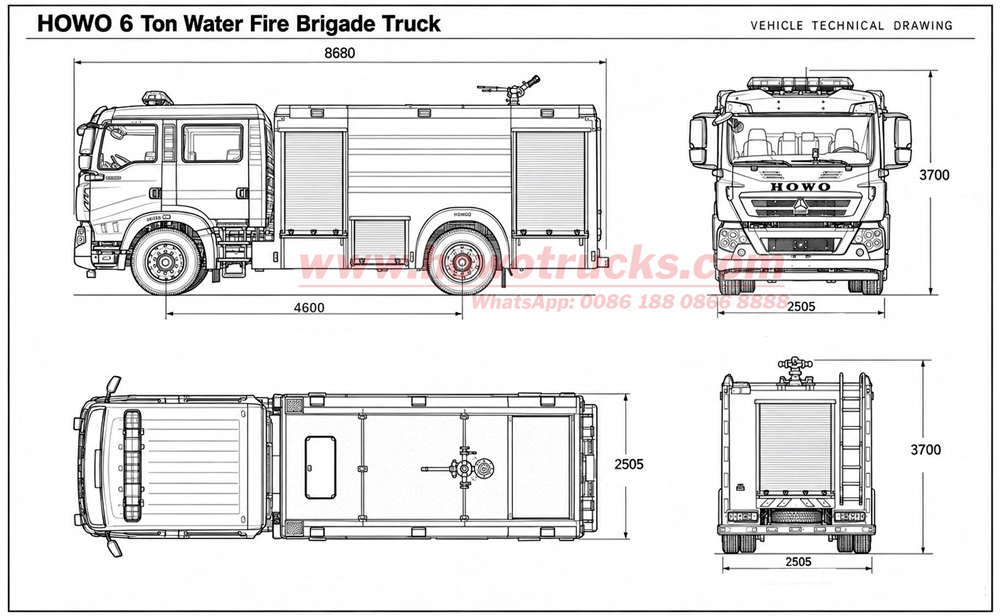

HOWO TX-FOlchamlari (mm) :
8680*2505*3700Drayv tizimi :
4X2G'ildirak bazasi (mm) :
4600Dvigatelga xos :
WP10.300E22/300HPVites qutisi :
HW19709XST，9-speedOld o'q (kg) :
6500Orqa aks (kg) :
11500The HOWO TX 300HP Water Fire protection truck is equipped with a WP10.300E22 engine and an HW19709XST transmission. The superstructure features an equipment compartment at the front for auxiliary firefighting gear, a 6-cubic-meter steel water tank in the middle, and a pump room at the rear. The pump room houses a CB10/60-RS fire pump with a flow rate of 60 L/s, along with a control panel and additional firefighting equipment. A PS8/40W water monitor is mounted on top of the tank. This vehicle is widely used for rapid response and efficient fire suppression in urban high-rise buildings, industrial facilities, and forest environments.
|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
6000L water |
WP10.300E22/ 300HP |
4600 mm |
★Water tank carbon steel ★China famous CB10/60-RS fire pump ★ China famous PS8/40W Fire monitor ★ 2026 year brand new |
▶ Performance Advantages:
1. Rapid Power Response: Equipped with a 300HP engine and a 9-speed transmission, ensuring the vehicle is ready for immediate emergency deployment.
2. High Liquid Capacity: A 6-cubic-meter water tank supports extended, continuous operations, minimizing the need for frequent refilling.
3. Integrated Pump and Monitor System: The CB10/60 fire pump works in tandem with the PS8/40W fire monitor to deliver high-pressure, long-range streams—ideal for incidents such as high-rise building fires or chemical-related blazes.
4. Highly Integrated Equipment: Features organized storage compartments for gear and a centralized control panel in the pump room, significantly reducing preparation time for firefighting operations.
▶ Product Parameters:

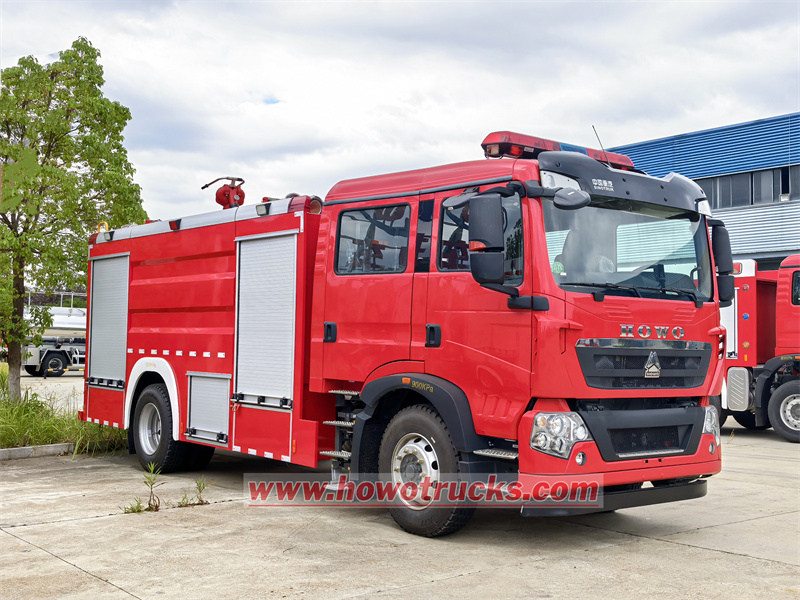

| HOWO TX 6000L foam water fire truck | ||
|
General |
Work capacity |
6000L water tank |
|
Truck chassis |
HOWO TX300，double row |
|
|
Engine Power |
300HP/WP10.300E22 |
|
|
Fire pump |
CB10/60-RS |
|
|
Chassis |
Drive Type |
4X2 |
|
Transmission |
HW19709XST 9-speed, manual |
|
|
Wheelbase |
4600mm |
|
|
Tire |
315/80R22.5 ,6+1 wheel |
|
|
Fire pump |
Model |
CB10/60-RS |
|
Rated Pressure |
1.082 MPa |
|
|
Max allowable inlet pressure |
0.4MPa |
|
|
Flux |
60 L/s |
|
|
Speed ratio |
1:1.542 |
|
|
Max suction height |
7m |
|
|
Rated speed |
3200±50r/min |
|
|
Foam Water Proportioning Mixer |
Model |
PH64-RS |
|
Mixing ratio |
6% |
|
|
Work pressure range |
0.6～1.4MPa |
|
|
Flow range |
16～64L/s |
|
|
Suitable foaming liquid categories |
Category B |
|
|
Fire monitor |
Model |
PS8/40W |
|
Flow |
32L/s |
|
|
Rated working pressure |
0.8MPa |
|
|
Max working pressure |
1.0MPa |
|
|
Water Range |
≥65 m |
|
|
Pitch rotation |
- 30～+70° |
|
|
Horizontal rotation |
0～360° |
|
|
Suction tube |
125*2m,4pic |
|
|
Standard configuration |
All standard accessories: Fire hose, filter, coupling, wrench, water gun, basic tool kit, English manual…… |
|

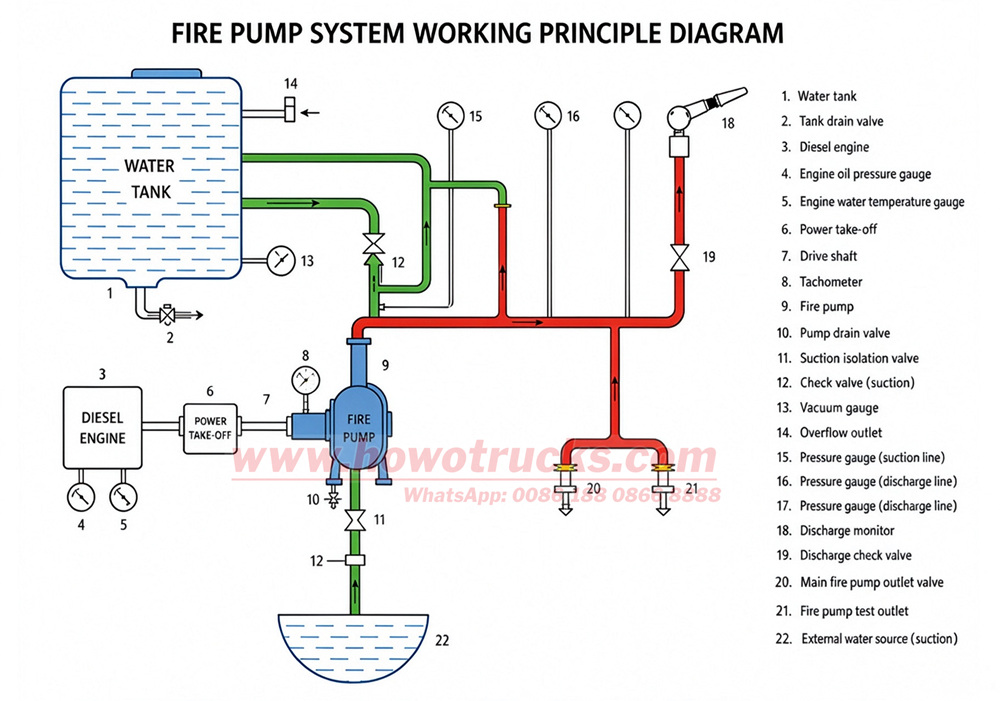

▶ Fire-Extinguishing Principles:
The core fire-extinguishing mechanism of this Howo 4x2 water-tank fire truck centers on "water supply and high-pressure discharge." The vehicle is equipped with a large-capacity 6-cubic-meter water tank that serves as a reservoir for the extinguishing agent. During firefighting operations, a CB10/60 fire pump—driven by the chassis engine via a PTO driveshaft—draws water from the tank and pressurizes it. The pressurized water is then discharged at a flow rate of 60 L/s through fire hoses or a PS8/40W fire monitor. In "straight-stream" mode, the water is concentrated on the base of the fire to rapidly lower the temperature below the ignition point; in "spray" (fog/cone) mode, the coverage area of the water mist is expanded, utilizing heat absorption through evaporation and a smothering effect to cut off the oxygen supply. A control panel in the pump compartment allows for the monitoring of various parameters, enabling timely adjustments during operation.
▶ Chassis System:

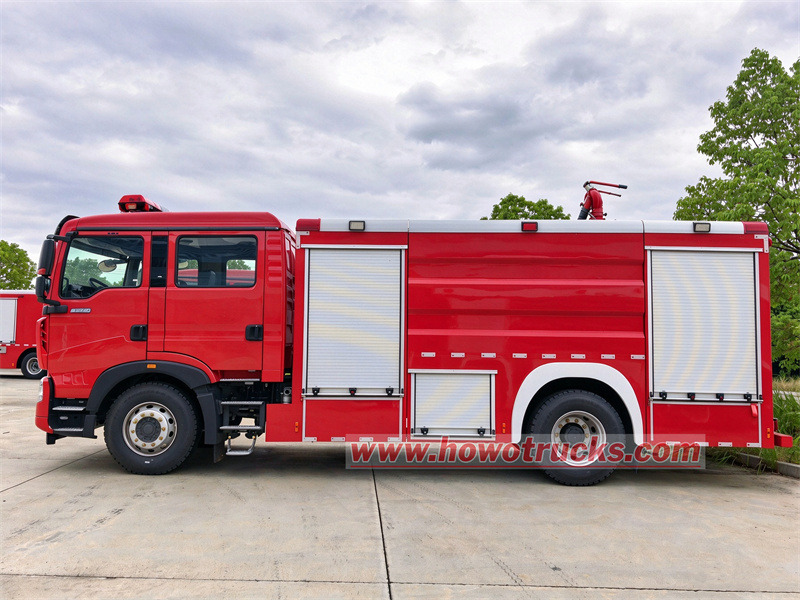

• Chassis Model: Howo TX 4x2, double-row cab, 4600mm wheelbase
• Engine: WP10.300E22, 300 hp, high-pressure common-rail, turbocharged, intercooled diesel engine; 9.726L displacement; features high power output and low fuel consumption.
• Transmission: HW19709XST transmission, with a maximum input torque of 1900 N·m; offers precise gear shifting and a wide gear ratio range, suitable for various driving conditions.
▶ Superstructure:
1. Equipment Compartment (Front)
o Function: Centralized storage for auxiliary firefighting equipment, designed for quick and easy access.
2. Tank (Middle)
o Material and Capacity: 6m³ carbon steel water tank, treated with an anti-corrosion coating.
o Internal Baffles: Designed to minimize liquid sloshing.
3. Pump Room (Rear)
o Core Equipment: CB10/60-RS fire pump.

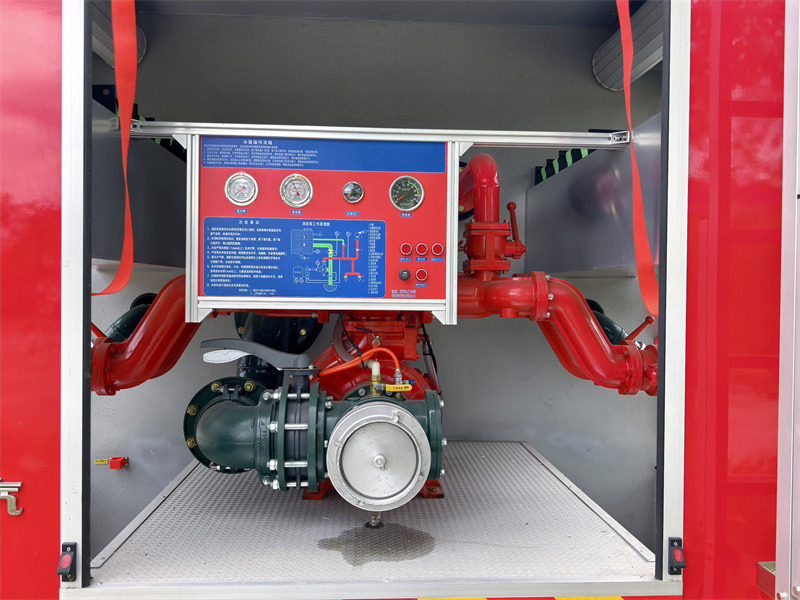

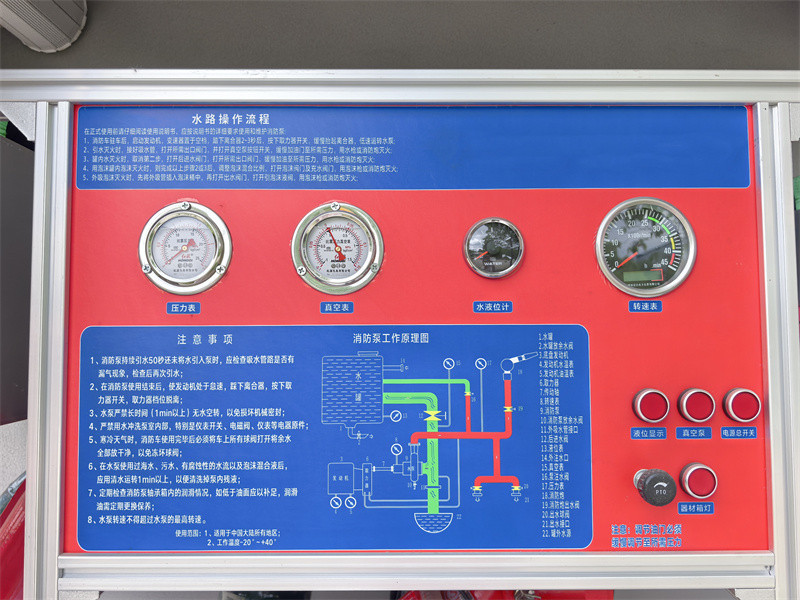

o Control Panel: Includes operating instructions, piping schematics, a pump tachometer, pressure gauges (for atmospheric and vacuum pressure), a water level indicator, lighting, an emergency stop switch, a main power switch, and other controls.
o Ancillary Equipment: Water collectors/dividers, strainers, fire hoses, etc.
▶ Fire pump and monitor:

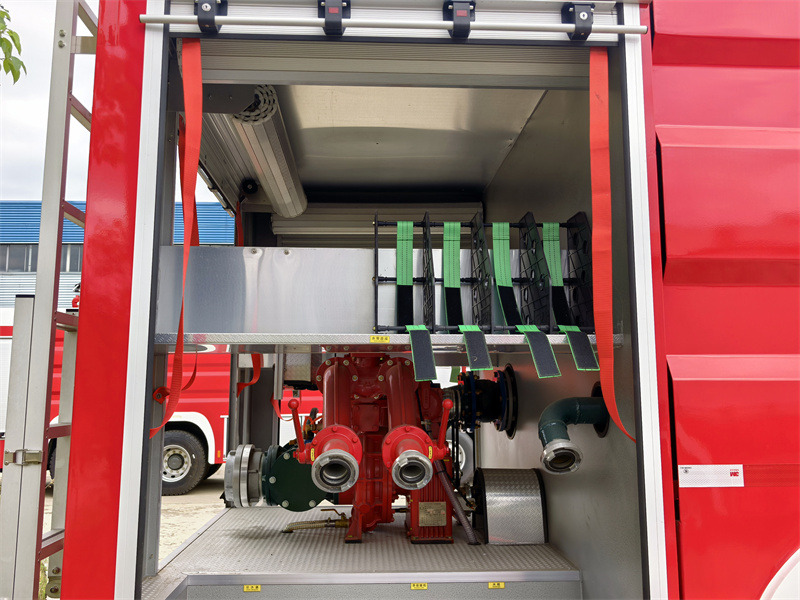

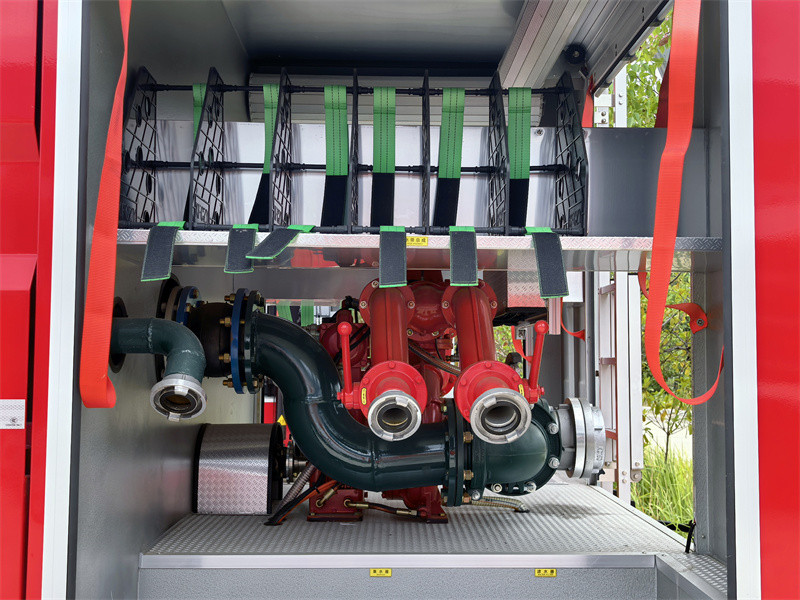

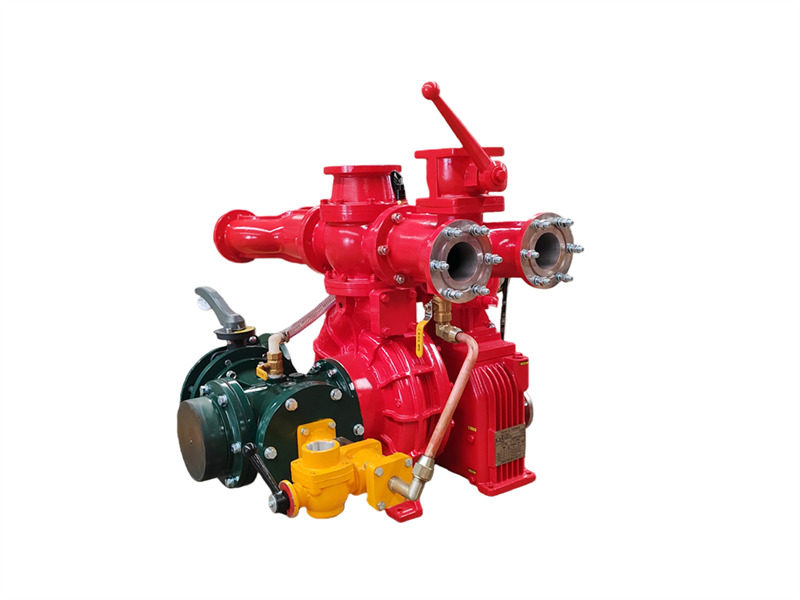

CB10/60-RS fire pump:
|
CB10/60-RS |
Work condition |
Flow(L/s) |
Pressure(MPa) |
Speed(rpm) |
Power（Kw） |
Suction depth（m） |
|
1 |
60 |
1.0 |
3200±50 |
99.71 |
3 |
|
|
2 |
42 |
1.3 |
3528±50 |
109.18 |
||
|
3 |
30 |
1.0 |
3326±50 |
|
7 |

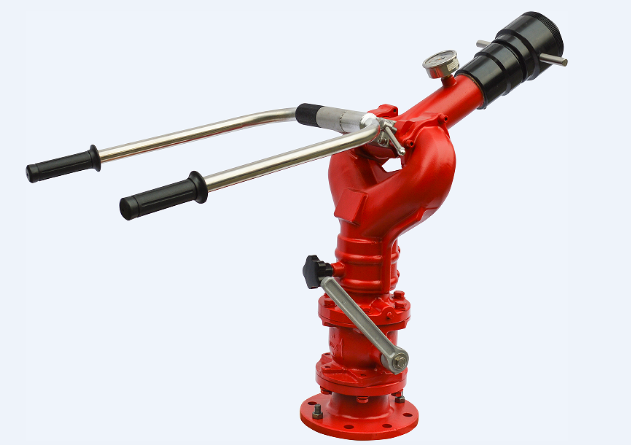

PS8/40W water fire monitor：
|
Fire Monitor Model |
Flow |
Range |
Rated Pressure |
Pitch Rotation |
Horizontal rotation |
Weight |
|
PS8/30W |
30L/s |
Water ≥60m |
0.80MPa |
-30°～+70° |
0～360° |
22kg |
▶ Piping System:
Tank pipeline material: Seamless steel pipes, connected to all components via flanges.
Tank outlet pipeline: Equipped with one DN125 tank outlet pipeline for water delivery from the tank to the fire pump. Fitted with one DN125 manual butterfly valve; the water tank and fire pump are connected through a DN125 flexible joint.
External suction pipeline: One DN125 external suction inlet is arranged at the rear of the fire pump for connecting a 125mm suction hose with a camlock coupling.
Tank filling pipeline: One DN65 filling port is provided on each of the left and right sides of the tank.
Discharge pipeline: The fire pump is equipped with one DN80 and one DN65 atmospheric discharge outlet on each side (left & right).
Drain pipeline: A drain valve is installed at the lowest point of the piping circuit to protect the fire pump and ball valves.
Cooling water pipeline: A cooling water circuit with ball valve is fitted to ensure the power take-off (PTO) operates reliably under complex working conditions.
