Uy Howo kran yuk mashinasi Howo Boom Crane yuk mashinasi

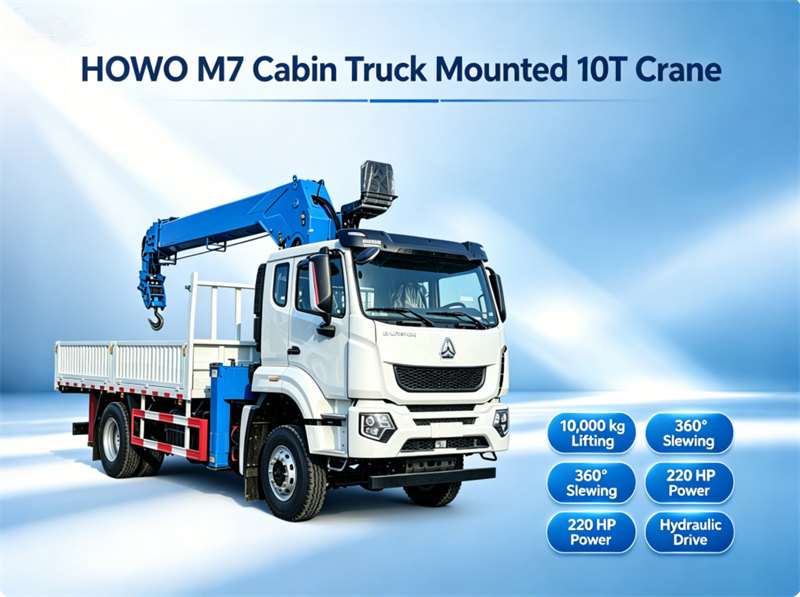

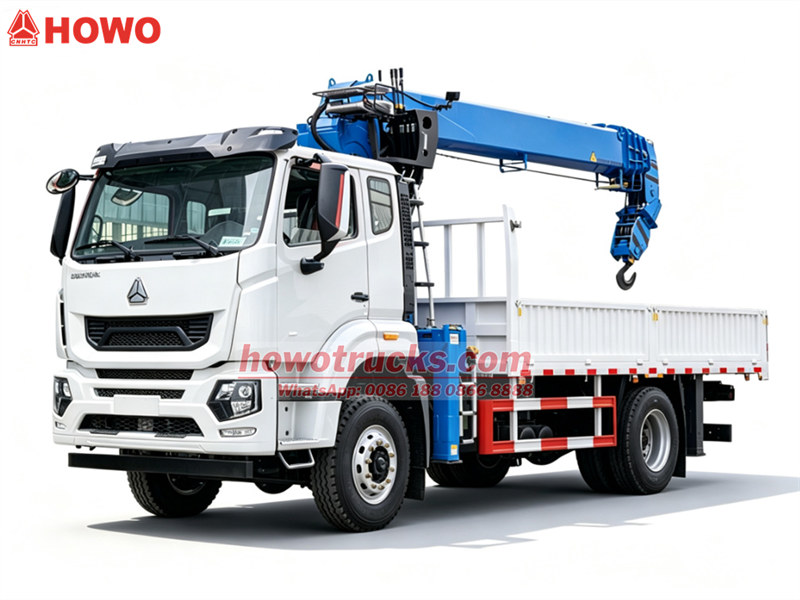

HOWO M7 cabin truck mounted 10tons crane

HOWO M7 cabin truck mounted 10T crane
HOWO M7 cabin 4x2 truck mounted 10T crane
HOWO M7 cabin cargo truck mounted 10T crane
HOWO M7 cabin truck mounted 10T telescopic crane
HOWO M7 cabin 220HP truck mounted 10T crane
HOWO M7 cabin 10T crane lorry truck
HOWO 220HP M7 cabin 10T crane lorry truck
HOWO 4x2 M7 cabin 10T crane lorry truck
HOWO M7 cabin 10T crane cargo truck
HOWO M7 cabin 200HP 10T crane cargo truck

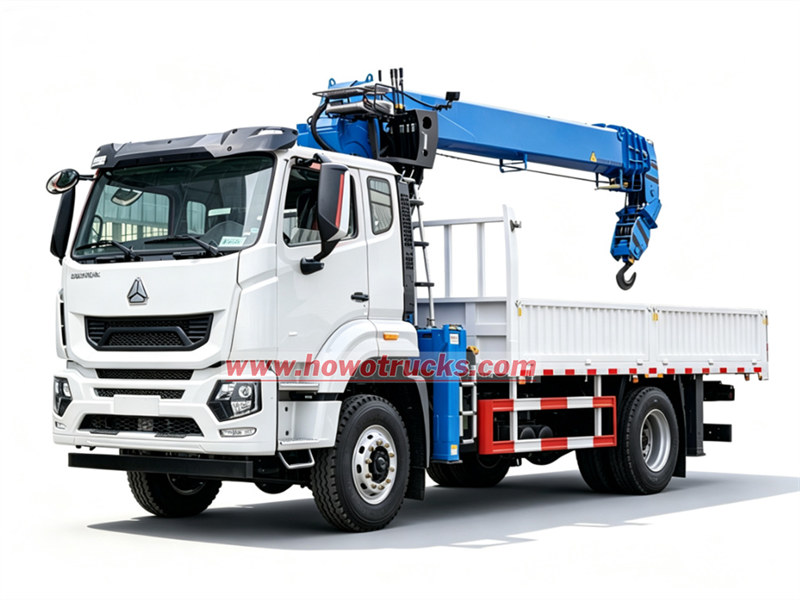

HOWO M7 cabin truck mounted 10tons crane

The HOWO M7 cabin truck mounted 10tons crane comes fitted with a powerful 220 HP Yuchai diesel engine, delivering ample output to tackle all kinds of heavy duty operations. The spacious 3 seater cab is equipped with integrated heating and air conditioning, ensuring a comfortable ride for operators during long shifts. Mounted on the HOWO heavy duty chassis is a 4 section telescopic crane boom boasting a maximum lifting capacity of 10,000 kg and full 360° unrestricted slewing.

  • Ishlash qobiliyati :

    10 tons

  • Idish turi :

    M7 single cabin, with one sleeper

  • Drayv tizimi :

    4x2

  • G'ildirak bazasi (mm) :

    4600

  • Dvigatelga xos :

    YC6J220-33

  • Vites qutisi :

    8JS85TE,8 forwards & 2 reverses

  • Old o'q (kg) :

    7500

  • Orqa aks (kg) :

    13000
Hozir so'rang
MAHSULOT TOIFALARI
Yangi mahsulotlar

The HOWO M7 cabin truck mounted 10tons crane comes fitted with a powerful 220 HP Yuchai diesel engine, delivering ample output to tackle all kinds of heavy duty operations. The spacious 3 seater cab is equipped with integrated heating and air conditioning, ensuring a comfortable ride for operators during long shifts. Mounted on the HOWO heavy duty chassis is a 4 section telescopic crane boom boasting a maximum lifting capacity of 10,000 kg and full 360° unrestricted slewing.

This crane unit weighs 4,100 kg with a 950 mm mounting footprint. Its control panel supports English and multilingual interface options for seamless global operation. We also offer extensive customizable add-ons to match your job requirements: alternative telescopic crane configurations, hydraulic tipping cargo boxes, tailor-made cargo box wall thickness & height, plus wireless remote control kits as an optional upgrade.

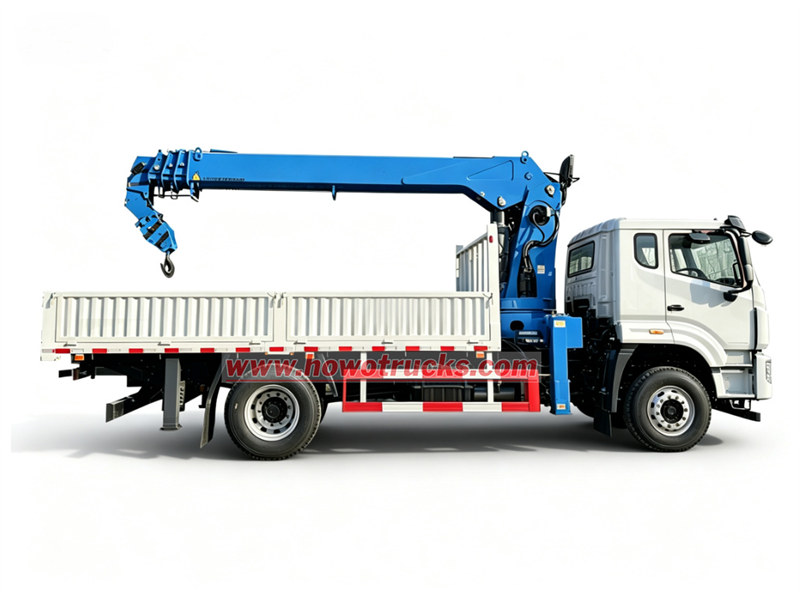

HOWO M7 cabin truck mounted 10tons crane

( HOWO 4x2 Heavy Cargo Truck 10T Crane )



✦Ⅰ.Product Definition and Introduction « « «

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4x4 model

                              YC model with 220HP and Euro 2,3



2. Cargo material: 6mm thick high-quality steel for prolonged service lier
                               carbon steel, aluminum alloy or stainless steel can be choose.



3. Crane Brand: XCMG, Palfinger, HIAB, Chusheng, etc.




4.  Optional design: such as kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.



HOWO M7 cabin truck mounted 10tons crane



✦ Ⅱ.Product Parameter For HOWO 10T Crane Boom Truck  « « «



HOWO M7 cabin truck mounted 10tons crane

Best Choice,HOWO Trucks

⇓ ⇓ ⇓



HOWO 4×2 Telescopic Boom Crane Truck

Vehicle model

CSC51803SCD

Overall dimensions (mm)

7600×2580×3350

GVW (kg)

18000

Operational height (m)

16.5m

Curb weight(kg)

8600

Max. Speed (km/h)

95

Chassis Description

Chassis Brand

HOWO light chassis

Cab

Single cab with A/C

Allowable person in cab

3

Wheel base (mm)

4600

Number of axles

2

Axle

Front axle (kg)

7500

Rear axle (kg)

13000

Traction system

4*2

Operation control system

Power steering

Braking system

Air brake

Transmission

8JS85TE 8-speed

Tire specification

11.00R20

Tire quantity

6+1

Engine Description

Engine manufacture

Yuchai

Engine model

YC6J220-33

Emission standard

Euro 3

Exhaust/output

6.5 L/ 162 kw

Horse power

220 HP

Upper Body Description

Max. working height (m)

16.5

Max. working radius (m)

14.5

Working pressure (Mpa)

25

Crane Type

Telescopic boom crane

Max Lifting Capacity

10000 kg

Slewing Angle

360° All rotation

Crane Weight

4100 kg

Installation Space

950 mm

Rotation Angle

360° Hydraulic

Control panel

English or Your language

Cargo Box Dimension

4300*2500*500 mm

Cargo Box Material

Q235 High-level Steel

Optional

 Knuckle boom crane

 Hydraulic tipper box

 Box thickness according to requirement

Box height could be nominated

Remote Control Box optional



HOWO 4×2 Telescopic Boom Crane Truck

✦ Ⅲ.Mian Part For Crane Boom « « «


  • ♦ Core components: Multi-section boom, telescopic hydraulic cylinder, wire rope sets, counterbalance valves
  • ♦ Boom construction: 4-section pentagonal frame welded from high-strength low-alloy steel
  • ♦ Special nylon wear pads fitted at both ends of every boom section, providing structural support and drastically reducing sliding friction
  • ♦ Telescopic driving logic: Driven jointly by hydraulic cylinder and wire rope linkage
    • ♦ Cylinder piston rod hinged to base boom; cylinder barrel connected to 2nd boom section
    • ♦ Direct cylinder stroke moves the 2nd boom; synchronized wire rope sets drive the 3rd & 4th boom sections to extend/retract in unison

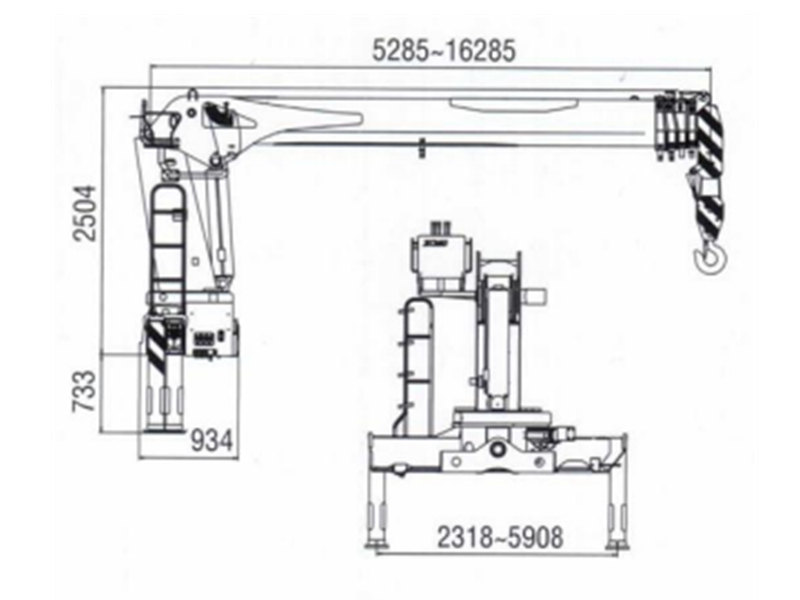

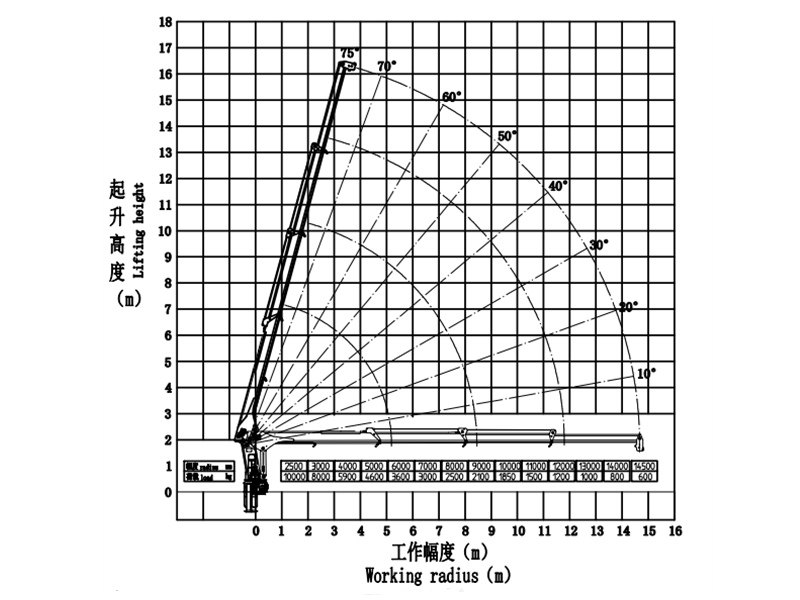

HOWO M7 10tons crane lorry truck

HOWO M7 10tons crane lorry truck


Item

Sub-item

Parameter Value

Crane Model

—

CSC300-3

Max Lifting Moment / Radius

Unit: kN·m/m

250 / 2.5

Rated Max Lifting Capacity / Radius

Unit: kg/m

10000 / 2.5

Crane Dead Weight

Unit: kg

4100

Boom

Boom Type

Pentagonal box structure, hydraulic synchronous telescoping

Boom Sections

4 sections

Boom Length Range

4.51 ~ 14.53 m

Full Extension Time

20 ~ 25 s

Full Retraction Time

7 ~ 15 s

Luffing Angle Range

0 ~ 75 °

Max Lifting Height

16.5 m

Max Working Radius

14.5 m

Winch Mechanism

Single Rope Tension

2100 kg

Steel Wire Rope Model

12NAT6×37+FC1770ZS

Slewing Mechanism

Slewing Range

360° full rotation

Slewing Speed

≤ 1.64 r/min

Outrigger

Outrigger Structure

Front & rear H-type outriggers; movable and vertical outriggers fully hydraulically driven

Outrigger Span (Unit: mm) – Front Outrigger

2500 ~ 5900

Outrigger Span (Unit: mm) – Auxiliary Outrigger

2480 ~ 5370

Hydraulic Tank Capacity

Unit: L

140

Relief Valve Setting Pressure

Unit: MPa

25

Safety Devices

—

Lifting capacity curve chart, load indicator nameplate, relief valve, counterbalance valve, outrigger hydraulic lock, hook safety baffle, etc.

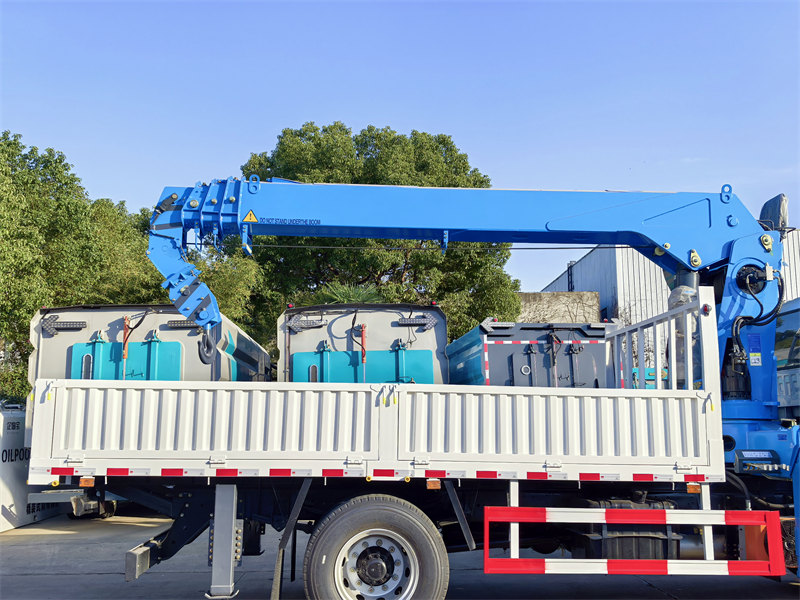

HOWO M7 10tons crane lorry truck


✦ Ⅳ.Deatails For HOWO M7Crane Boom Truck  « « «

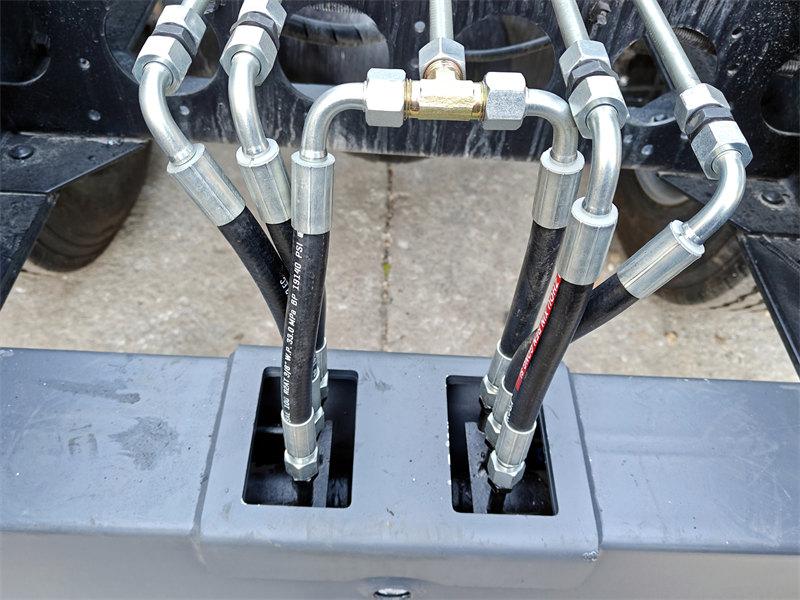

1.Hydraulic System：

  • ♦ Full hydraulic power drive for all crane functions: hoisting, luffing, boom telescoping, slewing, and outrigger vertical/horizontal travel.
  • ♦ High-pressure oil delivered from hydraulic pump is distributed through control valves to corresponding hydraulic motors and cylinders to execute all lifting movements.
  • ♦ Pilot-operated check valves integrated in lower valve bank lock pressure inside rod-side chambers of horizontal outrigger cylinders, preventing accidental outrigger extension during transit and safeguarding driving safety.

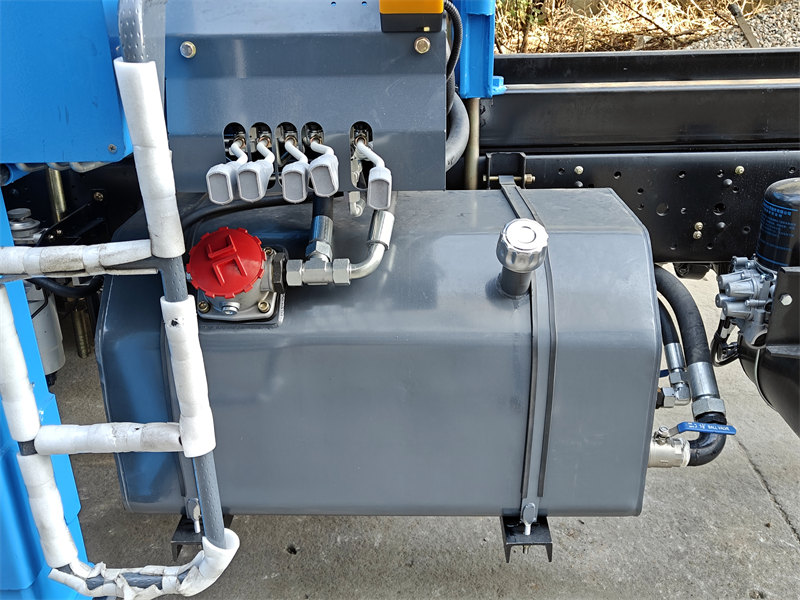

HOWO M7 10tons crane truck

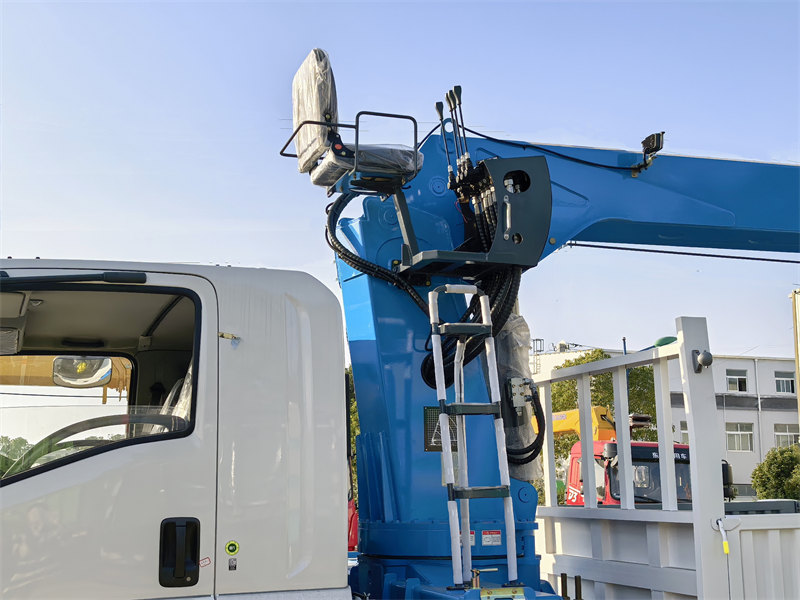

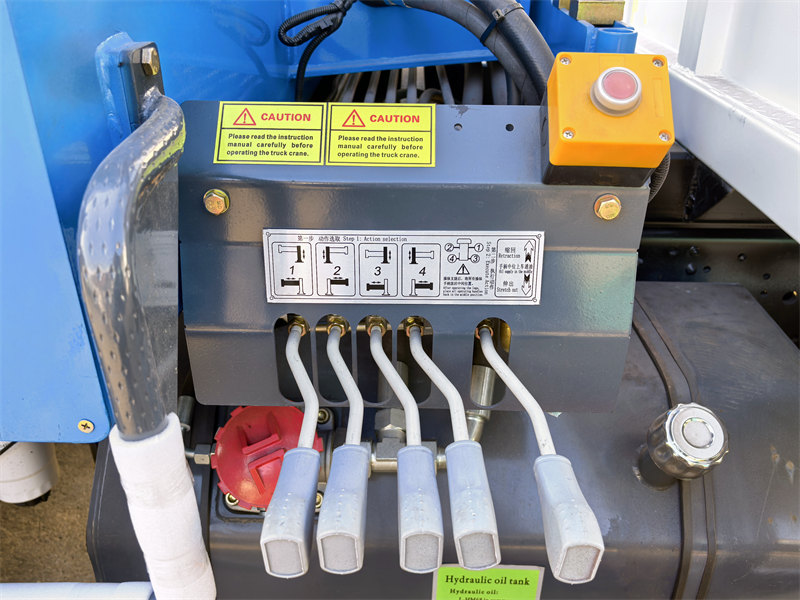

2.Control Assembly：



  • ♦ The control valve assembly adopts stackable directional control valves, split into upper control valve bank and lower control valve bank.
    • ♦ Upper valve bank: Consists of 4 monoblock directional valves + 1 relief valve
    • ♦ Lower valve bank: Consists of 1 monoblock directional valve, 4 monoblock selector valves + 1 relief valve
  • ♦ Upper control valve independently controls 4 crane movements: hoisting, luffing, boom extension/retraction, and slewing
  • ♦ Lower control valve manages horizontal extension & vertical lifting of outriggers
  • ♦ All crane movements operate without interlock, enabling simultaneous multi-function operation for higher working efficiency
  • ♦ Dual-side manipulation is available via connecting linkage mechanisms



  • HOWO M7 10tons crane truck
  • HOWO M7 10tons crane truck
  • HOWO M7 10tons crane truck

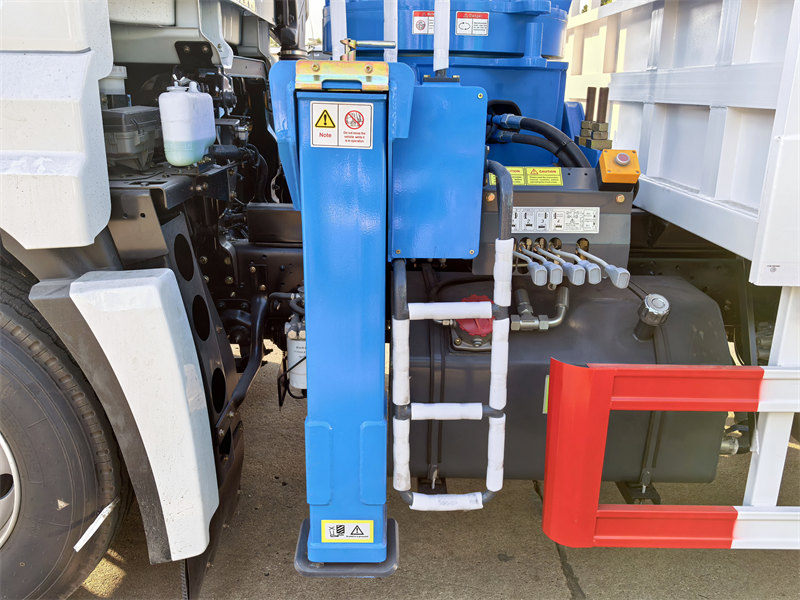

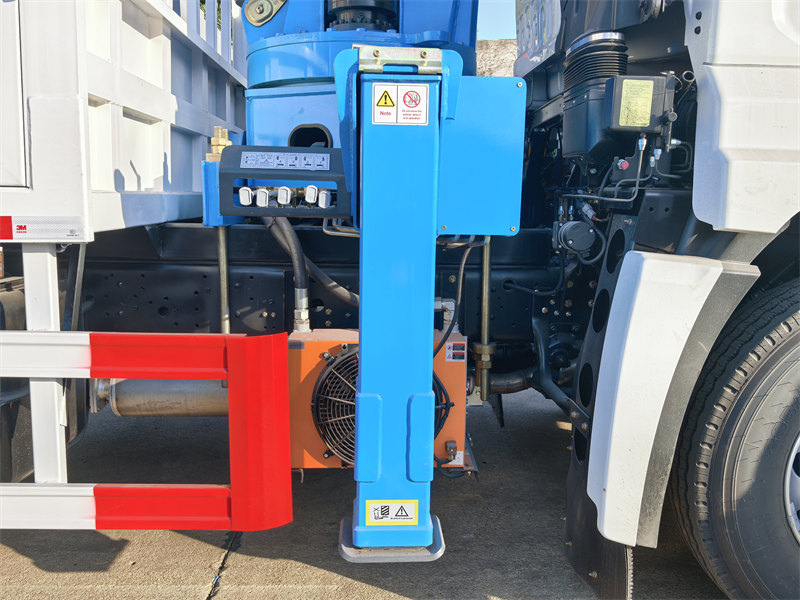

3.Frame & Outrigger Assembly:

  • ♦ The crane base frame is securely bolted to the truck chassis main beam
  • ♦ Equipped with a pair of H-type outriggers: front outriggers mounted inside the main frame; auxiliary rear outriggers installed at the tail of truck chassis
  • ♦ Horizontal outrigger stretch/contraction powered by horizontal hydraulic cylinders; vertical jacking of outrigger foot pads controlled by vertical cylinders

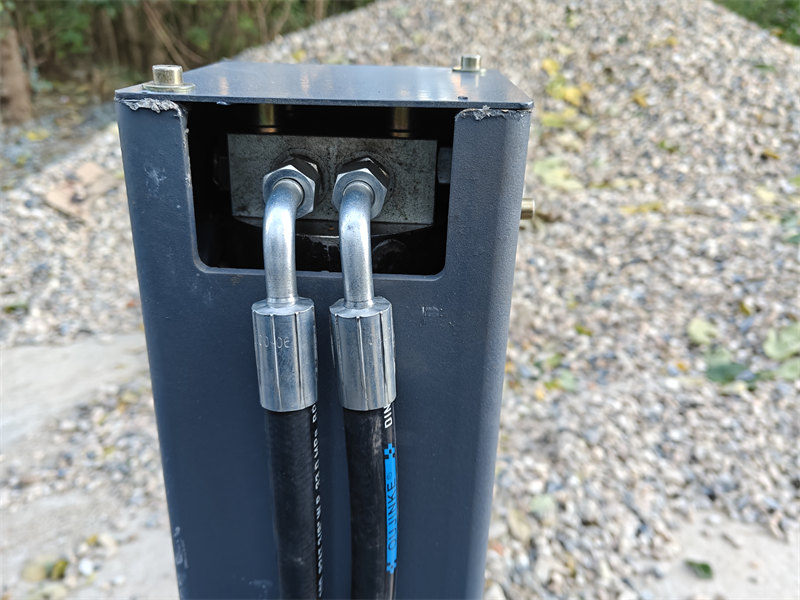

  • ♦ Hydraulic locks fitted on all vertical outrigger cylinders to stop piston rods from slipping out during vehicle travel



  • HOWO M7 10tons crane lorry truck
  • HOWO M7 10tons crane lorry truck
  • HOWO M7 10tons crane lorry truck



⇒ Products--100% Customized Level One!
⇒ Transportation--100% Safety, Convenience, Efficient!
⇒ Services--7days + 24hours Safetify Service!


»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

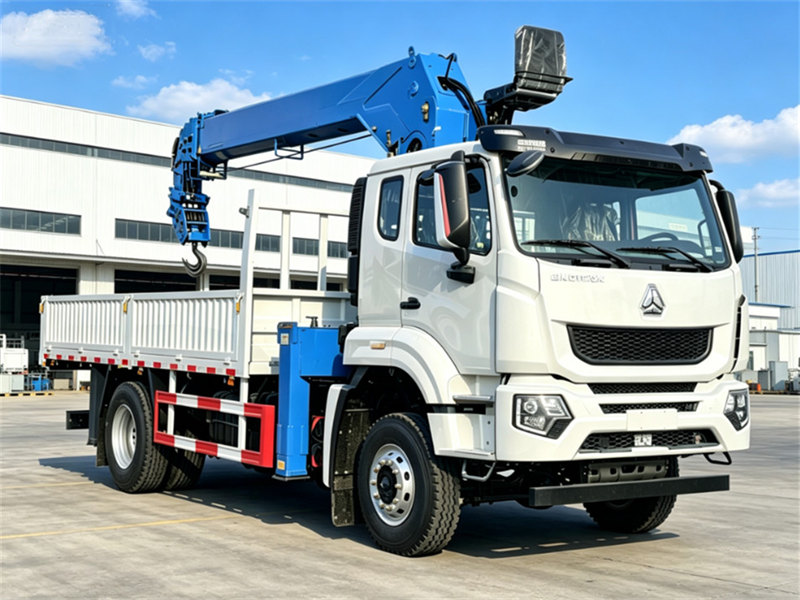

HOWO 4x2 10 tons boom crane truck
