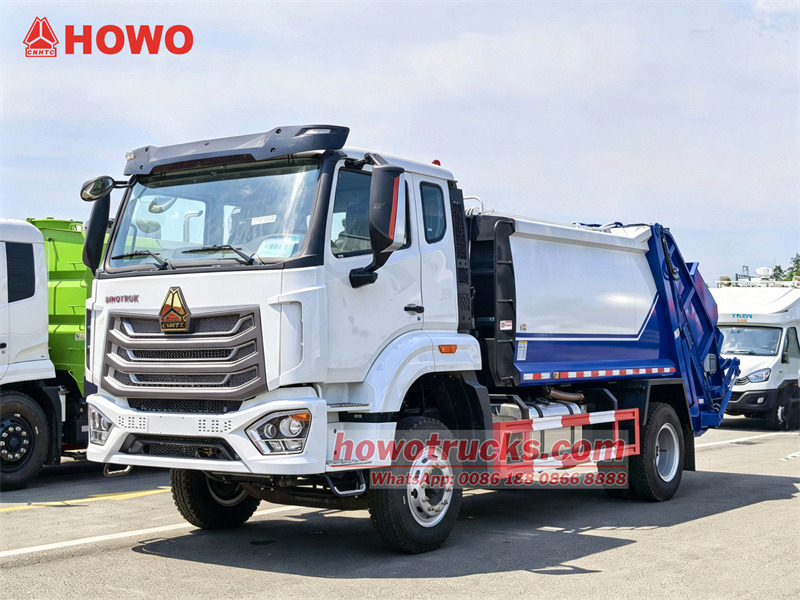

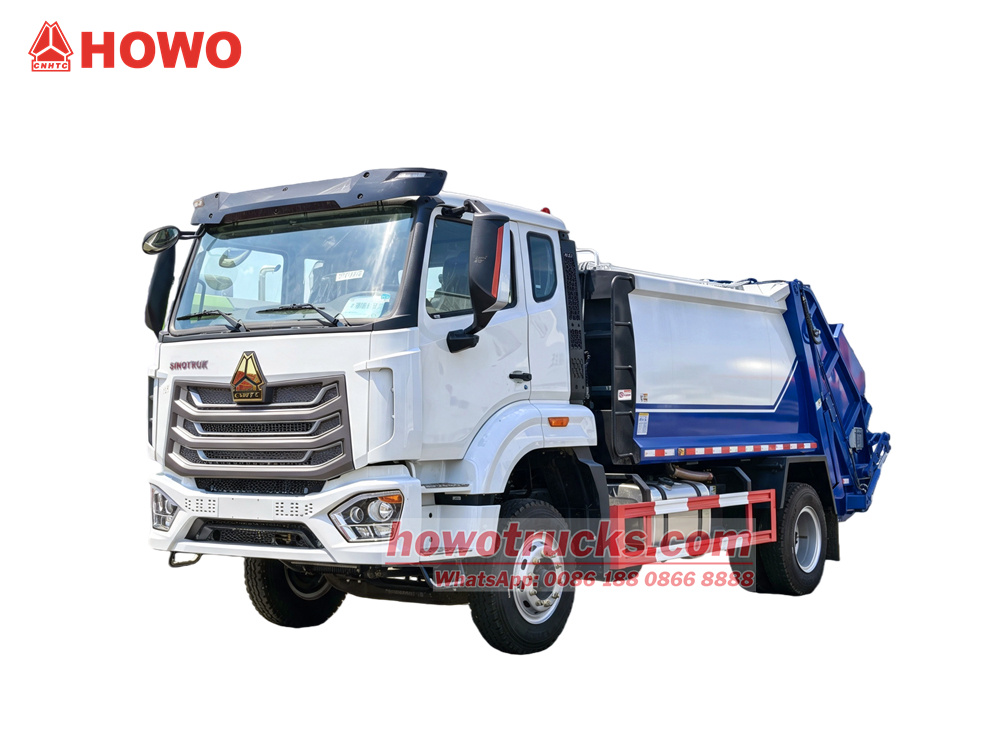

The Howo NX 4x2 garbage compactor truck features a 4500mm wheelbase, a WP7.300E51 engine, an HW11708STC 8-speed transmission, a 14 cubic meter T420 high-strength steel upper body, a semi-sealed small triangular hopper tipping mechanism at the rear, and utilizes Xiamen Yinhua hydraulic cylinders, Shanghai Qiangtian multi-way valves, and Hefei Changyuan hydraulic pumps. The loading unit's lifting cylinder has a two-way balance valve, and the truck employs a CAN bus electronic control system (with one-button operation and manual operation modes, and electronic throttle). It includes electronic control box, manual hydraulic control valve, and front and rear sewage tanks.
Ishlash qobiliyati :
14cbmIdish turi :
HOWO NX300Olchamlari (mm) :
9020 X2500X3120Drayv tizimi :
4x2G'ildirak bazasi (mm) :
4500Dvigatelga xos :
300HP/WP7.300E51Vites qutisi :
HW11708STC 8-shift, ManualOld o'q (kg) :
6500Orqa aks (kg) :
11500Izoh :
RHD is optional
In today's rapidly urbanizing world, the reliability, intelligence, and operational efficiency of waste collection and transportation equipment directly impact the level of urban environmental governance. The Howo NX series 4×2 compactor garbage truck is a professional sanitation vehicle designed to meet this demand, integrating high-efficiency compression, intelligent control, and durability. It is suitable for daily collection and transportation operations on urban main roads, residential areas, and rural garbage transfer stations.

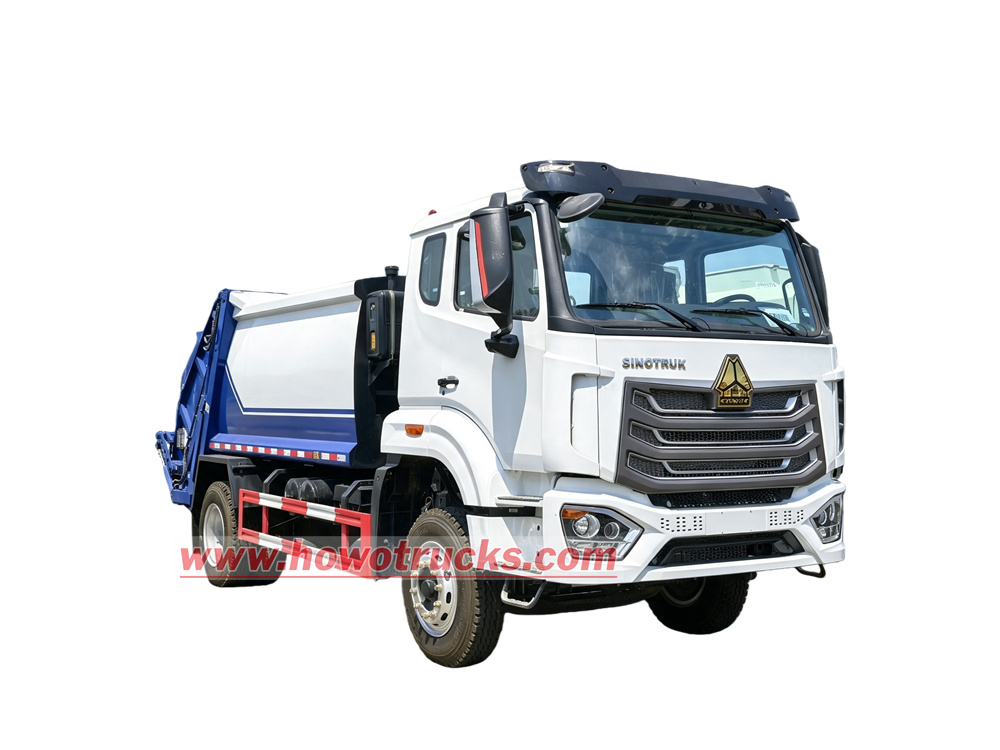

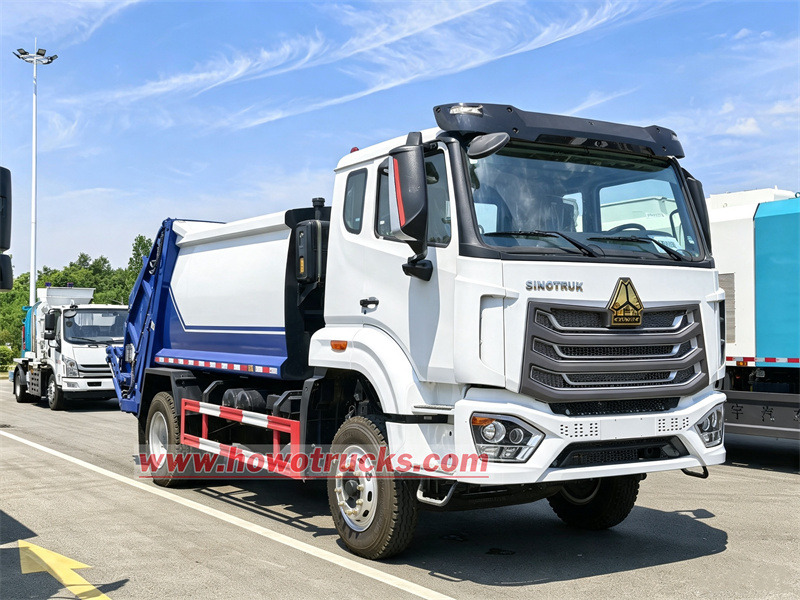

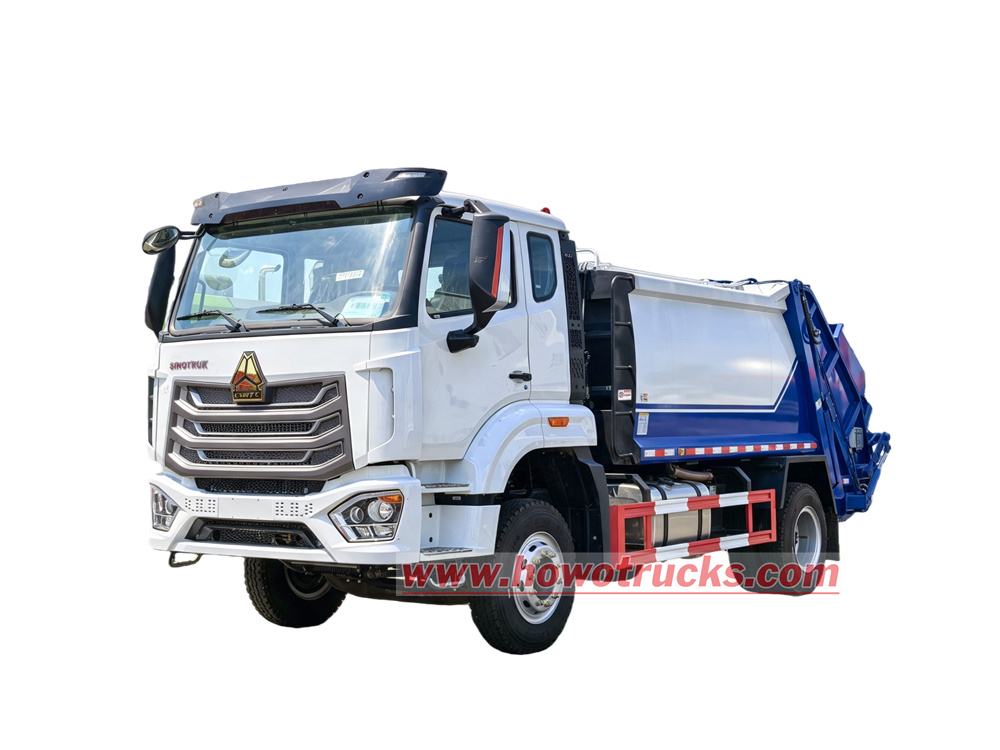

The HOWO Rear Loader waste collection vehicle utilizes the Howo NX 4×2 dedicated sanitation chassis, paired with a 4500mm wheelbase for a balanced and rational layout, perfectly adapting to a 14-cubic-meter large-capacity superstructure. Powered by a WP7.300E51 Euro V engine, it offers ample power reserves, suitable for the frequent start-stop and heavy-load compression operations of garbage trucks.
▶ Product Parameters:
|

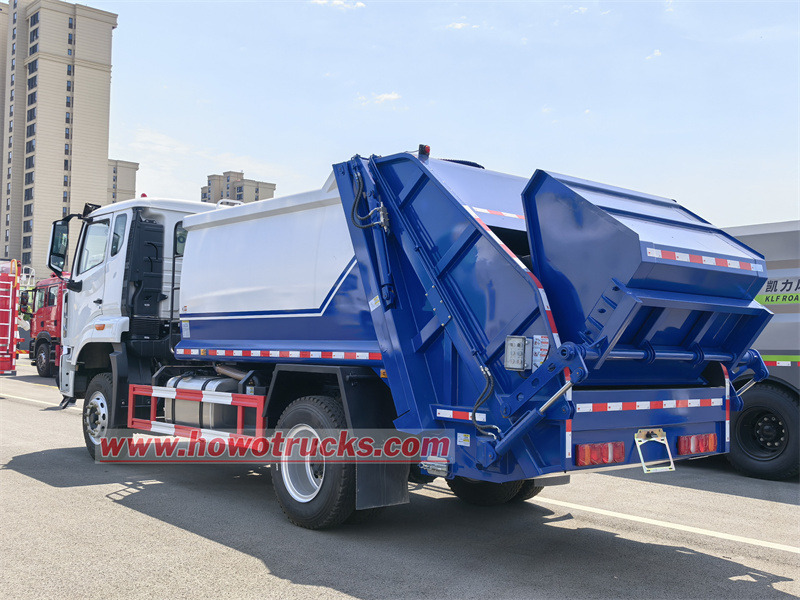

HOWO NX 14CBM rear loader compactor truck |
|
|
Chassis |
|
|
Size |
9020 X 2500 X 3120 mm |
|
GVW/Curb Weight |
18000/10750kg |
|
Wheelbase |
4500mm |
|
Cab |
SINOTRUK HOWO NX300, Left Hand Drive |
|
Front/Rear Axle |
6500 / 11500kg |
|
Tire |
11.00R20, 6+1 tires |
|
Engine |
|
|
Type |
Diesel, In-line 6-cylinder, water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged intercooling |
|
Make/Model |
WEICHAI / WP7.300E51 |
|
Horse Power（HP) |
300 HP/220kW |
|
Max torque |
1250N.m |
|
Rated speed |
2300rpm |
|
Displacement |
7.47L |
|
Emission standard |
Euro 5 |
|
Transmission |
|
|
Model |
HW11708STC 8-shift, Manual |
|
Garbage Container |
|
|
Capacity |
14 CBM |
|
Material |
T420 High-strength steel plate |
|
Design |
Sealed leakage proof |
|
Compaction Ratio |
≥ 1:3.4 |
|
Hopper Volume |
2m3 |
|
Sewage Tank |
200L + 200L |
|
Flip mechanism |
Semi-sealed bucket |
|
Feeding mechanism cycle time |
≤10s |
|
Loading Cycle Time |
≤25s |
|
Unloading cycle time |
≤110s |
|
Filler lifting time |
≤15s |
|
Discharging system |
Horizontal ejection |
|
Control System |
CAN bus + motion controller，features both one-button control and manual control modes. |
|
Front electric control in the cab, rear electric control, and drive side manual control |
|
▶ Upper Structure:

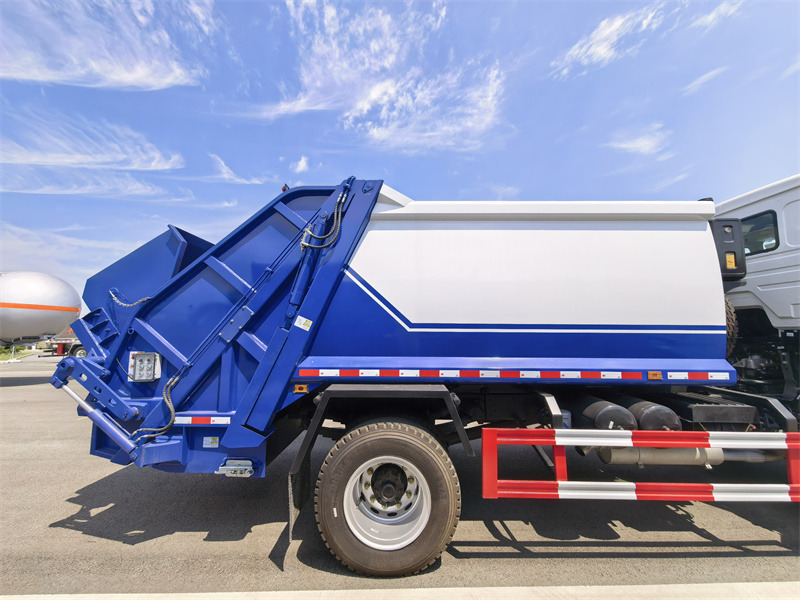

• Box Volume: 14 cubic meters. The box body is made of T420 high-strength steel plate, which is high in strength, wear-resistant, and deformation-resistant.

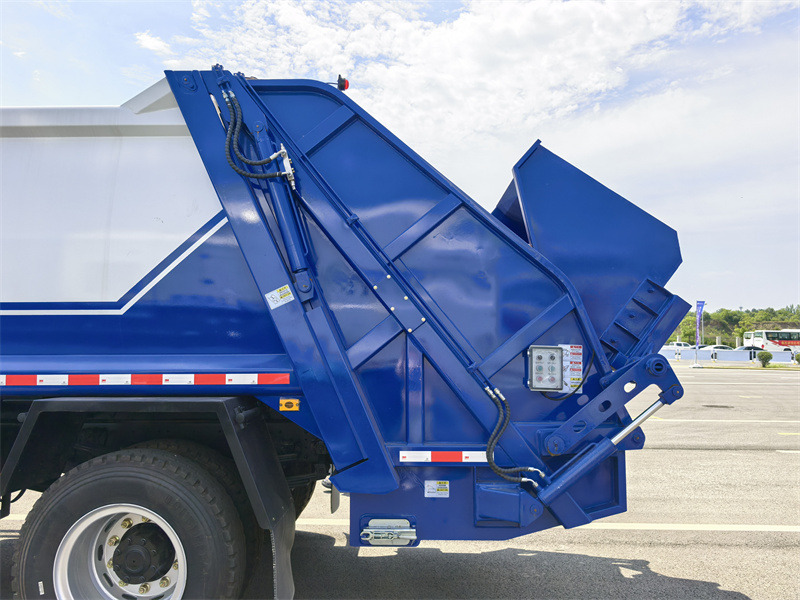

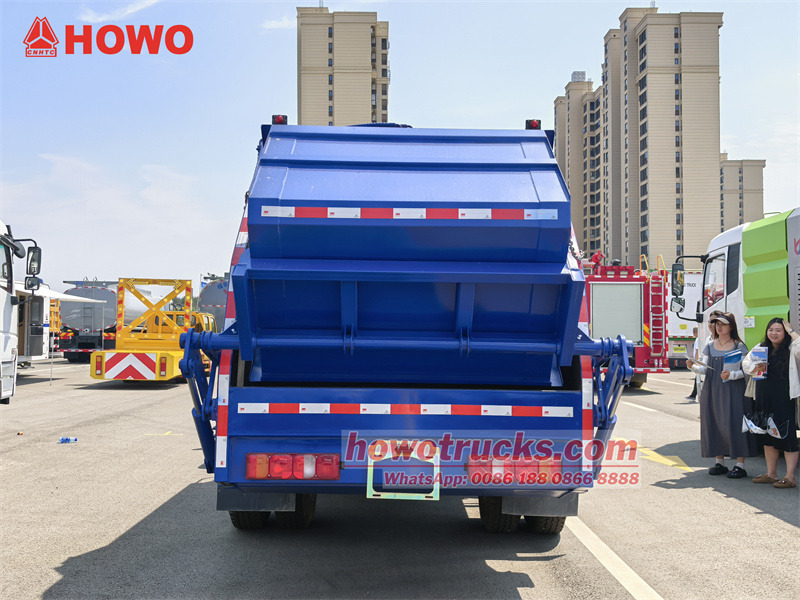

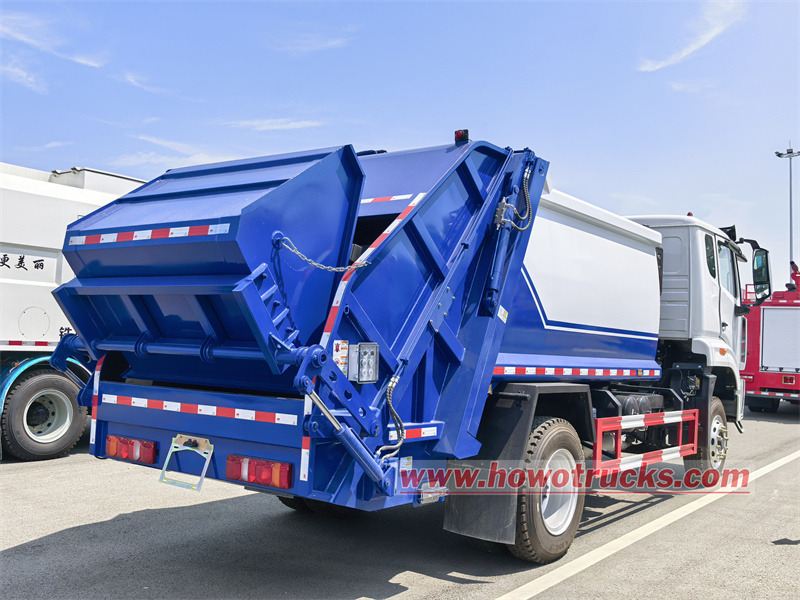

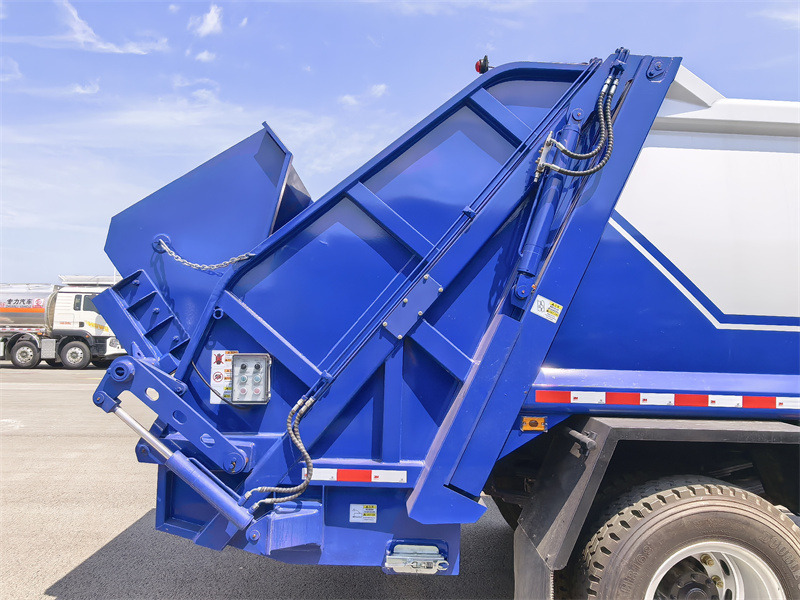

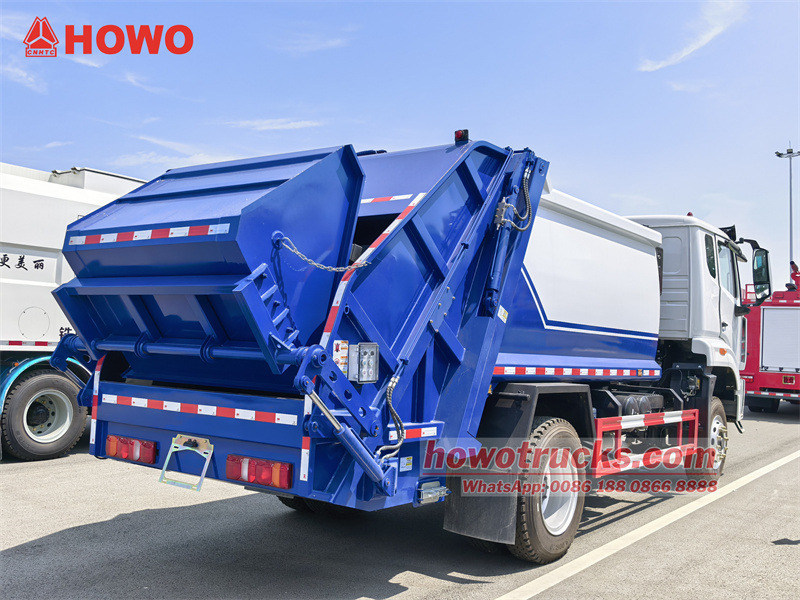

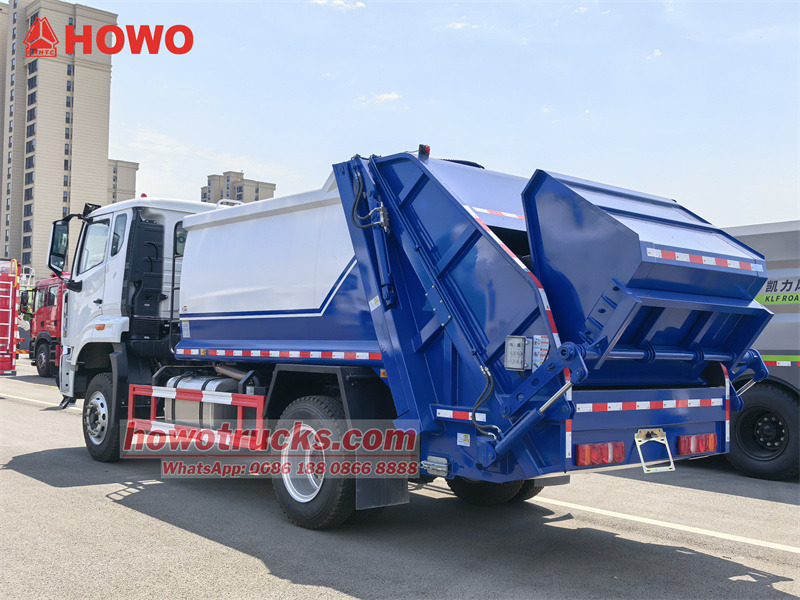

• Rear Design: Semi-sealed small triangular hopper tipping mechanism, suitable for docking and unloading 120L/240L standard garbage bins and small tricycle collection vehicles. The semi-sealed design reduces garbage splashing and scattering during operation.
• Two-way Compression Technology: The waste compression ratio can reach 1:3.4 or higher. Waste is repeatedly scraped into the waste box by the loader scraper, and then pushed forward by the two-way compression of the front pusher plate until the box is full.
▶ Hydraulic System:

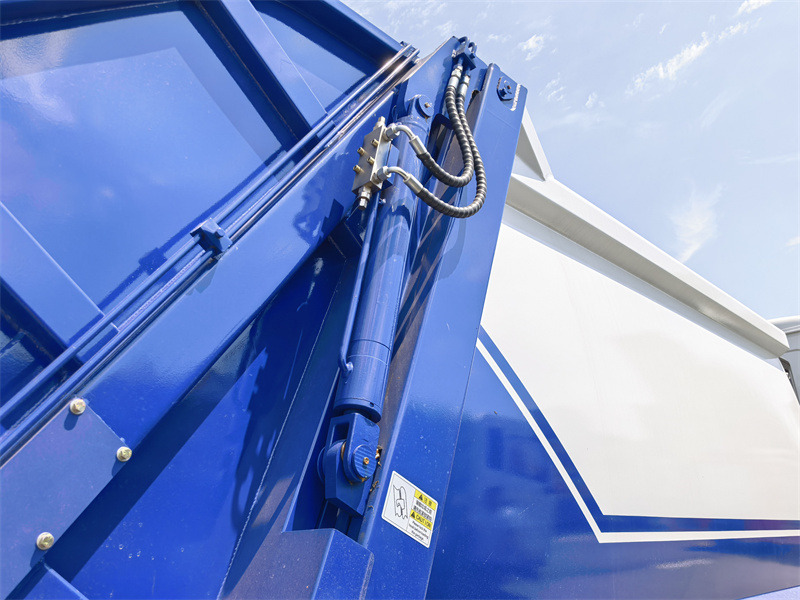

• Cylinders: Utilizes Xiamen Yinhua cylinders, with precision-machined and chrome-plated cylinder bodies. Imported seal materials ensure wear resistance and anti-stretching properties. The loading device lifting cylinder features a two-way balance valve for smooth, safe, and reliable operation.

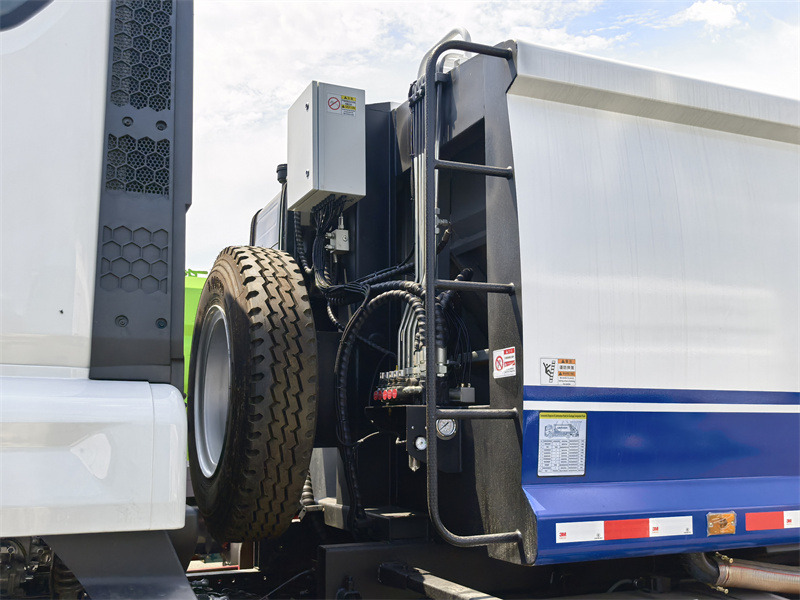

• Control Valve: Equipped with a Shanghai Qiangtian multi-way valve. The valve body integrates overload relief and oil replenishment functions, ensuring precise action and rapid response.
• Power Source: Powered by a Hefei Changyuan hydraulic pump with a reasonable displacement design. The system's rated working pressure is stable at 20MPa, and the compression cycle speed is appropriate.
▶ Operating System:
• Equipped with a CAN-BUS based vehicle electronic control architecture, featuring high system integration, simplified wiring harnesses, reduced potential fault points, and support for one-button fully automatic cyclic operation mode.
• Retains a complete manual operation mode, allowing individual control of each mechanism's actions. Single-step adjustments are more convenient during equipment maintenance and material clearing. The system integrates electronic throttle linkage, automatically matching engine speed during operation.

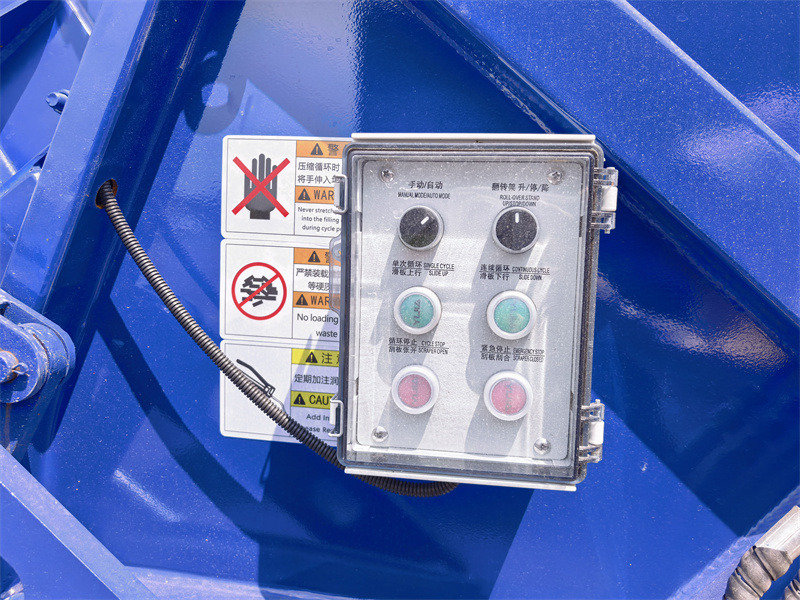

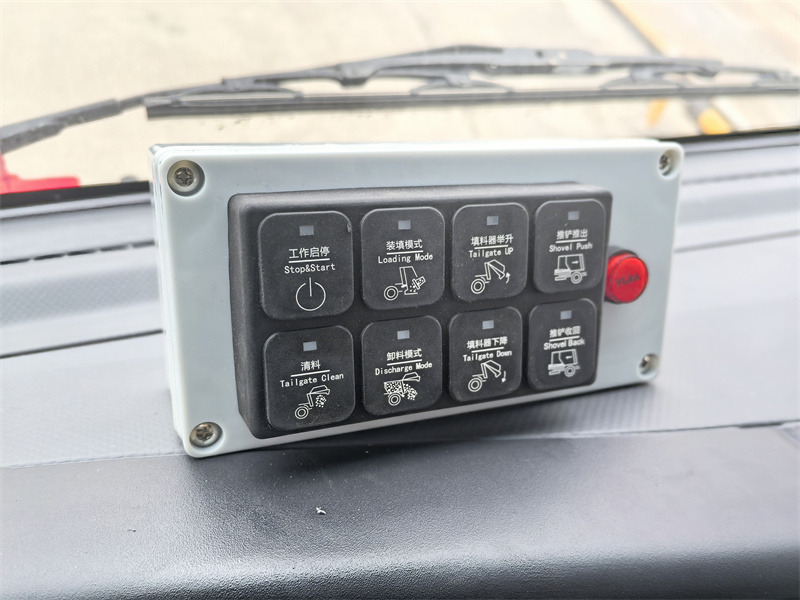

• Operation Points: Three electronic control boxes are located inside the cab and on the left and right sides of the loader.

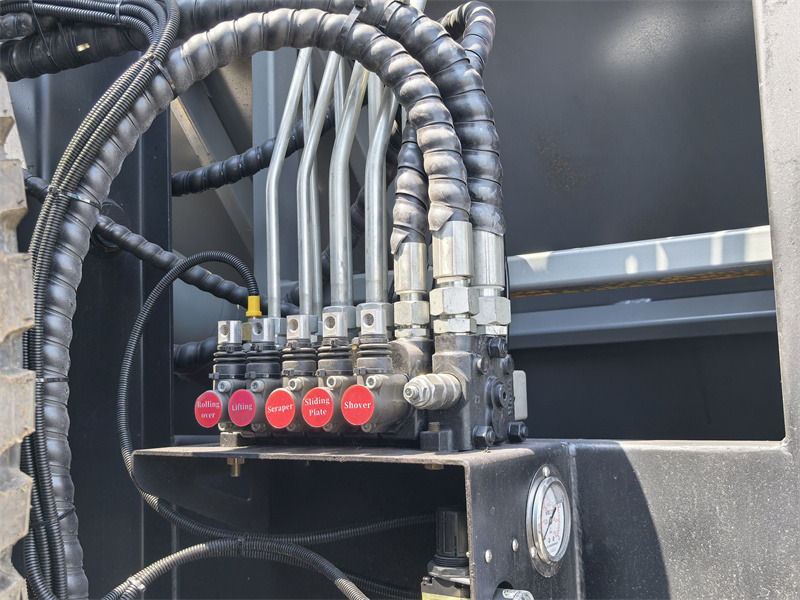

• Emergency Stop: An emergency stop switch is located on the left side of the loader, and a manual hydraulic control valve is provided on the passenger side, providing dual protection for operational safety.
▶ Environment and maintenance:

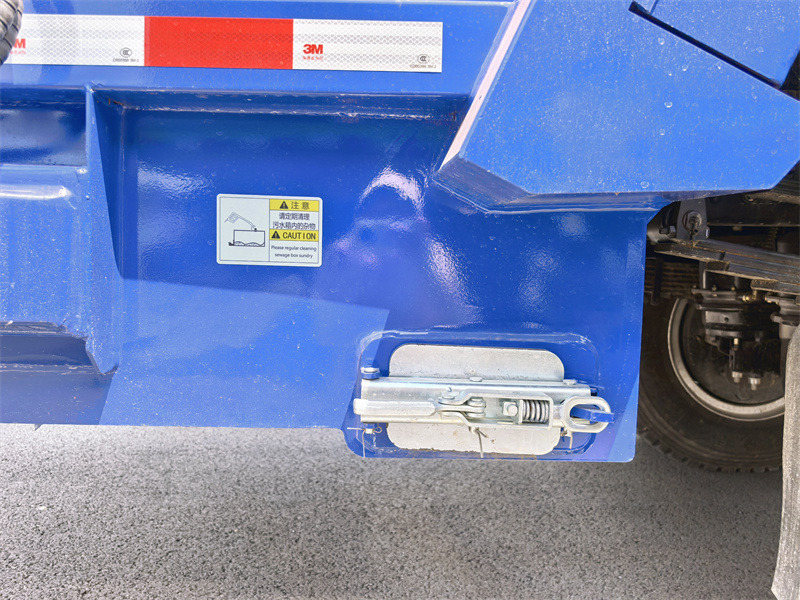

• The vehicle is equipped with front and rear partitioned wastewater collection tanks, ensuring complete enclosed collection of leachate generated during operation. This prevents leakage and road pollution during transport. The wastewater tanks have pre-installed discharge outlets for easy cleaning.
• The tank body and loading device are sealed with sealing strips to prevent leakage.
• The vehicle's maintenance points are rationally laid out, with hydraulic, electrical, and lubrication points exposed and visible. Routine maintenance and inspection are simple, reducing subsequent maintenance time and costs.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

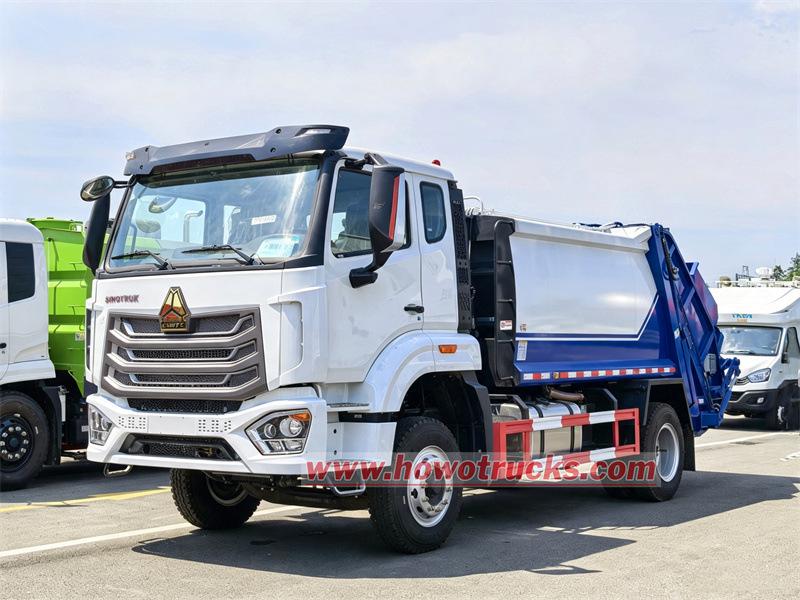

Manufactured at our professional heavy-duty vehicle factory, this Sinotruk HOWO NX300 Waste Compactor Truck is a professional sanitation vehicle that integrates high-efficiency compression, intelligent control, and durability. It is suitable for daily collection and transportation operations on urban main roads, residential areas, and rural garbage transfer stations.
