10 CBM garbage compactor truck superstructure

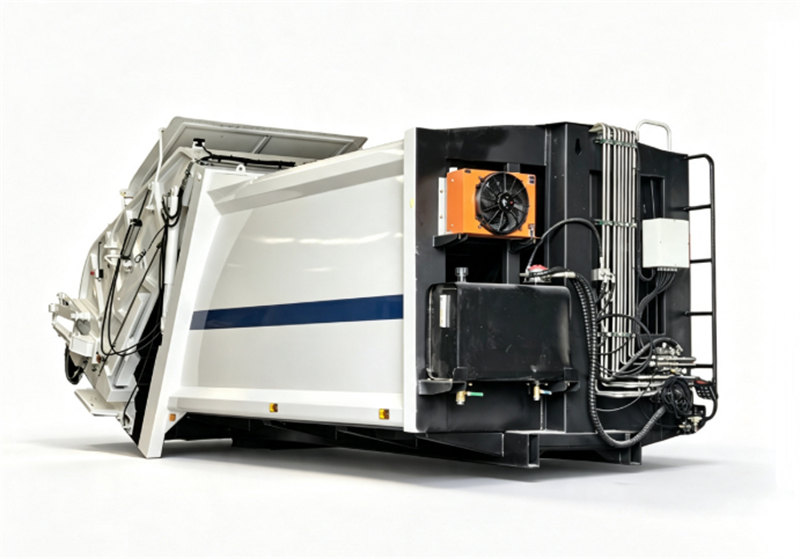

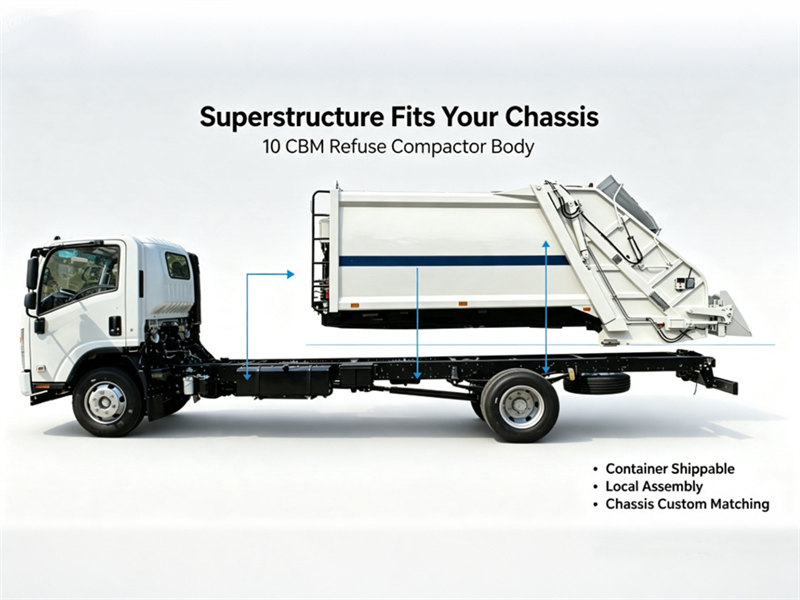

The refuse compactor superstructure is designed for containerized sea freight delivery.Ship the body separately in containers, then complete chassis mounting & local assembly at your destination.CS trucks factory offer full engineering matching service for your locally sourced truck chassis (models unavailable in China).You retain your preferred original chassis, engine and core powertrain, while equipping it with our high-quality compression waste body.Cut international shipping costs, preserve your chassis supply chain, and build reliable garbage compactor trucks on-site.

  • Ishlash qobiliyati :

    10 cbm

  • Idish turi :

    Customer Local chassis

  • Drayv tizimi :

    LHD or RHD both available

  • G'ildirak bazasi (mm) :

    3800~4200mm
Hozir so'rang
MAHSULOT TOIFALARI
Yangi mahsulotlar

The refuse compactor superstructure is designed for containerized sea freight delivery.Ship the body separately in containers, then complete chassis mounting & local assembly at your destination.CS trucks factory offer full engineering matching service for your locally sourced truck chassis (models unavailable in China).You retain your preferred original chassis, engine and core powertrain, while equipping it with our high-quality compression waste body.Cut international shipping costs, preserve your chassis supply chain, and build reliable garbage compactor trucks on-site.



10CBM Compactor Refuse Truck body structure

*HOWO 10 cbm Garbage Compactor Body

10 cbm compactor garbage truck upper structure*

-----------------------------------------------------------------



Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



⚙Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS GROUP LIMITED



✅ Container-shippable compact dimension, fits chassis with 3800–4200 mm wheelbase.

✅ Robust all-carbon-steel construction with reinforced thick steel panels for long service life.

✅ Multiple control modes: manual, semi-automatic and fully automatic operation.

✅ Powerful 25Mpa hydraulic system, compaction ratio up to 3.0:1 with fast working cycles.

✅ Bidirectional compression design improves garbage loading efficiency.

✅ Flexible configuration: optional PLC control, multi-type bin lifter and customized body design.

✅ Acid-proof rubber sealing prevents sewage leakage during operation.

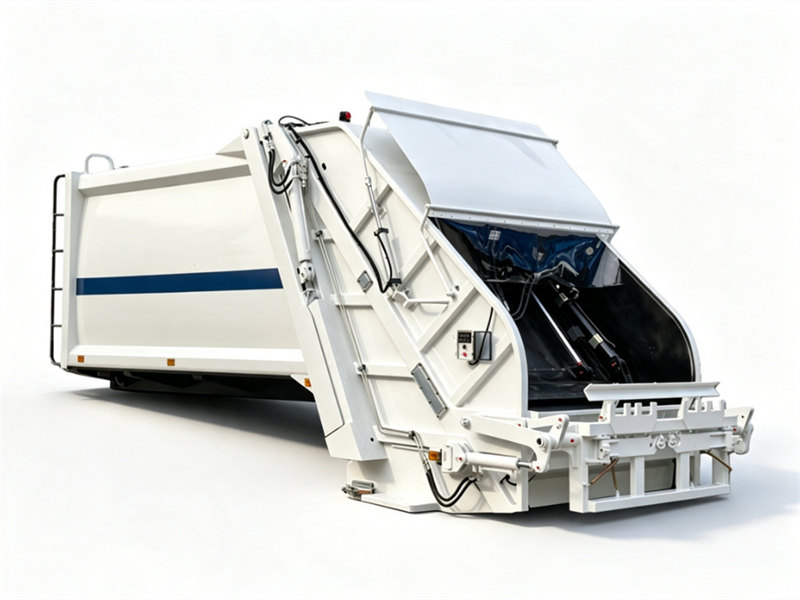

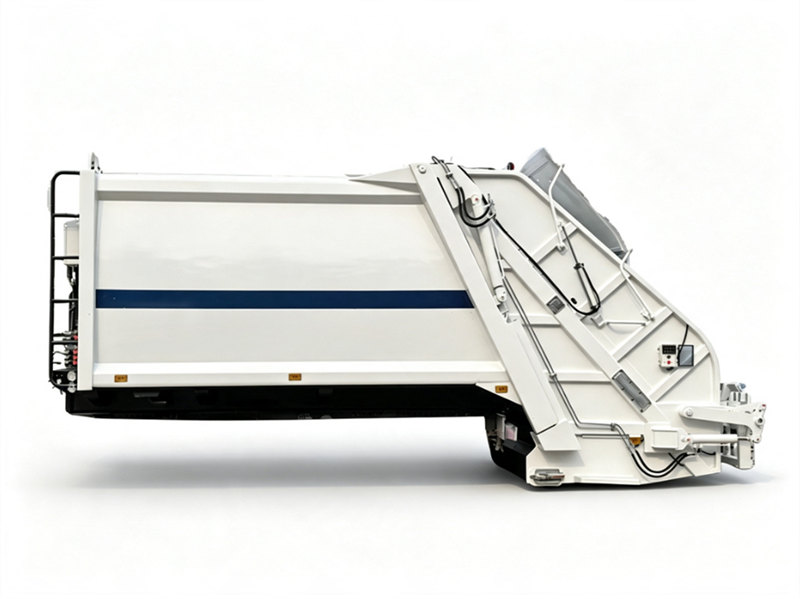

10cbm Rear Loader Truck Bodies for Howo 10cbm Rear Loader Truck Bodies for Howo
10cbm Rear Loader Truck Bodies for Howo 10cbm Rear Loader Truck Bodies for Howo



⚙Ⅱ. Product Parameters for 10cbmRear Loader Truck body kit:

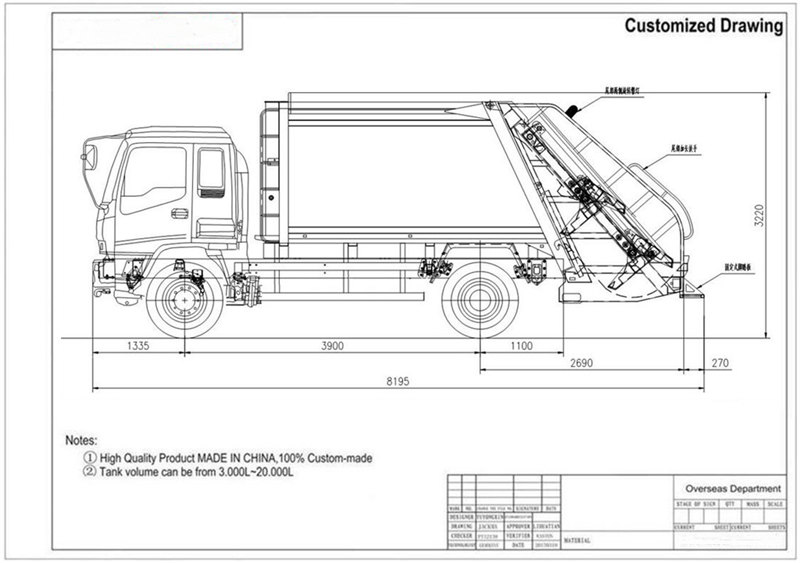

HOWO garbage rear loader truck

garbage rear loader


10CBM Refuse compactor structure parameters

Overall Dimensions

4600*2350*1680 mm

Suitable Wheelbase

3800-4200 mm

Equipment

Structure

Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems

Modes of the pressing

Manual, semi-automatic, automatic, lifting rear part operation manual, loading, pushing, pressing, pushing out automatic

Body

Version

All-metal

Shape

Arc-shaped

Sidewalls/Bottom/Roof

Sheet carbon steel (thickness : 4mm)

Front frame

Sheet carbonaceous steel (thickness : 5mm)

Rear frame

Shaped profile from sheet carbon steel (thickness : 5mm)

Basis

120x120mm (thickness : 5mm)

Loading bunker

Working zone Lighting

2 lamps

Mechanism of raising

Two hydraulic cylinders

Loading bunker

All-metal with sidewalls and a loading ladle

Sidewalls/Ladle floor material

Sheet carbon steel (thickness : 3/4mm)

Ensuring tightness

Between the body and lifting back part in the lower part profile acid-proof rubber is used.

Pressing system

Pressure

25 Mpa

Compaction ratio

3.0 : 1

Loading cycle

25-30 second

Unloading cycle

15-20 second

Features

Control mode diversification, bidirectional compression

Pressing mechanism

The giving plate and hinge related pressing plate moving on two directing bars

Pressing mode

Automatic pressing (1 full cycle and continuous pressing) and controlling of each cycle of pressing separately

Control of pressing

Control from the external panel on the bunker

Lifting rear part

Mechanism of lifting

Two hydraulic cylinders

Function description

Suitable for various rubbish bins

Others

Color and logo

Optional

Standard configuration

Chassis, arc-shaped body, sub frame, rear lifting part, loading bunker, pushing-out plate, hydraulic system, pressing system, sewage tank, climbing ladder, pneumatic control.

Selective configuration

PLC electric automatic control, multifunctional rear lifting part, rear handrail and footplate, other shapes of body, rear swing arm, and etc.

HOWO garbage rear loader truck


⚙ Ⅲ. Structural Assembly For Garbage Rear Loader Body Kits:

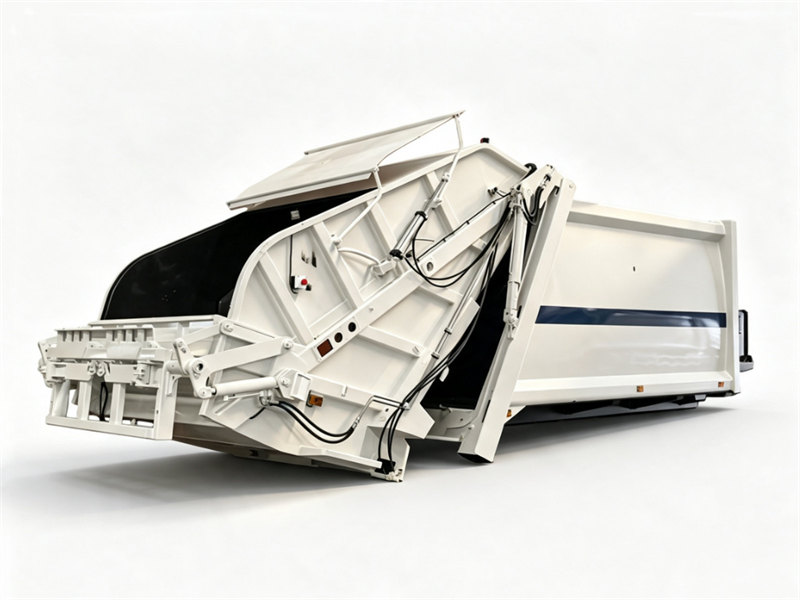

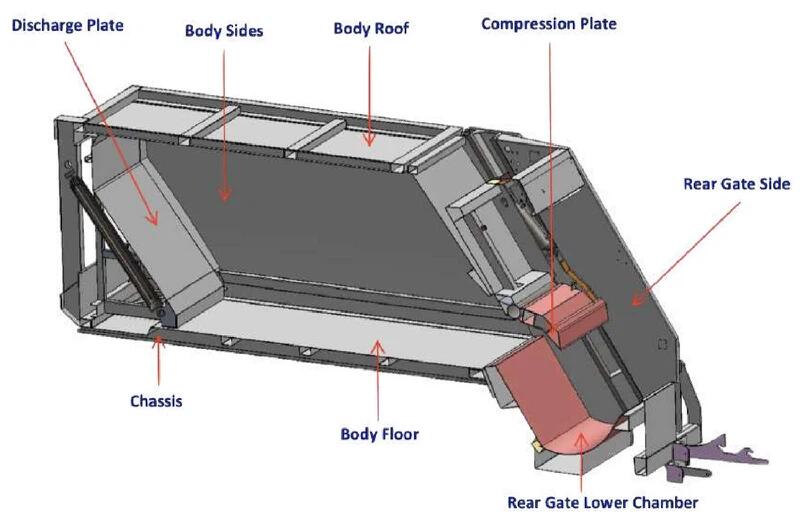

▣ Compactor Body：

♦ The waste container is a rigid frame welded with reinforced beams and high-strength steel.

♦ Side panels are formed from single whole plates with no longitudinal welding seams via cold bending technology with large-radius corners, eliminating fatigue failure risks of traditional spliced welds.

♦ Advanced welding between floor and side walls prevents liquid leakage.

♦ A large-capacity sewage tank at the front bottom collects wastewater to avoid spillage.

♦ The body features light weight, excellent stress resistance and anti-deformation performance.



HOWO 10CBM garbage compactor truck

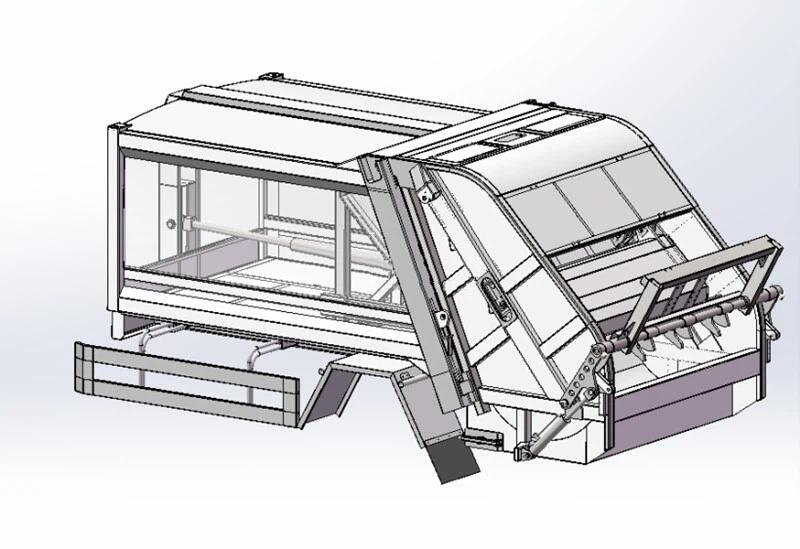

▣ Ejector Blade Assembly：

♦ Constructed with rectangular steel tube frame and bent plates.

♦ Adjustable sealing strips are fitted on both sides and top to maintain precise clearance with the container.

♦ It delivers even waste distribution and thorough discharge with lightweight construction.



HOWO garbage compctor truck

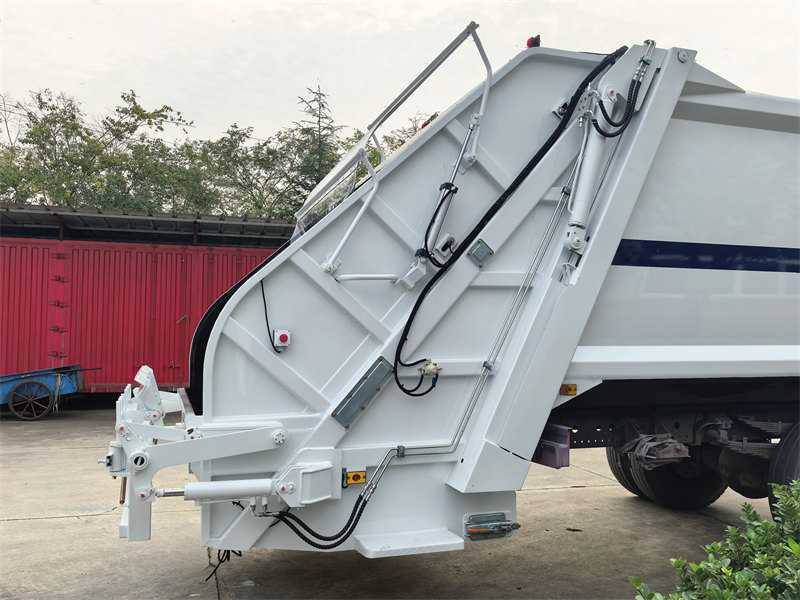

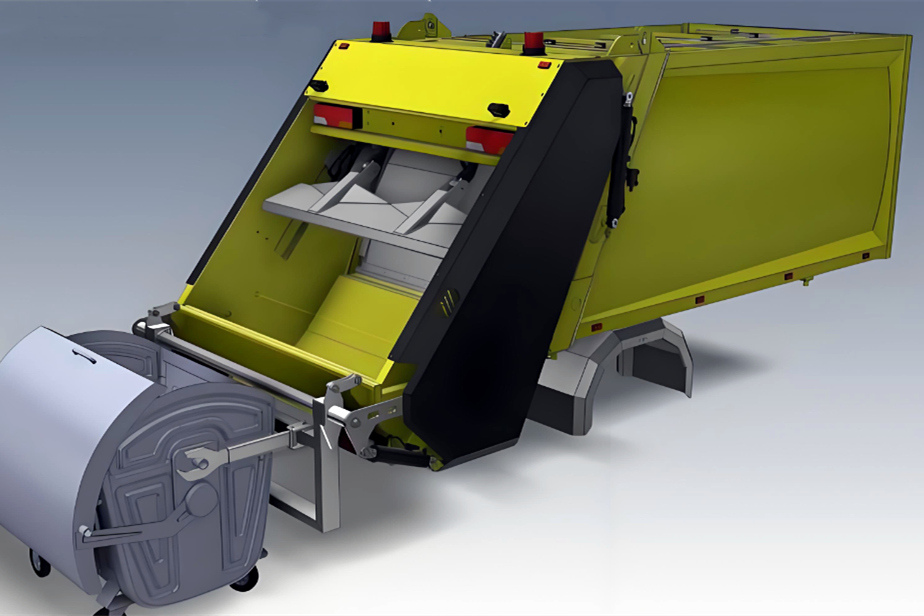

▣ Loading Hopper Assembly：

♦ Consists of hopper housing, slide plate and scraper.

♦ Slide rails and bottom curved plate are made of heavy duty wear resistant steel with drainage holes to channel sewage into the storage tank.

♦ Integrated self lubricating nylon sliders on slide sides offer outstanding wear resistance and stable operation.

♦ Stress areas of the scraper are locally reinforced for high strength and low weight.



HOWO garbage compactor truck





⚙ Ⅳ. Advantage For Garbage Rear Loader Body Kits:

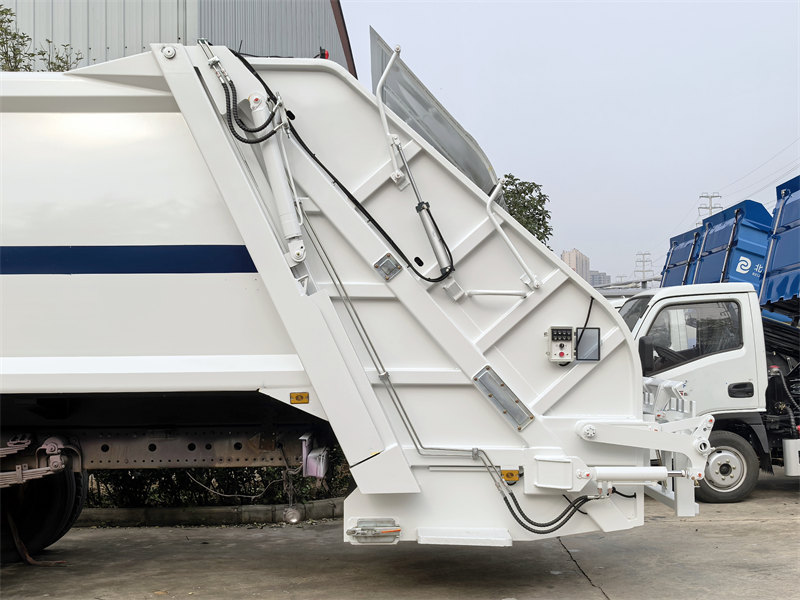

Rear Loder Compactor Body

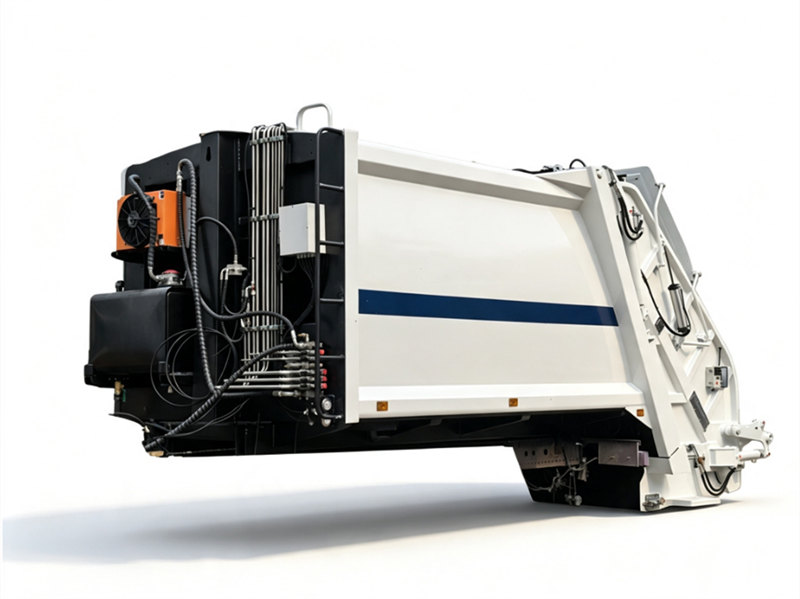

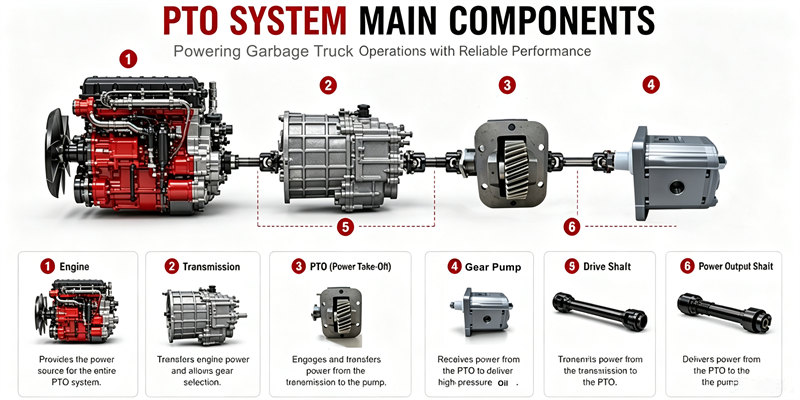

▣ Hydraulic Drive System:

♦ Hydraulic cylinders are supplied by reputable domestic brands, fitted with imported British HALLITE seals for extended service life.

♦ Aluminum gear pumps are sourced from China Top brand for stable and reliable performance.

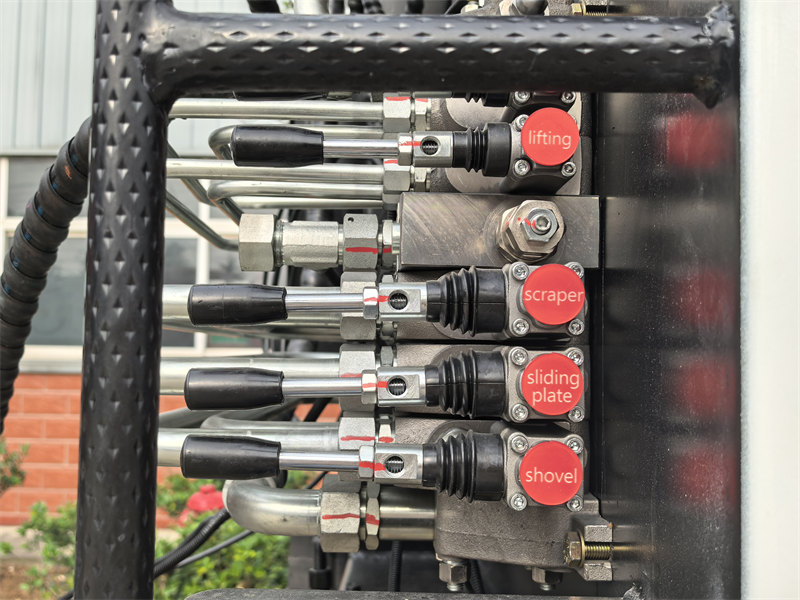

♦ Multi-way directional valves offer multiple supplier options including domestic manufacturers and Italian HC brand.

♦ Hydraulic steel pipes and rubber hoses adopt trusted brands.

Rear Loder Compactor Body

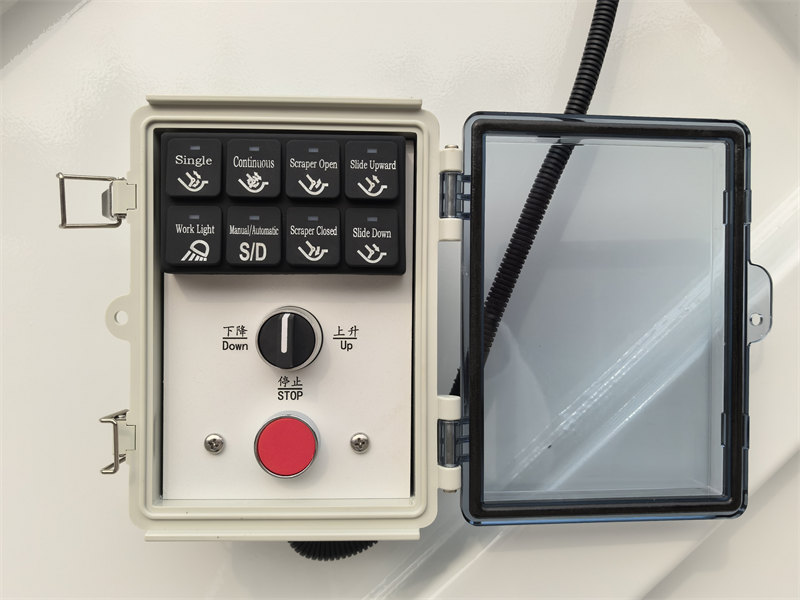

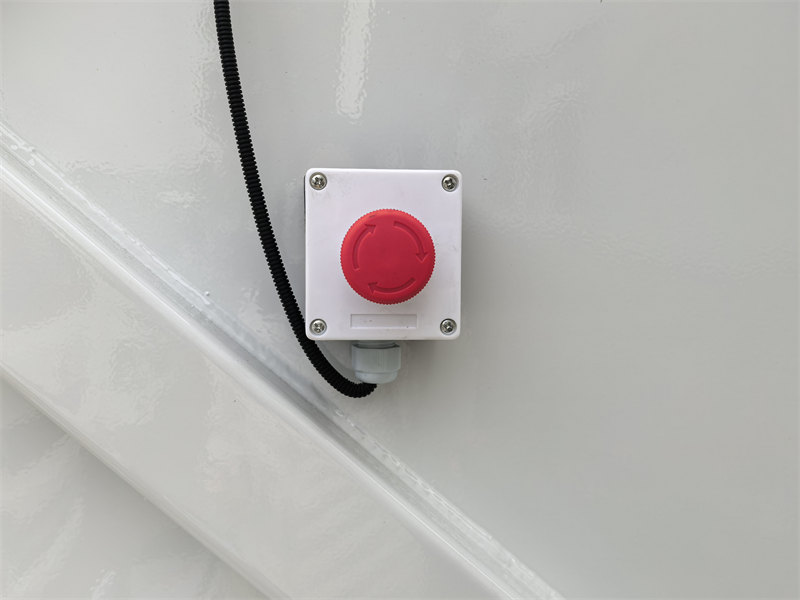

▣ Electrical Control System:

♦ The system adopts modular design, including control unit, front CAN bus keypad, rear operation panel, proximity sensors and vehicle wiring harness.

♦ Components are connected via automotive-grade waterproof & aviation connectors (IP67 rating).

♦ It supports wide working voltage of 9~36VDC, with single key service life over 1,000,000 cycles. Backlit buttons facilitate night operation.

♦ The integrated wiring harness is professionally manufactured, fully tested to comply.

♦ Clearly marked connectors prevent misconnection for fast, error-free installation.



⚙ Ⅳ. Work Principle For Garbage Read Loader:

 The HOWO garbage truck bodies kit can withstand up to 12 tons of vertical pressure during compression operations, significantly extending its service life. The loader assembly utilizes a multi-stage hydraulic linkage design. The slide and scraper assembly are driven by a Fujian Shanyou hydraulic cylinder, utilizing a single Wanye pump system for continuous compression, ensuring a single cycle time of under 30 seconds. The hydraulic system innovatively utilizes a dual-pump redundant configuration: the primary pump handles the truck's lifting and rear door opening and closing, while the secondary pump provides dedicated movement for the compression pusher. This division of labor ensures rapid compaction of 8-10 cubic meters of garbage while also preventing unintended slippage during lifting thanks to a two-way balancing valve.



Garbage Compctor Hydraulic Body Kit



The electronic control system integrates a Siemens PLC and a German Eaton operating panel, supporting one-touch operation from the cab, manual control from the rear, and wireless remote control. Its photoelectric sensing technology automatically identifies the position of the loader, ensuring that the hydraulic mechanism operates within a safe range. The sewage collection system utilizes a dual-tank design, with the primary tank located below the loader and the secondary tank integrated into the chassis frame. These systems are connected by sealed pipes to create negative pressure diversion, and, combined with imported EPDM sealing strips, achieve 100% leachate recovery.
