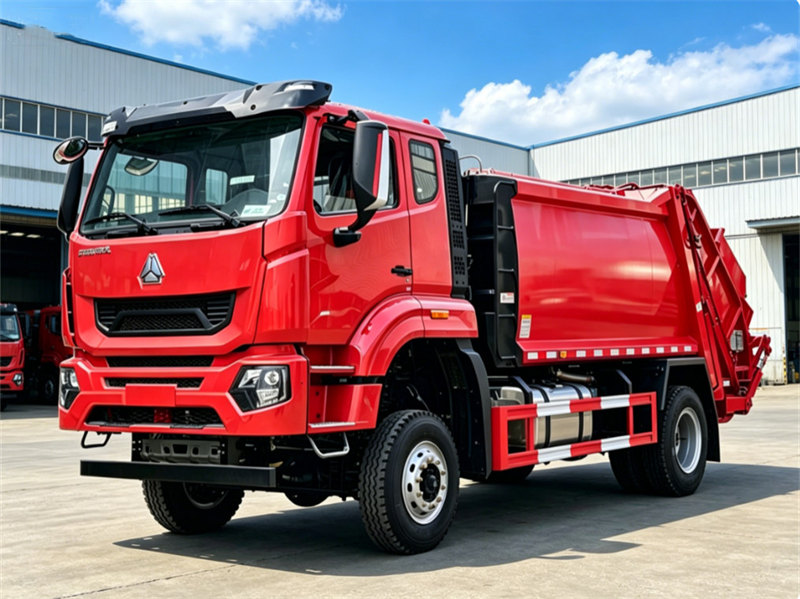

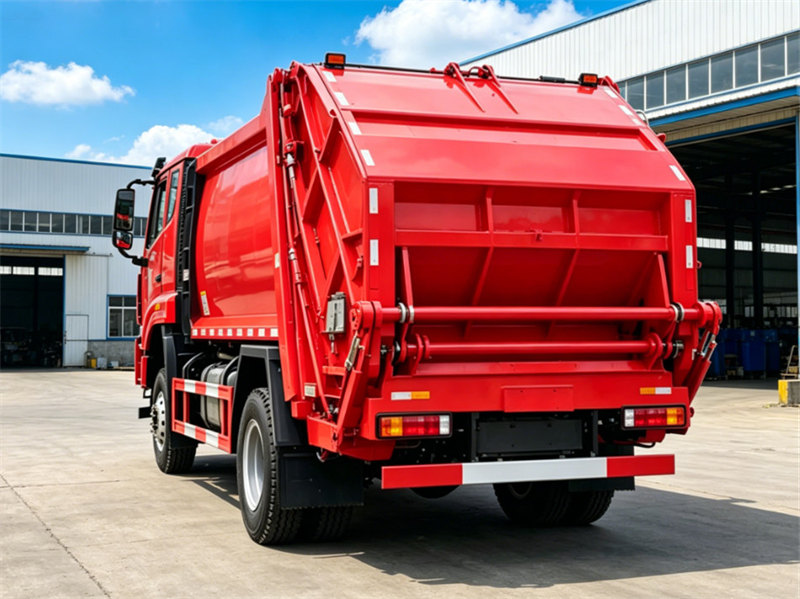

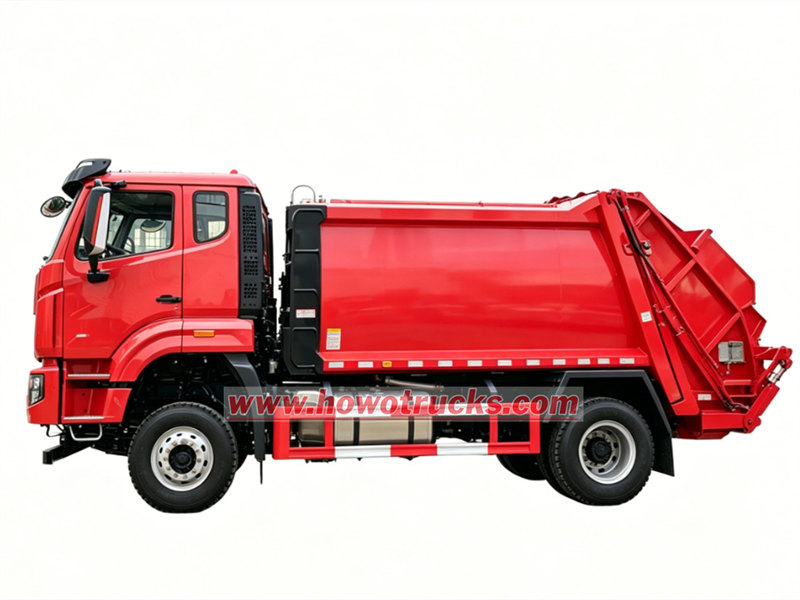

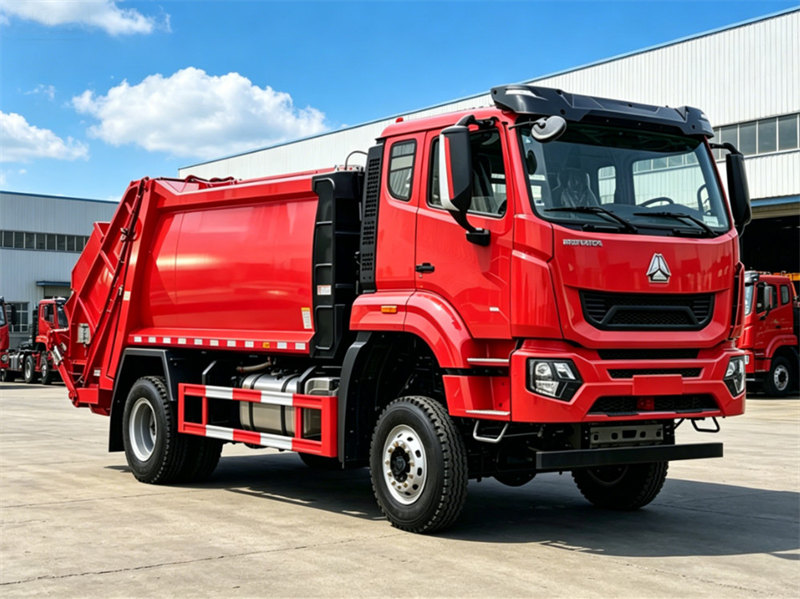

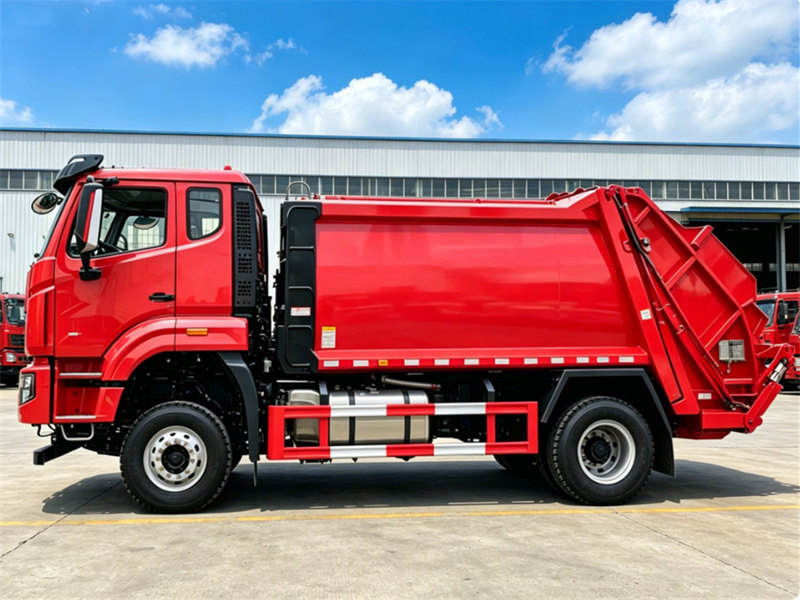

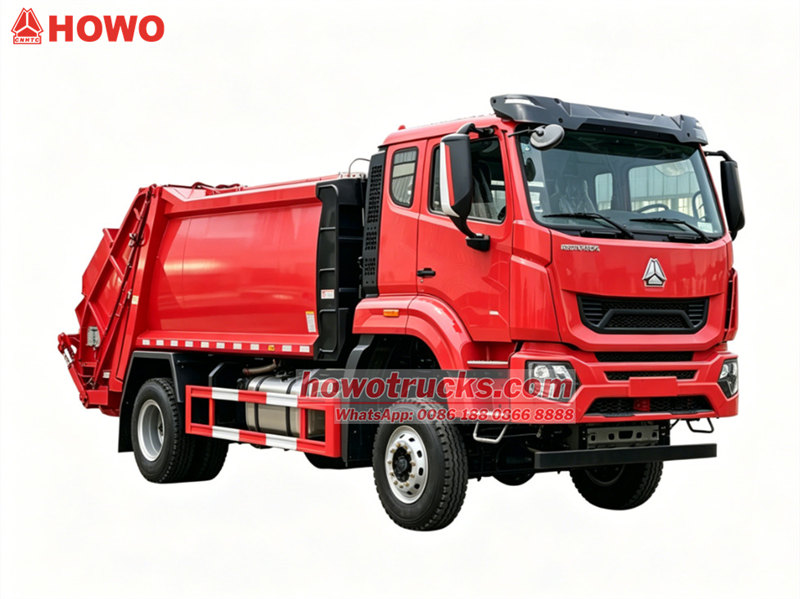

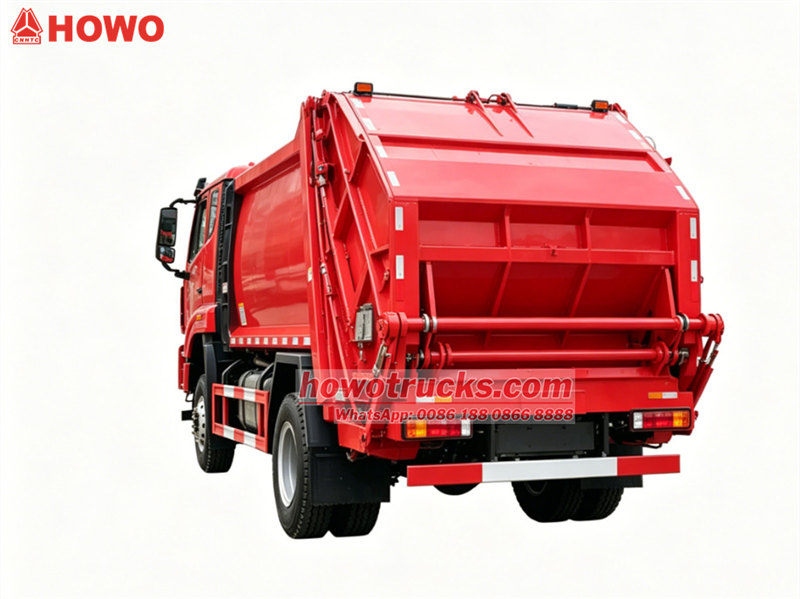

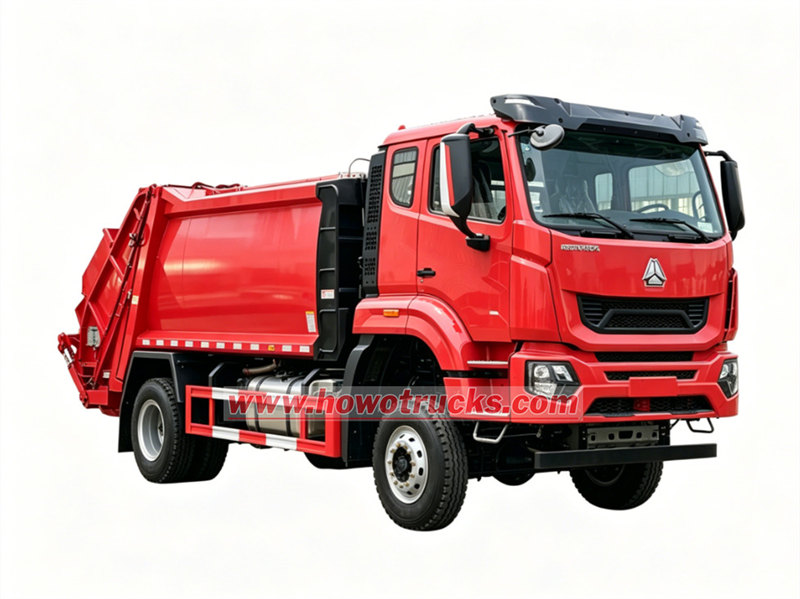

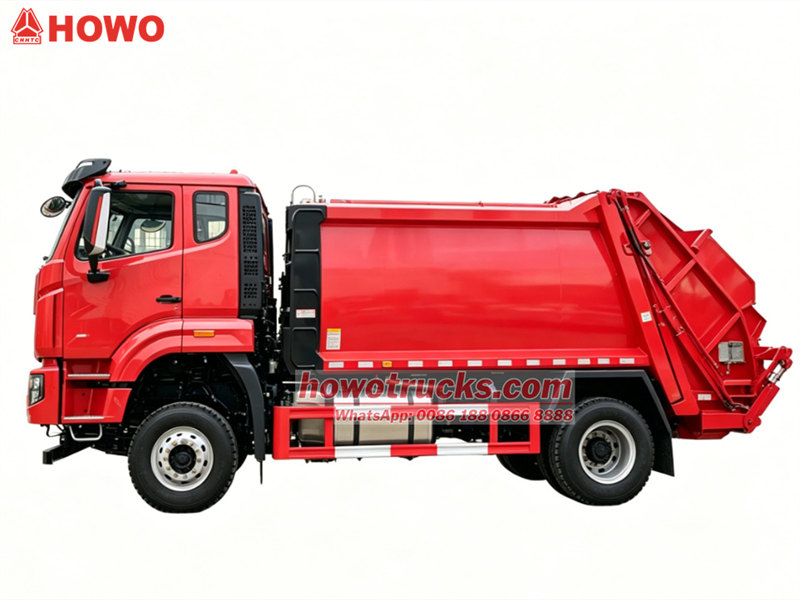

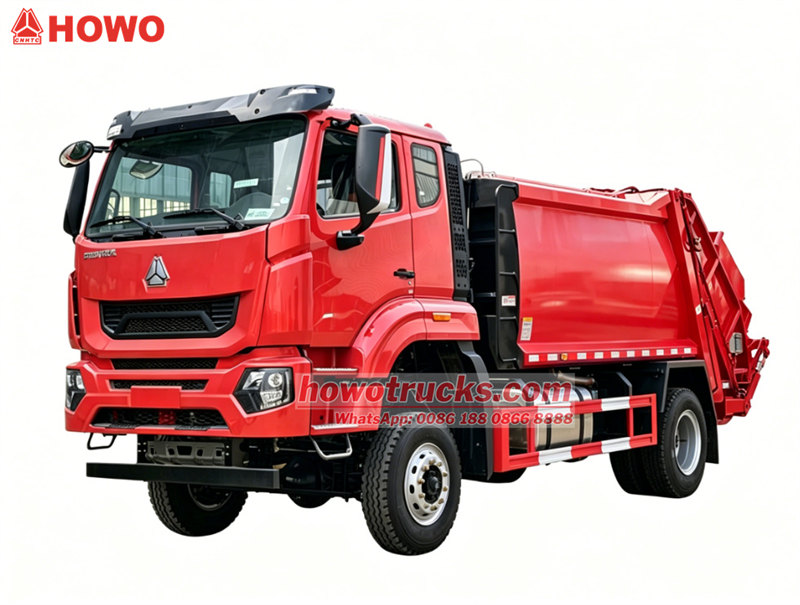

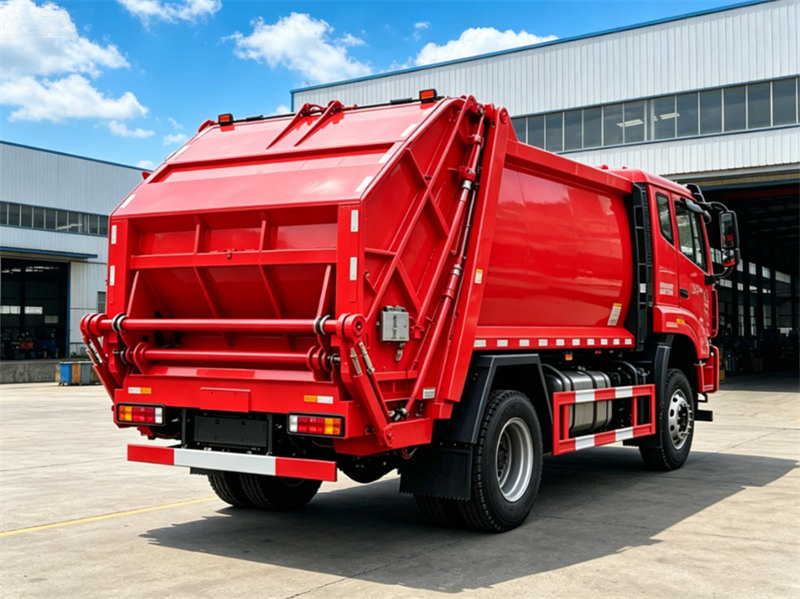

4x4 off road HOWO 8CBM refuse compactor vehicle
The 12CBM rear loader garbage truck adopts the HOWO M7 off-road chassis, fitted with a YC6J220-33 diesel engine delivering 220HP maximum power and 800N.m peak torque, paired with a Fast 8-speed manual gearbox. Boasting robust power and reliable stability, it navigates all rough terrain effortlessly.Its compaction bin is constructed from high-strength steel. Critical components including the 5mm-thick floor and 4mm side panels are processed via laser/plasma cutting and automatic welding for superior body durability.
Ishlash qobiliyati :
12CBMIdish turi :
HOWO M7 single cabin, with sleeperDrayv tizimi :
4x2G'ildirak bazasi (mm) :
3200 mmDvigatelga xos :
YC6J220-33 model 220HP, Euro 3Vites qutisi :
8JS85TE, manual 8F and 2ROld o'q (kg) :
5500Orqa aks (kg) :
13000The 12CBM rear loader garbage truck adopts the HOWO M7 off-road chassis, fitted with a YC6J220-33 diesel engine delivering 220HP maximum power and 800N.m peak torque, paired with a Fast 8-speed manual gearbox. Boasting robust power and reliable stability, it navigates all rough terrain effortlessly.
Its compaction bin is constructed from high-strength steel. Critical components including the 5mm-thick floor and 4mm side panels are processed via laser/plasma cutting and automatic welding for superior body durability.
Backed by efficient compaction performance, mighty power output, modular construction and rigorous factory production standards, this HOWO 12CBM rear loader serves as the optimal waste collection solution for cities globally.

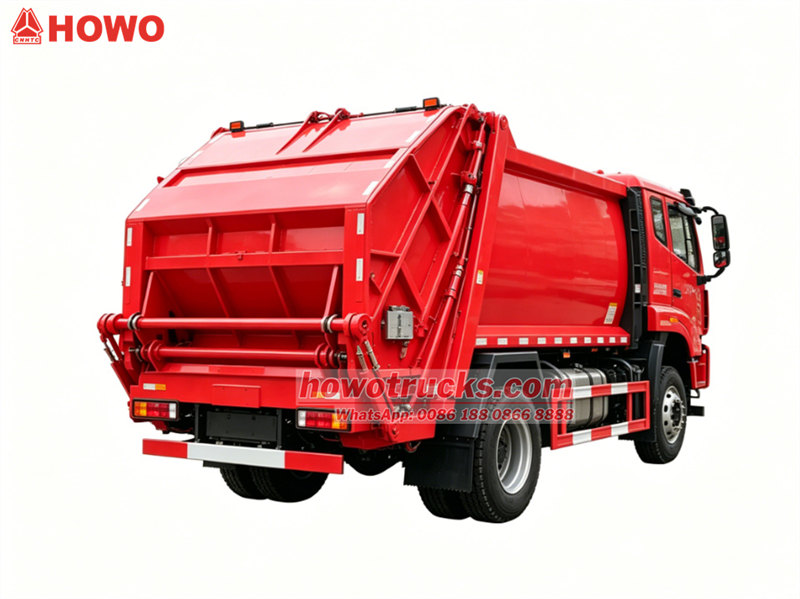

*SINOTRUK HOWO Off Road Rear Loader Truck
12CBM Garbage Trash Compactor Truck
HOWO 4x4 Compactor Lorry*
-----------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS Group
Features:
► 1. Superior Off-Road Chassis & Heavy Load Capacity
Built on HOWO M7 4×4 off-road chassis with reinforced ladder frame and optimized front/rear suspension structure. It supports a maximum gross weight of 18,000kg.
► 2. Powerful & Reliable Power Drive System
Equipped with Yuchai 6-cylinder turbocharged intercooled diesel engine (Euro 3 emission) with 220HP maximum power and 800N.m peak torque, matched with 8-speed manual transmission.
► 3. Flexible & Humanized Operation Performance
Dual CAN-bus electric and hydraulic manual control system ensures flexible and fail-safe operation. The well-equipped M7 cab with air conditioning, electric windows and central lock guarantees comfortable driving.
|
4x4 Off Road HOWO 12CBM Refuse Compactor Vehicle |
||
|
Chassis Model |
HOWO M7 4x4 Chassis |
|
|
Engine |
Make: Yuchai |
|
|
Diesel 4-stroke direct injection diesel engine |
||
|
Engine model:YC6J220-33, Euro 3 emission standard |
||
|
6-cylinder in-line with water cooled, turbocharged and intercooler |
||
|
Maximum output: 220 HP |
||
|
Maximum torque: 800 N·m |
||
|
Displacement: 6.494L |
||
|
Transmission |
8JS85TE, 8 forwards and 2 reverse, manual |
|
|
Drive system |
Left/Right hand drive (off-road system) |
|
|
Chassis |
Frame: U-profile parallel ladder frame and reinforced subframe |
|
|
Front suspension:8 pcs semi-elliptic leaf spring |
||
|
Rear suspension:10+6 pcs semi-elliptic lea spring |
||
|
Fuel tank: 100 L capacity with locking fuel cap |
||
|
Steering |
Power steering, hydraulic steering with power assitance |
|
|
Brakes |
Service brake: dual circuit compressed air brake |
|
|
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels |
||
|
ABS |
||
|
Wheels & Tyres |
Tire: 7 pcs 10.00R20 |
|
|
Optional:11.00R20 |
||
|
Driver's Cab |
HOWO M7 cab, with three seats, A/C, electric glass, central lock |
|
|
Dimensions mm |
Wheel base |
4200 MM |
|
Overall length |
7400 MM |
|
|
Overall width |
2500 MM |
|
|
Overall height |
3350 MM |
|
|
Weight kg |
Curb weight |
8300 KG |
|
Rated Loading Capacity |
10000 KG |
|
|
Gross vehicle weight(GVW) |
18000 KG |
|
|
Front axle loading capacity |
5500 KG |
|
|
Rear axle loading capacity |
13000 KG |
|
|
Compactor Body |
Volume of body(m3) |
12 |
|
Volume of filler(m3) |
2 |
|
|
Time of one filling cycle(s) |
≤25 |
|
|
Lifting time of filler (s) |
8-10 |
|
|
Time of discharge (s) |
≤40 |
|
|
Pressure of hydraulic system (Mpa) |
18 |
|
|
Front/rear sewage capacity (L) |
250+150 |
|
|
Control system |
CAN-bus (electrical) and manual (hydraulic) |
|
✦Ⅲ.Feature for HOWO 4WD 12CBM Garbage Trash Truck:
♦ All-wheel-drive off-road performance
Adopt HOWO M7 4x4 full off-road chassis, matched with Yuchai 220HP / 800N·m high-torque engine + 8-speed manual transmission, powerful enough to handle muddy, mountainous and rugged rural roads.
♦ Heavy-duty reinforced load-bearing structure
Strengthened U-type ladder frame plus reinforced auxiliary subframe, front 8-leaf & rear 10+6-leaf spring suspension, total GVW up to 18 tons, stable load bearing for long-term heavy waste transportation.
♦ Complete safety & comfortable driving configuration
Standard dual-circuit air service brake + spring emergency brake with ABS system for full driving safety. Spacious 3-seat HOWO M7 cab equipped with air conditioner, electric windows and central lock, greatly improving long-shift driving comfort.
♦ Durable travel matching
7 units of 10.00R20 heavy-duty tires (11.00R20 optional), 100L locked fuel tank and hydraulic power steering, reliable for long-distance cross-country waste collection operations.
♦ Large-volume efficient compression system
12m³ main compression bin + 2m³ feeding hopper, 18Mpa high-pressure hydraulic system. Fast working cycle: filling ≤25s, filler lifting 8-10s, full discharge ≤40s, high daily waste handling efficiency.

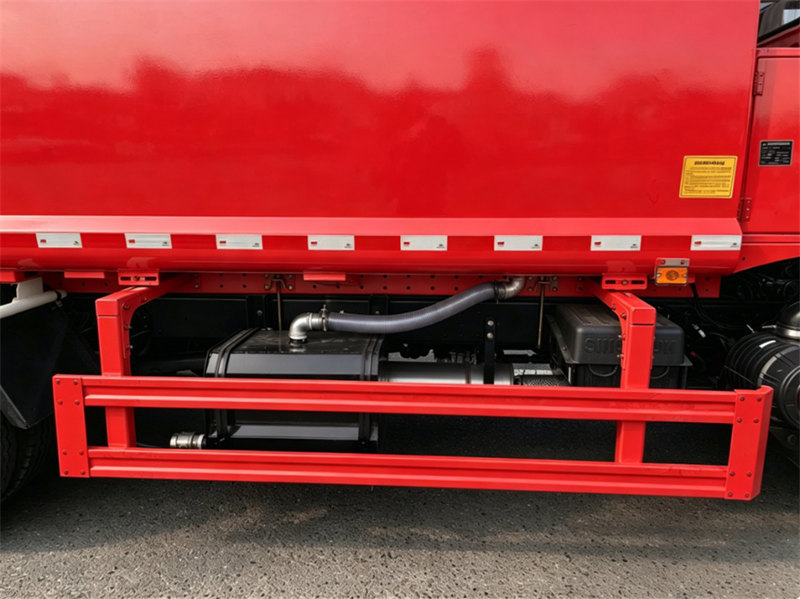

♦ Sewage anti-leakage design to avoid secondary pollution
Equipped with independent front & rear sewage tanks (250L+150L), fully collect waste sewage during collection and transportation, no dripping on road surfaces.

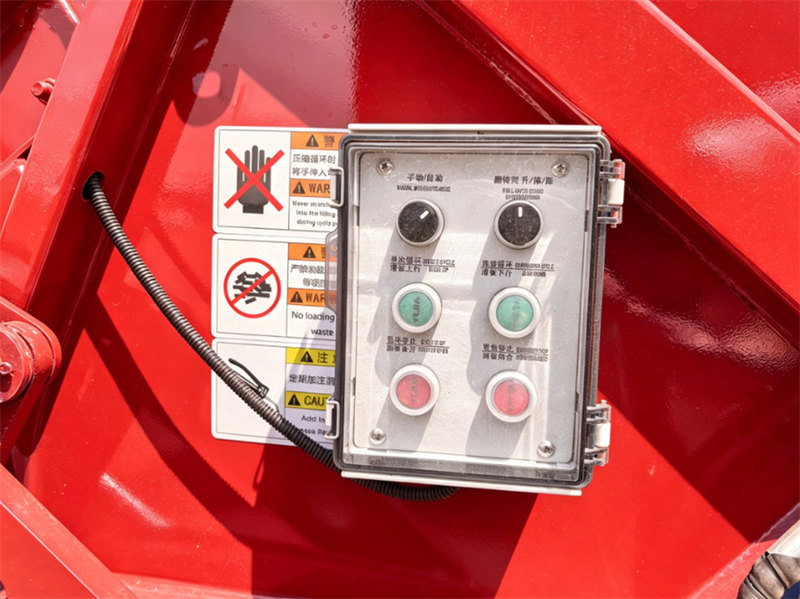

♦ Dual backup control system
Combined CAN-bus electric intelligent control + hydraulic manual emergency control, flexible operation; manual control can still work normally when electric parts fail, lower failure risk.
♦ Robust thickened steel body
Key structural parts adopt thickened steel plates, fine laser cutting and automatic welding technology, anti-collision and anti-deformation, long service life under frequent compression work.
✦Ⅳ.Core Funcations and Working Principles:

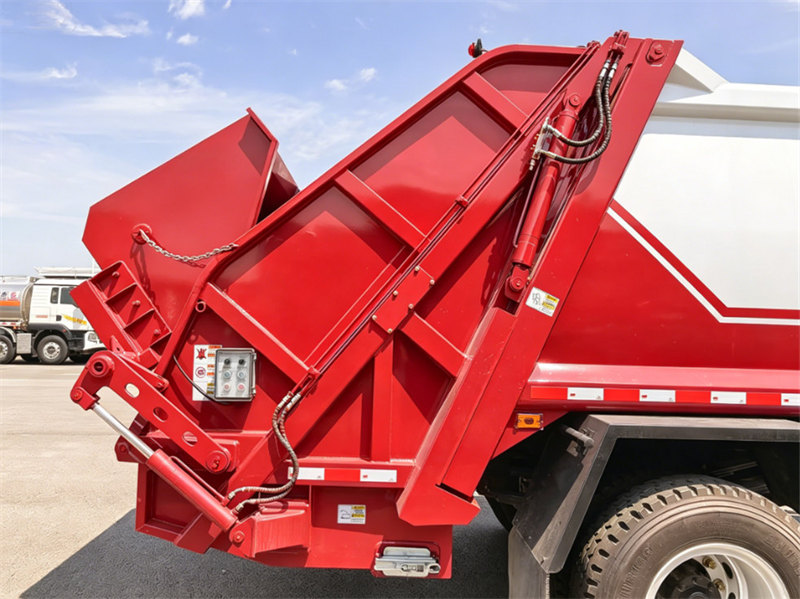

1.Loading and Collection:
Workers empty waste from garbage bags or bins into the rear hopper

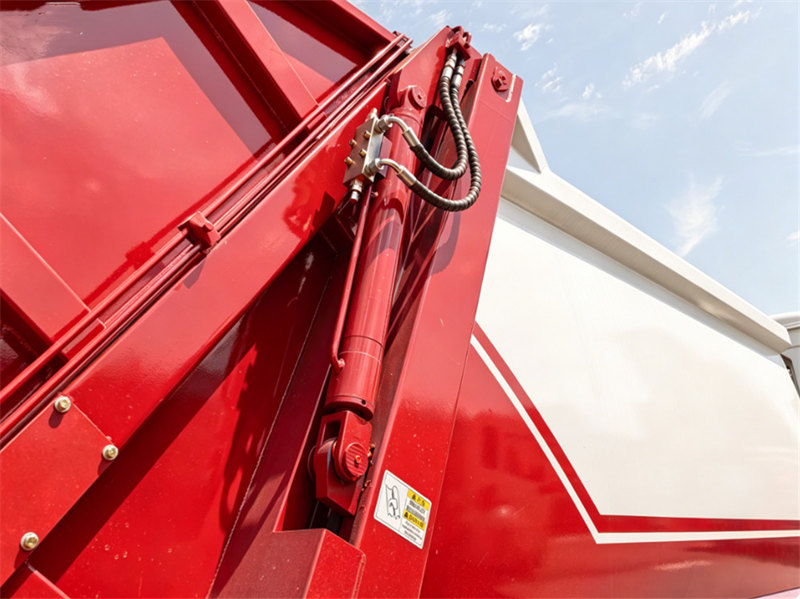

2.Hydraulic Compaction:
Powerful hydraulic slides and scrapers (pressure up to 80,000 lbs) push the waste from the hopper into the truck bed and compress it forcefully.
This compaction ratio is typically between 5:1 and 6:1, significantly increasing the capacity of a single transport.
3. Unloading:
Upon arrival at the landfill, the rear of the truck rises, and pushers inside the truck bed eject the compressed waste as a whole.
