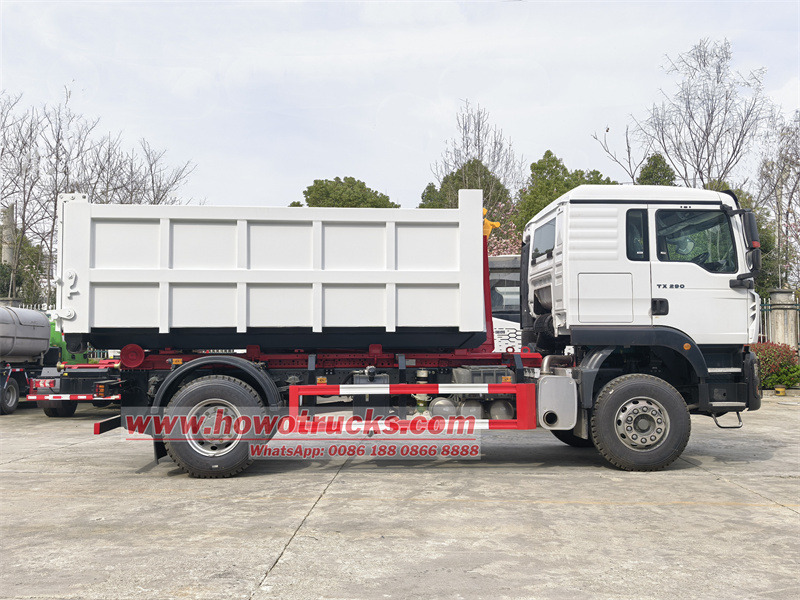

Sinotruk HOWO TX Hook Lift Garbage Truck
HOWO TX RHD 290HP Roll off Garbage Truck
HOWO TX RHD hook lift truck with container
SINOTRUK HOWO 4x2 Palfinger hook arm garbage truck
HOWO TX RHD 15tons roll on roll off truck
Howo TX 4x2 hook loader truck
HOWO TX RHD hook lift truck
HOWO 4x2 Palfinger hook arm garbage truck

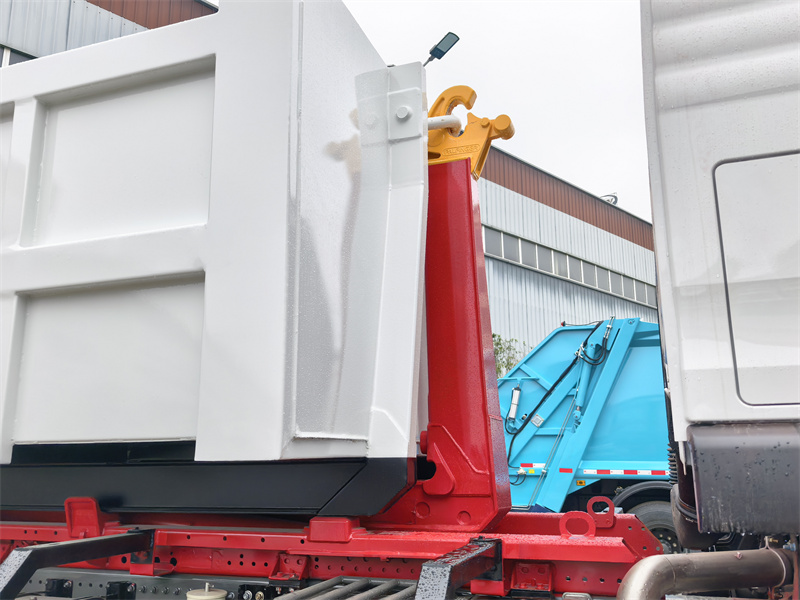

palfinger hook lift device
palfinger hook lift device

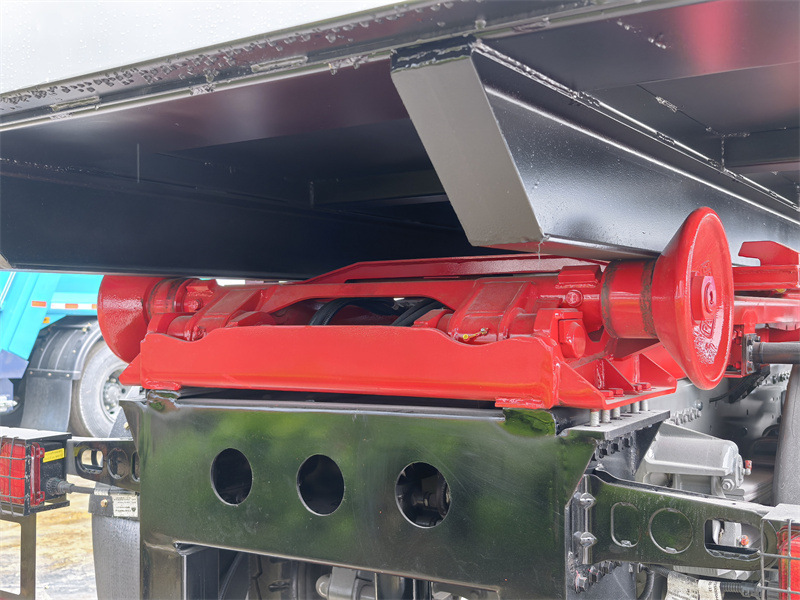

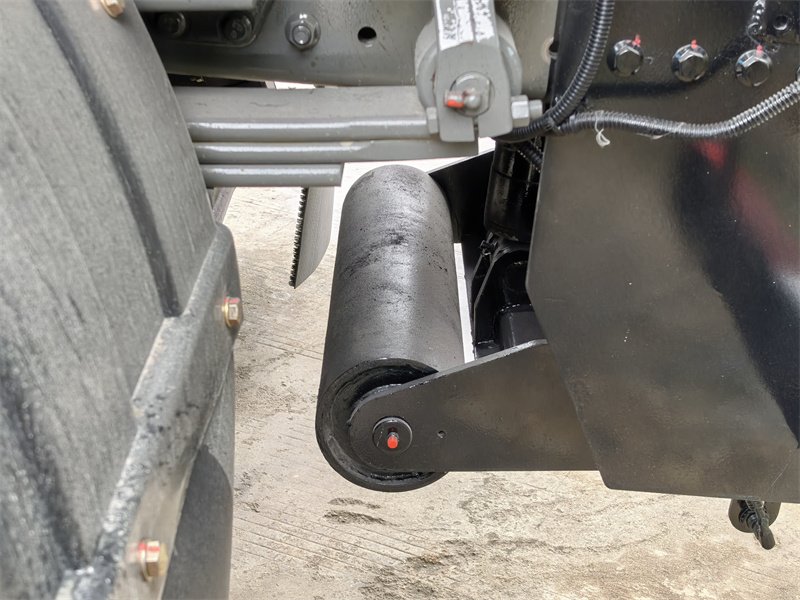

roller
resr support leg

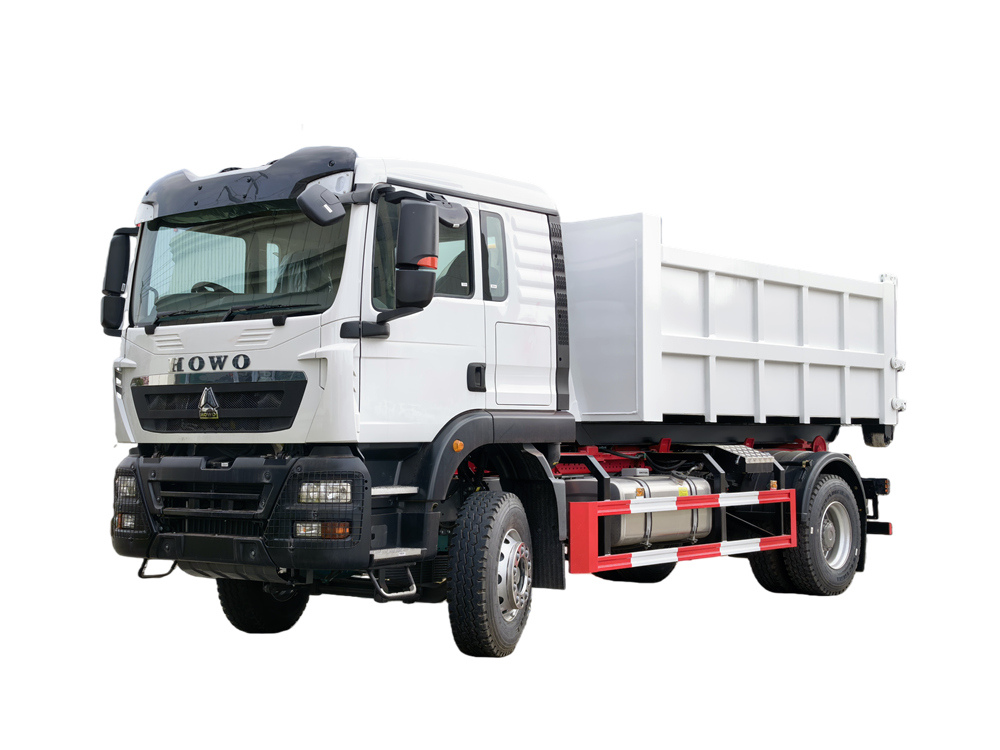

Howo 10 Ton arm roll off garbage truck

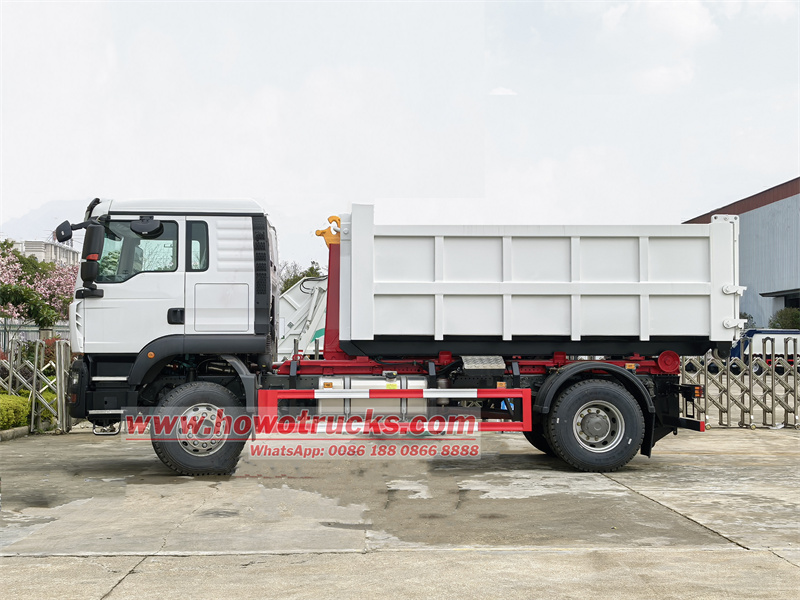

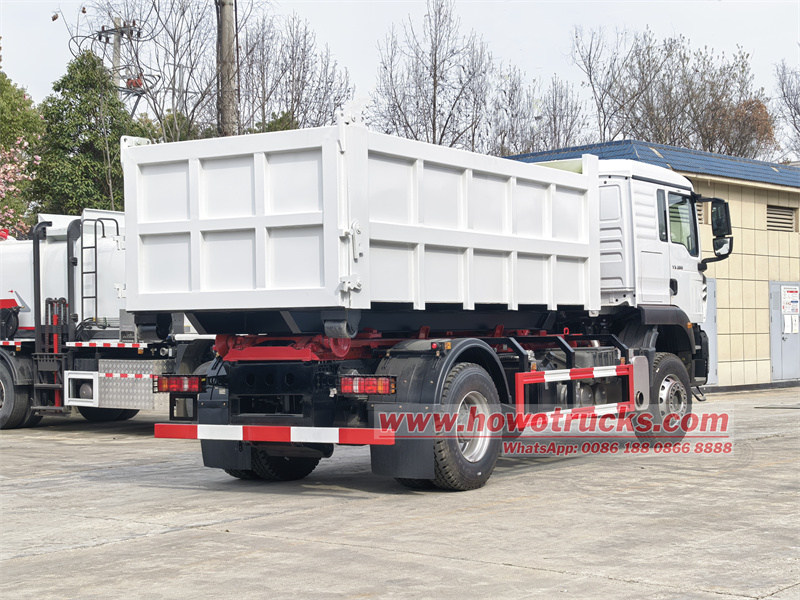

The HOWO TX290 hooklift garbage truck features a right-hand drive cab, a 4500mm wheelbase, and a Sinotruk WD615.87 290HP engine. The superstructure utilizes a Palfinger Q460 high-strength steel hooklift assembly. The carbon steel cargo box measures 5000*2300*1200mm and can carry 10-15 tons. It includes rear outriggers, a tailgate locking device, and operating levers in the cab and the left of the container.

  • Ishlash qobiliyati :

    10T

  • Idish turi :

    Howo TX one and half row cabin

  • Drayv tizimi :

    4x2,RHD

  • G'ildirak bazasi (mm) :

    4500 mm

  • Dvigatelga xos :

    290 HP / WD615.87

  • Vites qutisi :

    SINOTRUK 8-speed, manual

  • Old o'q (kg) :

    7000

  • Orqa aks (kg) :

    16000(2 axles)
Hozir so'rang
MAHSULOT TOIFALARI
Yangi mahsulotlar

The Howo 10 Ton Arm Roll-Off Garbage Truck is built on the mature chassis of the Sinotruk HOWO TX series, featuring a right-hand drive cab and a Sinotruk 290hp engine. The hook-arm system can carry 10-15 tons of weight. The entire vehicle integrates garbage collection, transfer, and self-unloading, and can be equipped with multiple containers, resulting in high operational efficiency. It is widely used for urban and rural domestic waste transfer, construction waste cleaning, and industrial waste transportation.



*Howo 10 Ton Arm Roll-Off Garbage Truck*

-----------------------------------------------------------------

Howo 10 Ton arm roll off garbage truck

◆ Product Performance:

1. Golden Powertrain: 290hp engine + 4500mm short wheelbase provides better off-road capability and stronger heavy-load start-up and hill-climbing ability.



2. Imported Core Technology: The upper structure hook arm adopts Palfinger technology, resulting in high lifting force, stable system pressure, and long service life.



3. Precise Right-Hand Drive Adaptation: Developed specifically for the export market, not aftermarket, ensuring compliance and safety of the steering system, instrument layout, rearview mirror visibility, and windshield wipers.



4. Multi-Purpose: Allows for quick replacement of different types of cargo boxes, improving vehicle utilization and reducing purchase costs.



◆ Product Technological Parameters:



HOWO TX 4x2 RHD hook loader garbage truck

VEHICLE PARAMETERS

Vehicle model

CS5180GXH

Chassis brand

HOWO

Overall dimensions

8050x2500x3350mm

Wheel base

4500mm

GVW

18000kg

Curb weight

8750kg

Container dimensions

5000x2300x1200mm

Drive type

4x2,RHD

Cab

Configuration

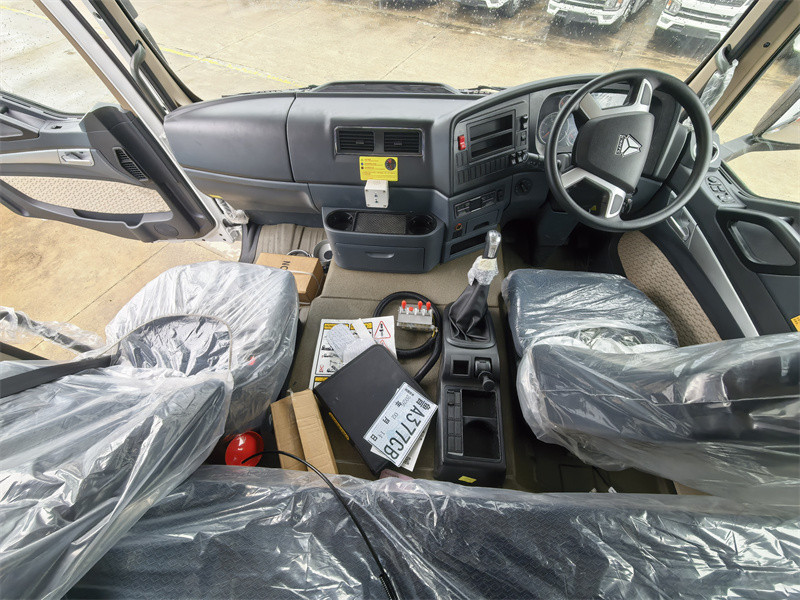

HOWO TX 290 one and half cab, with air conditioner, allowable 3 passengers, with ABS, with air suspension seat

Engine

Model

SINOTRUK WD615.87

Emission

Euro 2

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine

Rated power

290HP / 213kW

Displacement

9726ml

Rated speed

2200rpm

Max.torque

1160N.m

Max.torque speed

1100-1600rpm

Tire

Size

295/80R22.

Number

6+1 pcs

Front axle loading

7tons

Rear axle loading

16tons

Transmissions

SINOTRUK 8-speed,manual

LIFTING SYSTEM

Hooking ability

10T

Garbage bin material

Carbon steel

Sidewalls

Sheet carbon steel (thickness: 6 mm)

Bottom

Sheet carbon steel (thickness: 8 mm)

Container dimensions

5000x2300x1200mm

Dump type

Hydraulic cylinder lifting and self-loading

Hook center height

1570mm

Discharge time

30-45S

Max dump angle

50°

Hydraulic system pressure

26MPa

Standard equipment

Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank,  Hydraulic strengthen rear outrigger.

Operation way: Manual and Wireless remote control operation.

One dumper box



HOWO RHD 15tons Roll off container truck



◆ Chassis:

• Cabin: HOWO TX Right-hand drive cab

• Wheelbase: 4500mm

• Engine: Sinotruk WD615.87 290HP Diesel Engine

• Transmission: Sinotruk 8-speed transmission



◆ Upper Structure:

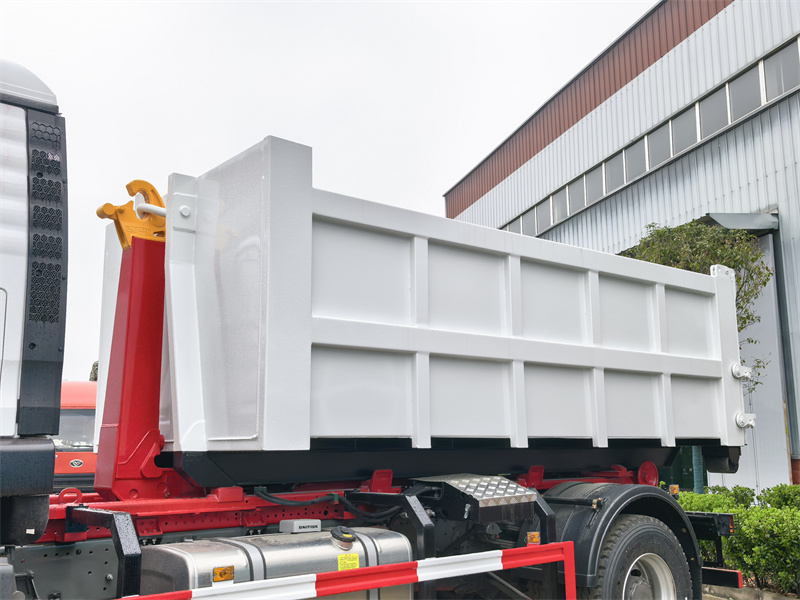

• Hook Arm Device: Palfiner High-Strength Hook Arm



• Material: Core components are made of Palfiner high-strength steel, with high yield strength and excellent fatigue resistance, ensuring no deformation or cracking under heavy load conditions.



• Structure: Adopts the internationally mainstream "hook-arm type" structure, possessing three major functions: "container loading and unloading," "waste self-unloading," and "container lifting."

  • Sinotruk HOWO TX Hook Lift Garbage Truck
  • HOWO TX RHD 290HP Roll off Garbage Truck
  • HOWO TX RHD hook lift truck with container



• Control: Electro-pneumatic operation, controllable from both inside and outside the cab (controlling the forward and backward movement and lifting of the hook arm device, the extension and retraction of the rear hydraulic outriggers, and the locking/unlocking of the hook head), safe and convenient. The hydraulic system uses imported seals for precise connection, smooth lifting, and no leakage.





◆ Container:



• Dimensions: 5000×2300×1200mm;



• Material and Workmanship: The garbage body is welded from high-strength carbon steel plates, with reinforced bottom and side plates for wear and corrosion resistance;



• Load Capacity: Safely holds 10-15 tons of garbage or bulk materials, meeting heavy-duty transport needs.

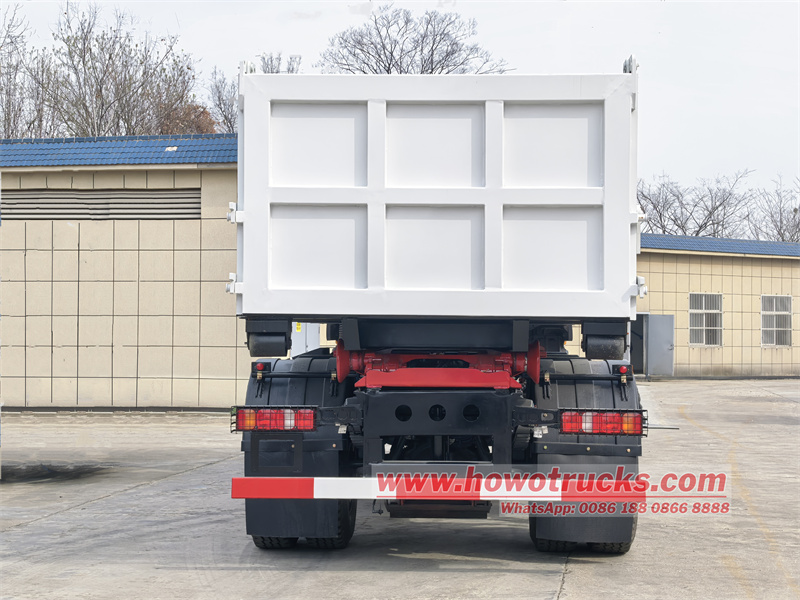

• Rear Door: Optional hydraulic locking or manual sealing rear door effectively prevents secondary contamination (sewage leakage) during transportation.



◆ Application Scenarios:

The HOWO TX290 hooklift garbage truck is widely used in:



• Daily garbage collection by urban sanitation departments;

• Waste transfer at construction sites and industrial parks;

• Temporary garbage disposal for large events;
