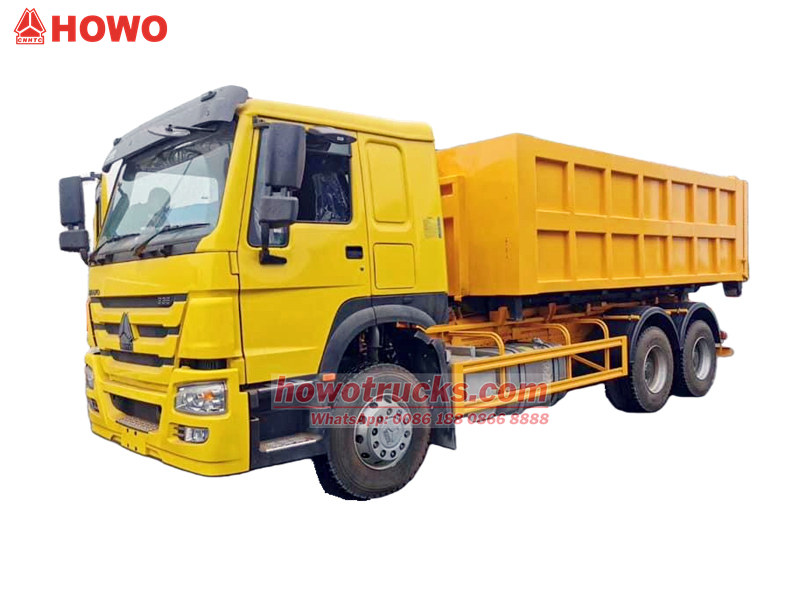

Howo 340HP roll off container garbage truck

The Howo 340HP roll-off container garbage truck is a high-end sanitation vehicle specifically designed for heavy-duty garbage transfer. Its core features are "large load capacity, high efficiency, and strong adaptability." It is primarily used for the sealed transfer of compressed and reduced-volume household waste at garbage transfer stations, as well as for the collection and transport of bulk and heavy-duty garbage from industrial parks, large communities, and main urban roads. It serves as a crucial hub connecting garbage collection and final disposal.

  • Ishlash qobiliyati :

    100 min

  • Idish turi :

    Howo TX double cabin

  • Drayv tizimi :

    4x2

  • G'ildirak bazasi (mm) :

    4600

  • Dvigatelga xos :

    350 Hp / MC07H.35-60

  • Vites qutisi :

    HW19710,10 forwards & 2 reverses

  • Old o'q (kg) :

    7500

  • Orqa aks (kg) :

    13000
Hozir so'rang
MAHSULOT TOIFALARI
Yangi mahsulotlar

The Howo 340HP roll off container garbage truck is a high-end sanitation vehicle specifically designed for heavy-duty garbage transfer. Its core features are "large load capacity, high efficiency, and strong adaptability." It is primarily used for the sealed transfer of compressed and reduced-volume household waste at garbage transfer stations, as well as for the collection and transport of bulk and heavy-duty garbage from industrial parks, large communities, and main urban roads. It serves as a crucial hub connecting garbage collection and final disposal.



The Howo garbage hook lift truck breaks away from the limitations of traditional garbage trucks, which are limited to "single-operation and limited load capacity." Adopting a core design logic of "one truck, multiple containers, and cyclical operation," it can be matched with sealed garbage containers of different sizes, achieving integrated and efficient garbage collection, transfer, and unloading operations. This eliminates the need for frequent trips to garbage disposal sites, significantly improving sanitation work efficiency



Howo garbage hook lift truck



*Howo Heavy Garbage Hook Lift Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



✦Ⅰ.Product Parameter For Howo Roll Off Container Garbage Truck «««



Howo garbage hook lift truck

Best Choice,Howo Trucks

⇓ ⇓ ⇓




Howo heavy 20tons hooklift truck

Vehicle model

CSC522503GBL

Dimension(L×W ×H)(unloaded)(mm)

11300*2550*3340mm

Garbage bucket capacity

20CBM

Approaching angle/Departure angle(°)

21/27

Wheel base (mm)

4600+1750

Max speed(km/h)

105

GVW

25000kg

Curb weight(kg)

12500kg

Loading Weight(kg)

20 tons

Engine

Model

WP10.340E22,water-cooled,4 strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection

Fuel type

Diesel

Power

340HP/250Kw

Emission

EURO 2

Displacement

9.8L

Rated speed

1800rpm

Max.torque

1250N·m

Fuel tanker capacity(L)

400L

Transmission

Model

HW 10 speed,manual

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Front axle

Steering with double T-cross section beam

Rear axle

Pressed axle housing, central double reduction with differential locks between axles and wheels

Cab

Configuration

Howo single row cab, with air conditioner, allowable 2 passengers, with ABS, with air suspension seat

Tyre

Size

12.00R20 Tire, With one spare tire

Number

10+1 pcs

Electrical system

Battery

24V

Alternator

28V-1500kw

LIFTING SYSTEM

Lift capacity

20tons

Garbage bin material

Carbon steel

Sidewalls

Sheet carbon steel (thickness: 5 mm)

Bottom

Sheet carbon steel (thickness: 6 mm)

Discharge time

50S-55S

Discharge system

lifting/dump type

Max dump angle

45°

Hydraulic system pressure

16Mpa

Standard equipment

Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank,  Hydraulic strengthen rear outrigger.

Operation way: Manual and Wireless remote control operation.

One dumper box,



Howo garbage hook lift truck

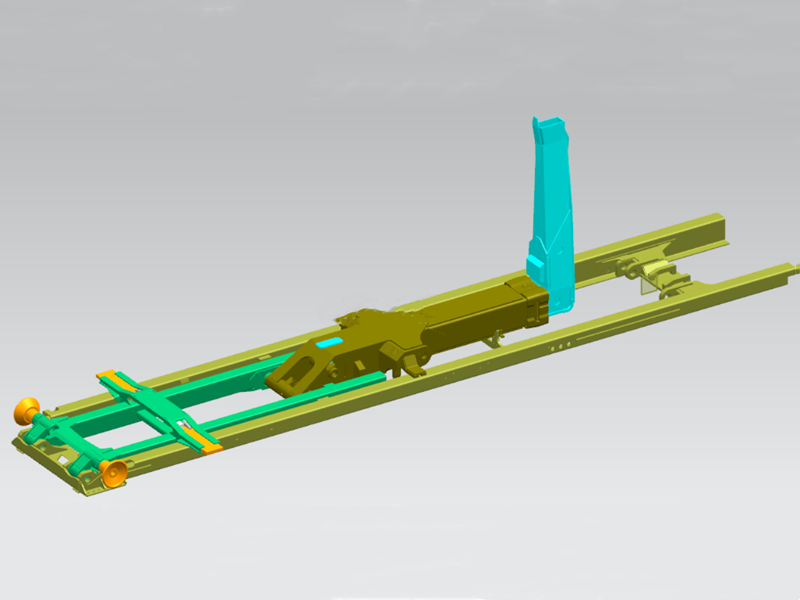

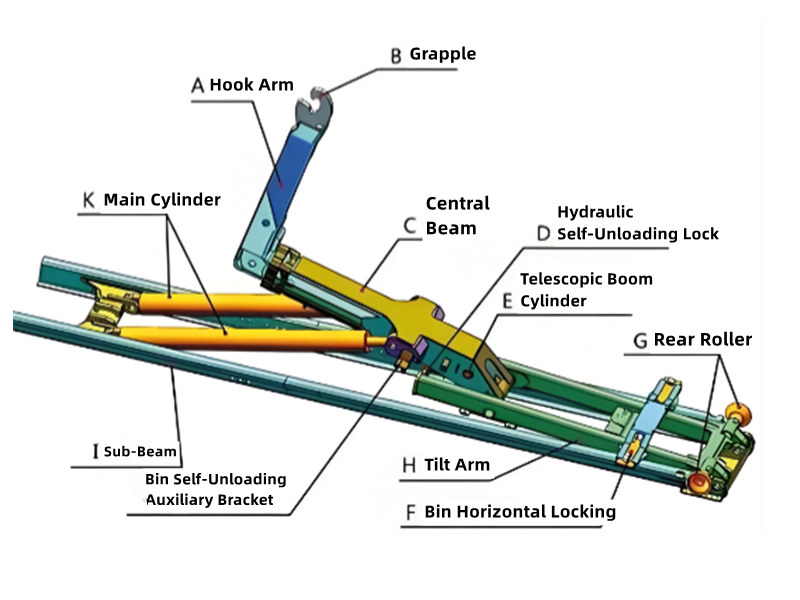

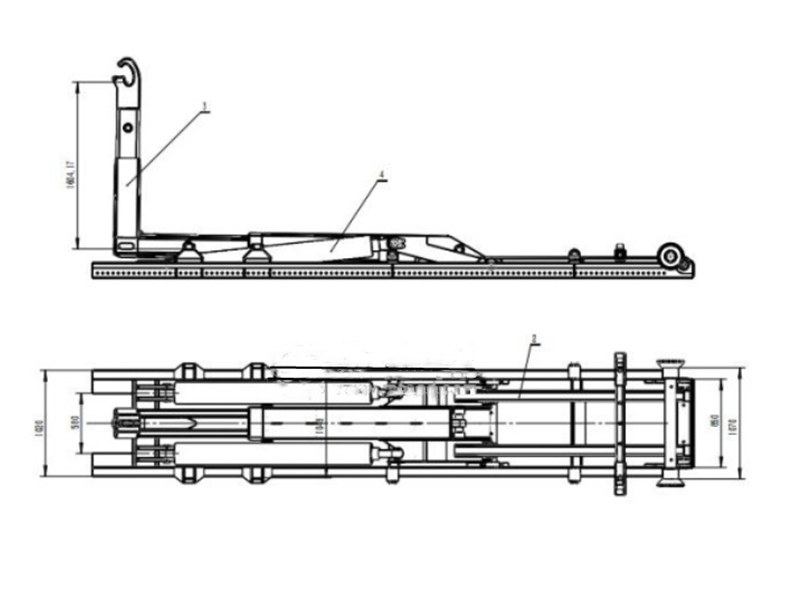

✦Ⅱ.Design Draw for Hook Lift Upper Body «««



Howo garbage hook lift truck



Howo 340HP roll off container garbage truck

✦Ⅲ.Advantage For Howo Roll Off Container Garbage Truck «««

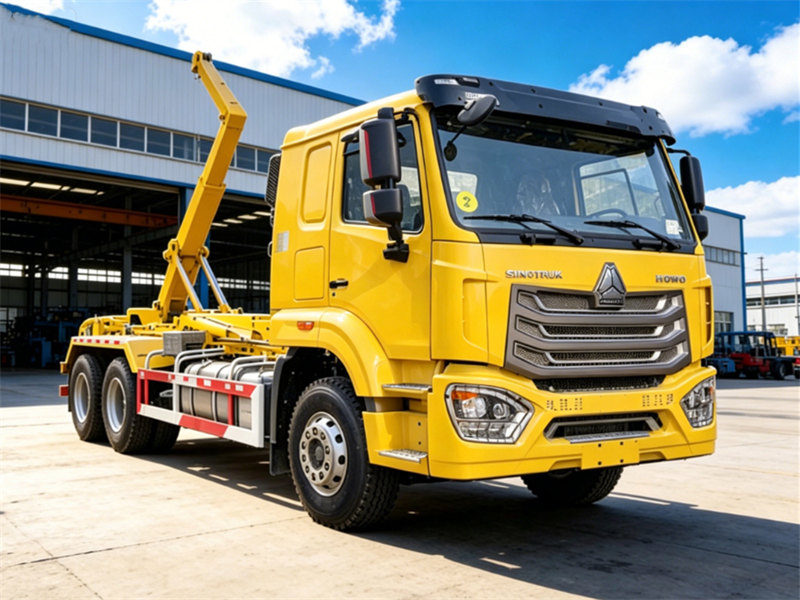

Howo garbage hook lift truck

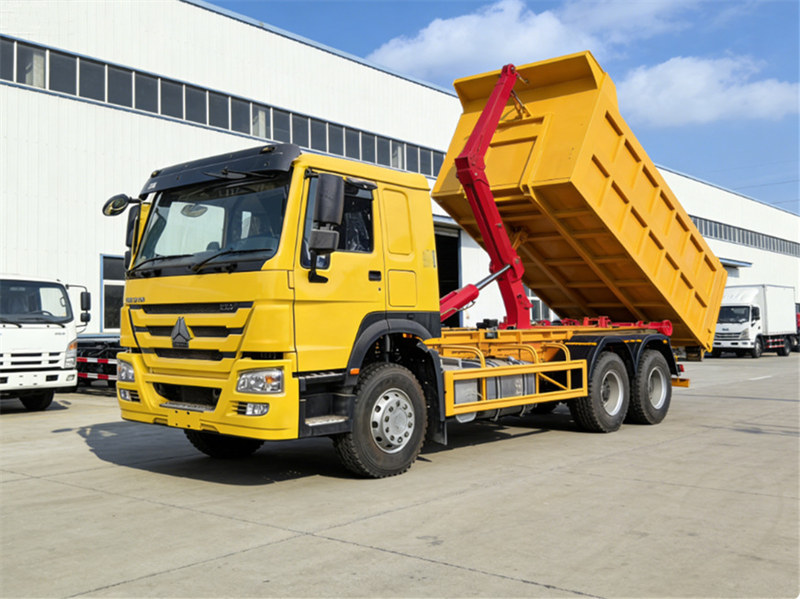

Heavy Duty and High Efficiency:

♦ The Howo garbage hook lift truck has a rated load capacity of 30 tons and a garbage bin volume of up to 20 CBM

♦ Its single-trip transport capacity far exceeds that of ordinary vehicles, significantly reducing the number of transport trips

♦ The hydraulic lifting system has a maximum lifting capacity of 25 tons, with an unloading time of only 50-55 seconds and a maximum tilting angle of 45°

♦ Combined with a hydraulic system pressure of 16 MPa, it can quickly complete garbage unloading operations, avoiding operational delays caused by garbage accumulation

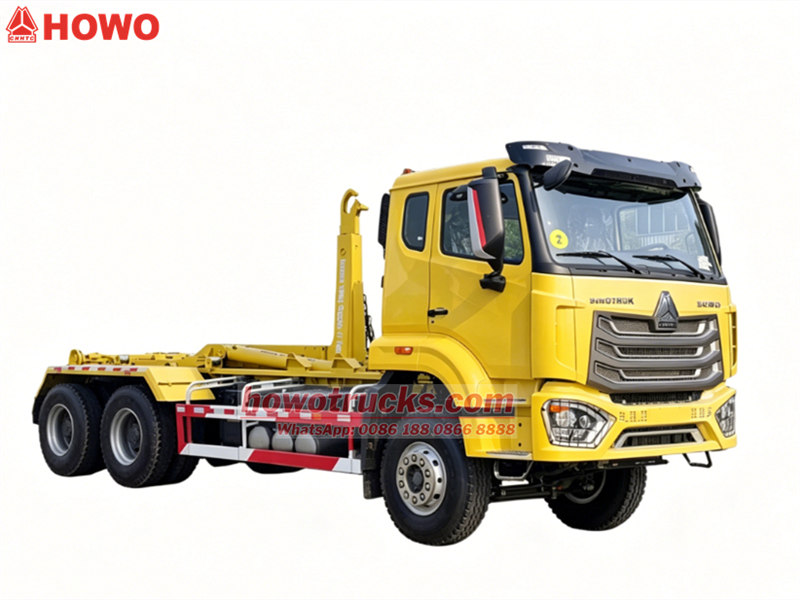

Howo garbage hook lift truck

Easy Operation:

♦ The Howo roll-off container garbage truck features both manual and wireless remote control operation modes.

♦ Manual operation is available for close-range work, while wireless remote control can complete the entire process of loading, unloading, and other operations from a distance or in complex environments.

♦ Eliminating the need for close contact with garbage improves operational safety and reduces labor intensity.



Howo garbage hook lift truck

Robust Structure:

♦ The Howo hook lift truck's cargo box is constructed from high-quality Q235 carbon steel, with side panels up to 5mm thick and a floor panel up to 6mm thick.

♦ Following a fully sealed welding process, it not only boasts high structural strength, capable of withstanding the impact of heavy-duty garbage, but also possesses excellent corrosion and deformation resistance, effectively preventing secondary pollution caused by garbage and sewage leakage.

♦ The front axle features a double T-section beam steering system, while the rear axle is a stamped axle housing with a central dual-stage speed bump and inter-axle and inter-wheel differential locks, enabling it to adapt to heavy-load driving and complex road conditions.

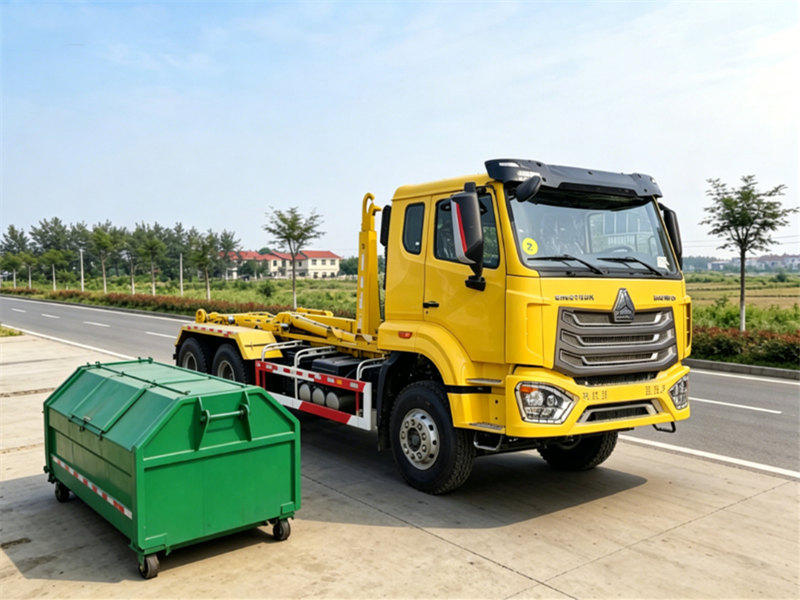

✦Ⅳ.Application for Howo Garbage Hook Lift Truck «««



♦ The 30-ton load capacity and 20 CBM garbage bin volume perfectly solve the pain points of "small single-trip transfer volume and frequent round trips."

♦ Combined with a top speed of 105 km/h, it significantly shortens transfer time and improves overall waste collection efficiency.

♦ It can save 3-4 hours of operating time per day, significantly reducing labor and fuel costs.

♦ The "one truck, multiple bins" operating mode further enhances the vehicle's adaptability.



Howo garbage hook lift truck

( Howo 340HP roll off container garbage truck )



Howo garbage hook lift truck

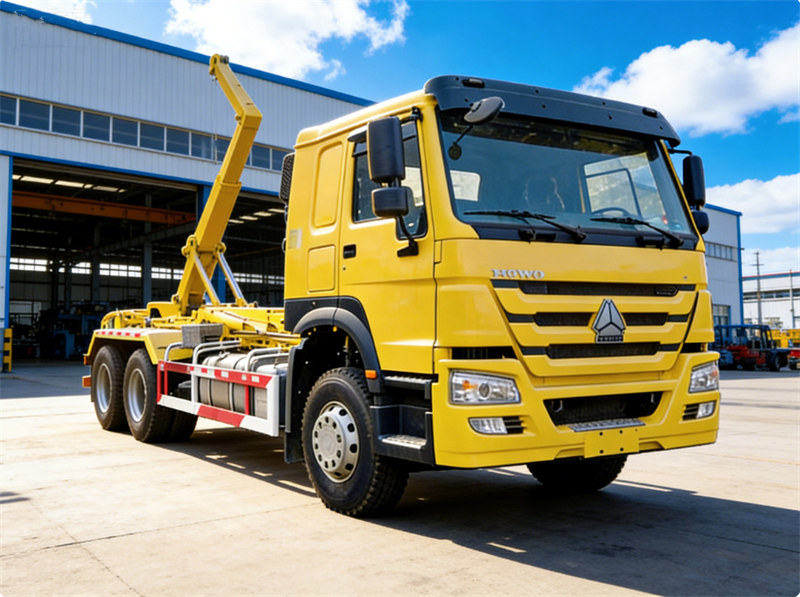

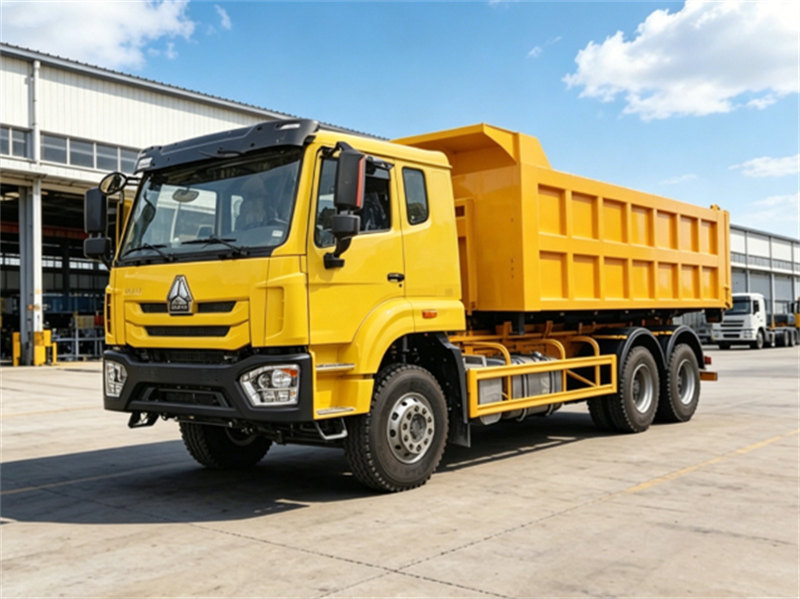

( Howo 20CBM garbage hook lift truck )



Howo 340HP roll off container garbage truck

( Howo 340HP garbage hook lift truck )



China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



Howo 20CBM garbage hook lift truck



Howo 20CBM garbage hook lift truck
