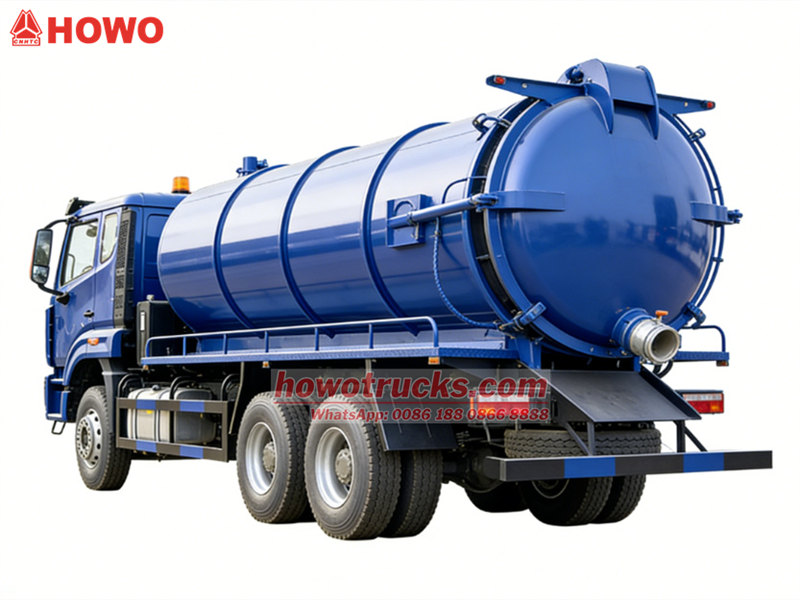

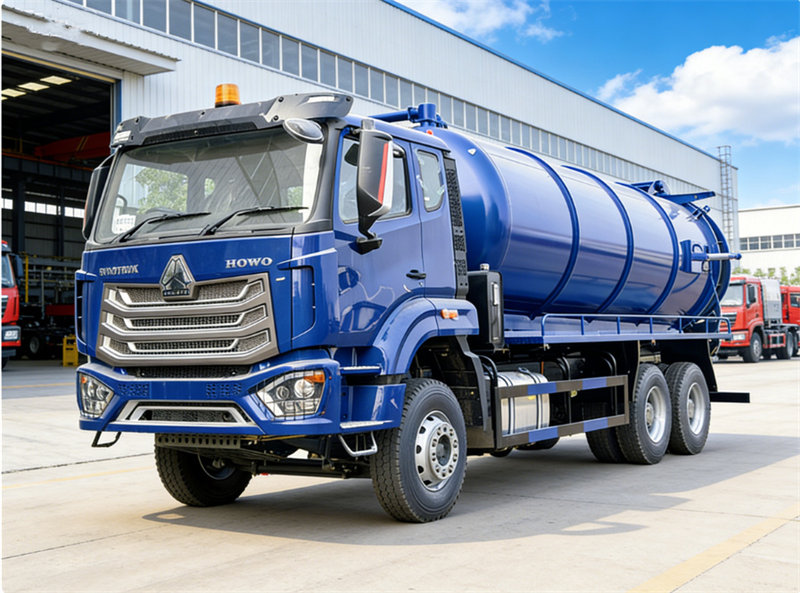

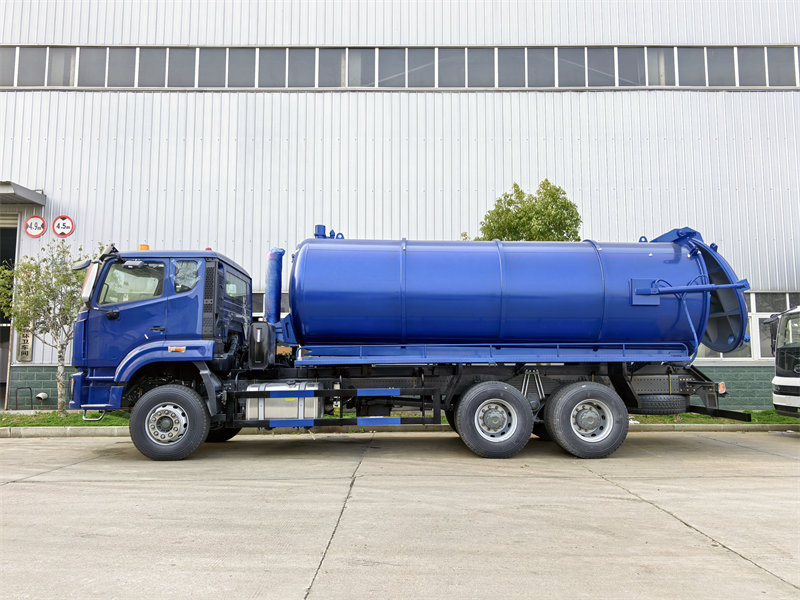

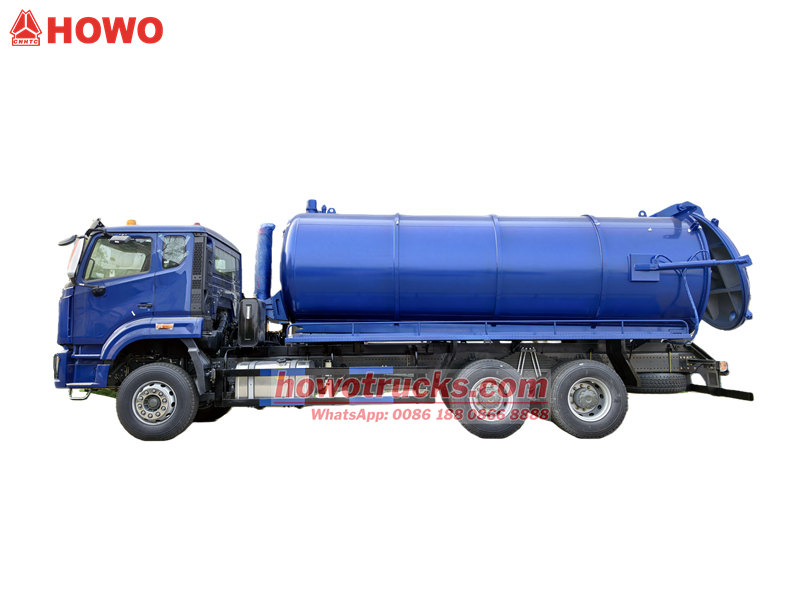

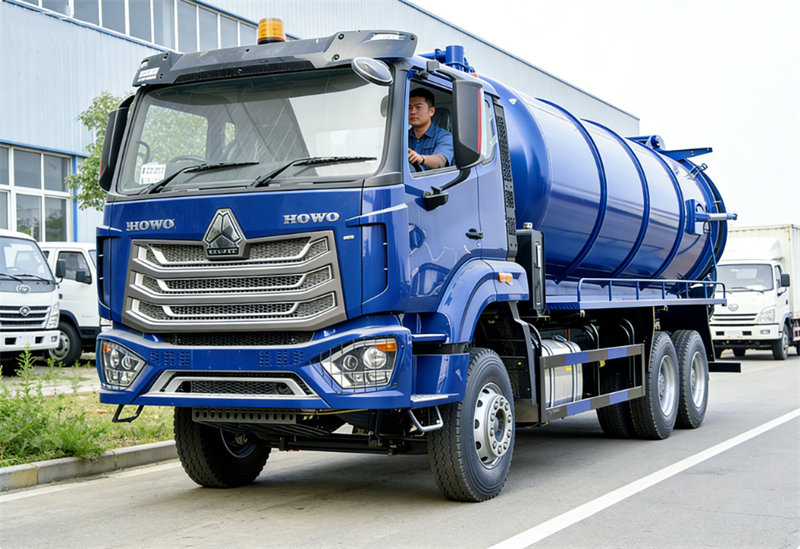

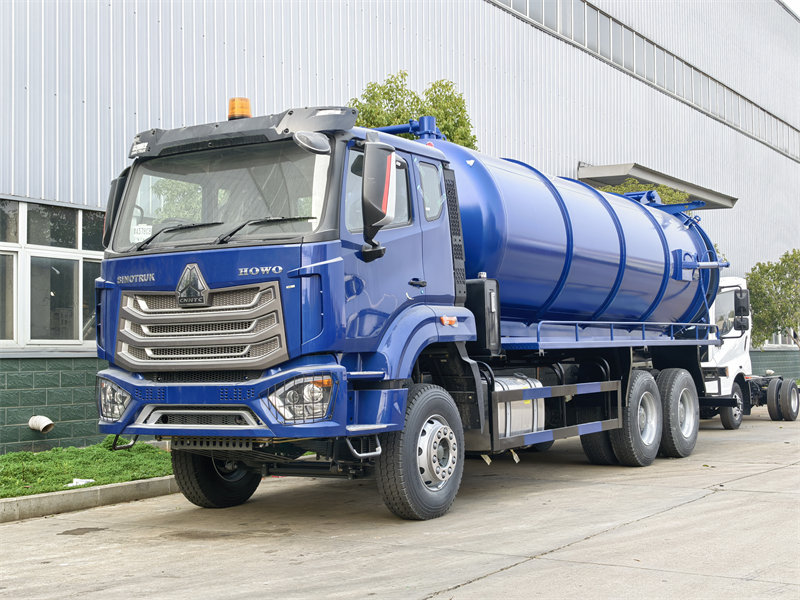

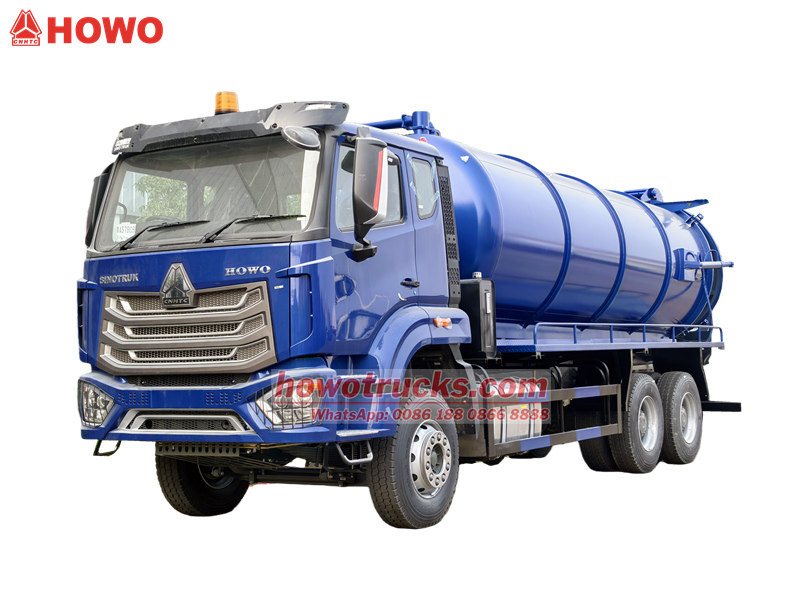

Howo 20 CBM drainage sewer cleaning truck
The Howo 20 CBM sewer tank truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.
Ishlash qobiliyati :
20000 litersIdish turi :
HOWO single cabin with sleeper and A/CDrayv tizimi :
6×4G'ildirak bazasi (mm) :
10300*2580*3250 mmDvigatelga xos :
340HP/WP10.340E22Vites qutisi :
HW19710, 10 Forward & 2ReverseOld o'q (kg) :
7.5TOrqa aks (kg) :
13 T*2The Howo 20 CBM drainage sewer cleaning truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.
CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: Howo heavy truck chassis, 6X4 or 6x6 model
WP model with 340HP and Euro 2,3
2. Tank material: 6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy can be choose
3. Vacuum Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
Optional famous Imported pump
|

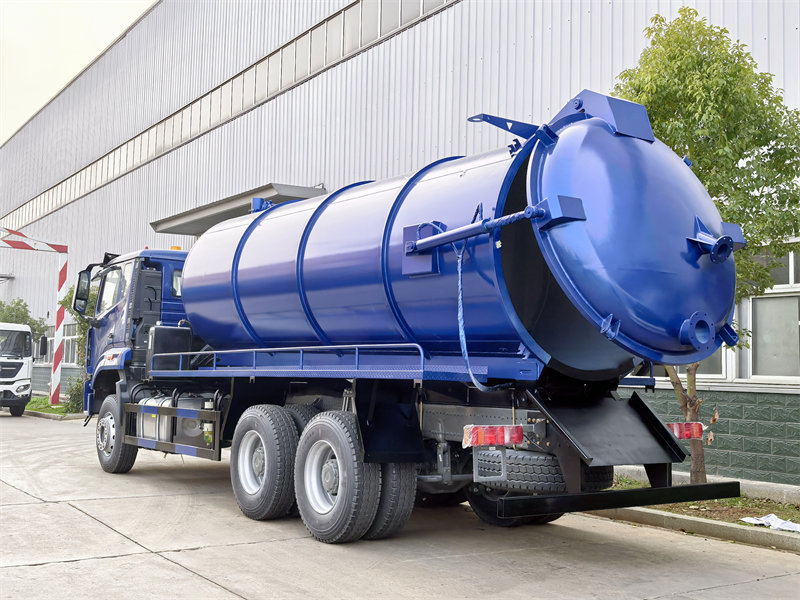

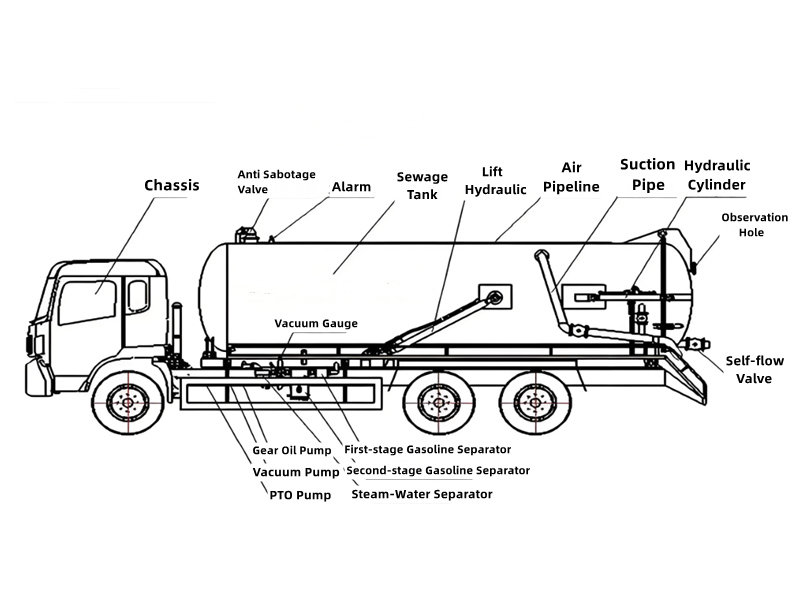

Howo heavy 20000L sewage tanker truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
8600*2350*3360mm |
|
|
GVW |
25000kg |
|
|
Curb weight |
9850kg |
|
|
Sewage tank (m3) |
20 |
|
|
Drive system |
6*4 |
|
|
Chassis Description |
||
|
Chassis brand |
Howo |
|
|
Steering |
LHD |
|
|
Cab |
Howo,single row, 2 seats,with A/C |
|
|
Wheelbase |
4600+1350 mm |
|
|
Tire specification |
12.00 R20 |
|
|
Tire quantity |
10 tires and 1 spare tire |
|
|
Engine |
Engine model |
WP10.340E22 |
|
Emission level |
EURO 2 |
|
|
Displacement |
9.8 L |
|
|
Horse power |
340HP |
|
|
Weight |
1365Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
10 speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
7.5T |
|
Rear |
13T*2 |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
400L |
|
|

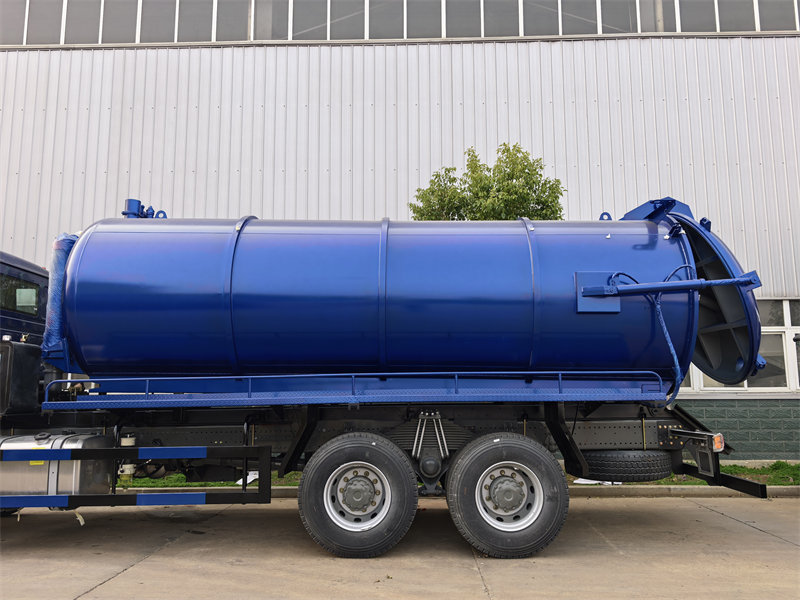

Tanker Description |
||
|
Tanker
|
Capacity |
20000 Liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump
|
Type |
Water circulation pump |
|
Flux |
60 (L/S) |
|
|
Rating speed |
800~1200(r/min) |
|
|
Shaft power |
7(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 3min, effective suction range ≥ 9, Max vacuum degree ≤ 18 KPa, dump angle ≥ 45° |
|
|
Standard configuration |
Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|

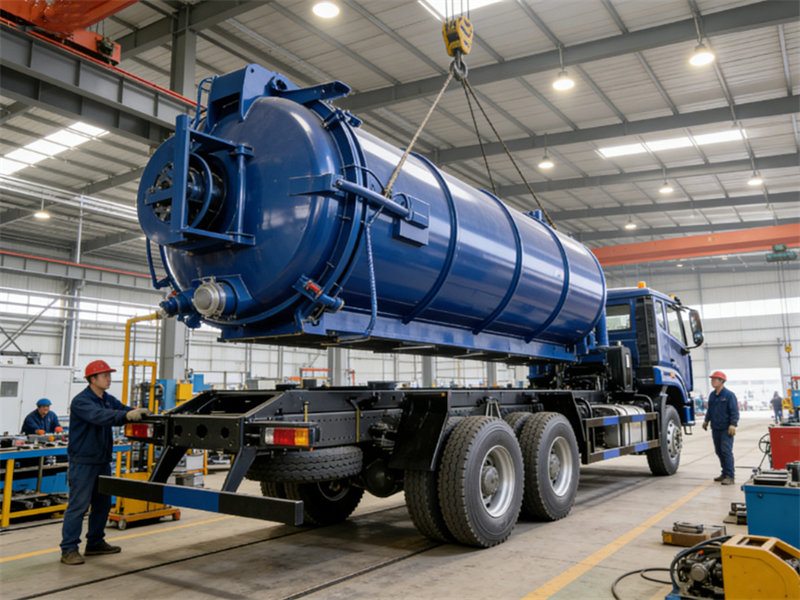

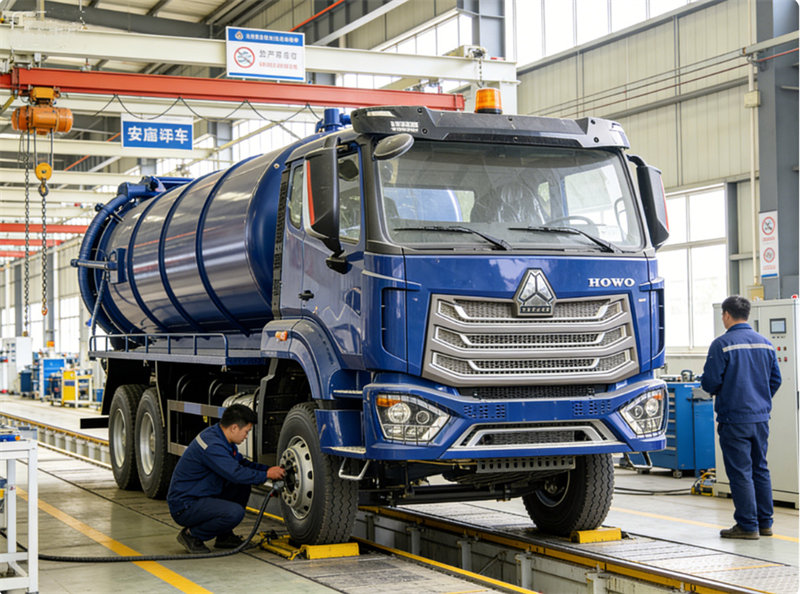

♦ Steel plates are cut using a fully computerized plasma cutting machine with a cutting accuracy of ±0.1mm, preventing plate deformation.
♦ The end caps are formed using a spin-forming process, resulting in a seamless, one-piece molding process with uniform stress distribution.
♦ A combined robotic automated welding and manual repair welding approach is employed.
♦Longitudinal and circumferential welds are welded symmetrically by two people simultaneously, maintaining a consistent welding speed and heat input to control welding deformation.
♦ Welds undergo 100% non-destructive testing, ensuring the absence of defects such as slag inclusions, porosity, cracks, and undercut. Weld strength is no less than that of the base material.
♦ After sandblasting, the entire tank body is coated with an anti-corrosion coating.
♦The thickness of both the inner and outer coatings meets standards (outer coating ≥80μm, inner coating ≥100μm), verified by salt spray testing.

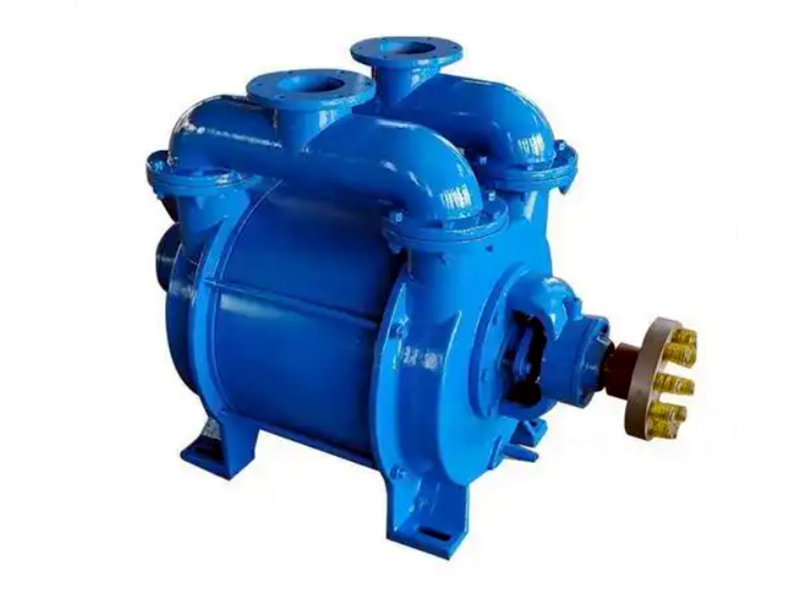

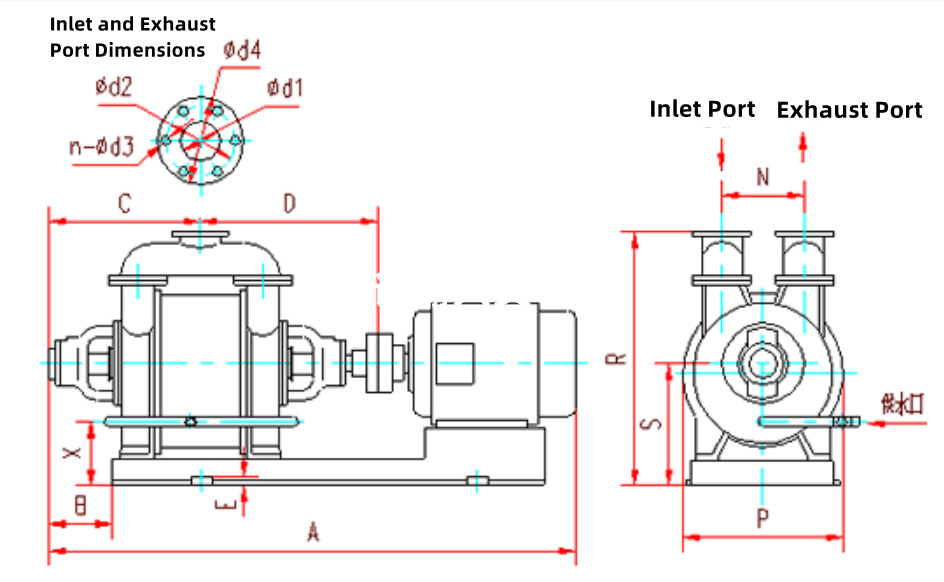

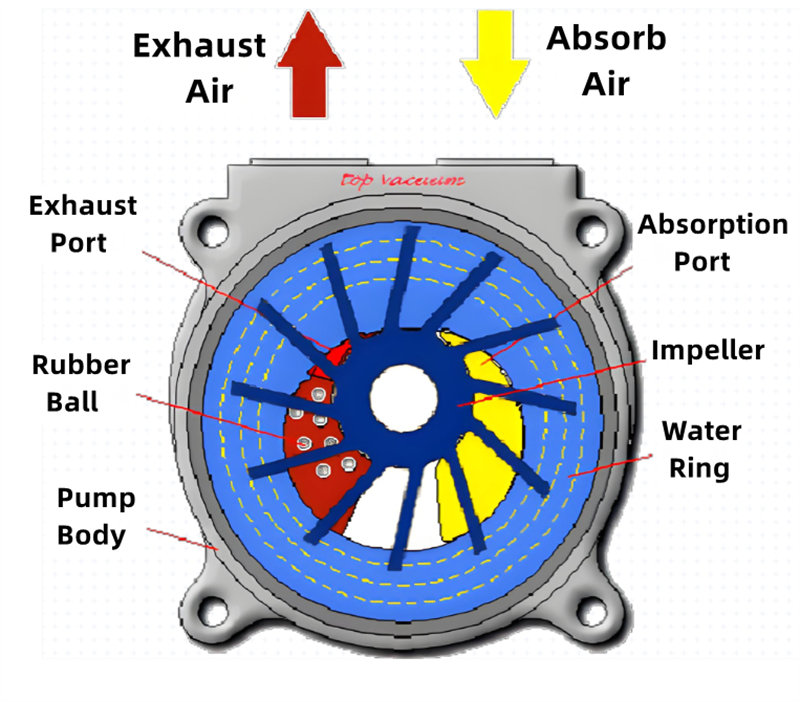

1. Equipped with an SK water-circulating vacuum pump, achieving a vacuum level ≥-0.09MPa, enabling rapid extraction of high-concentration sludge and viscous waste liquids. The vacuum level decreases by no more than 10% within 30 minutes, meeting the needs of high-level waste liquid extraction.
|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
489 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
512 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Max. Pressure |
psig |
29 |
|
Power required at 15" of vacuum |
hp |
20 |
|
Power required at max. pressure |
hpa |
38 |
|
Max. speed |
rpm |
1400 |
|
Working speed |
rpm |
1200 |
|
Oil tank capacity |
lt |
4.8 |
|
Oil consumption |
Gr/h |
210 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
80 |
|
Hose |
in |
3/4 |
|
Flange |
in |
- |
|
Weight |
lbs |
585 |

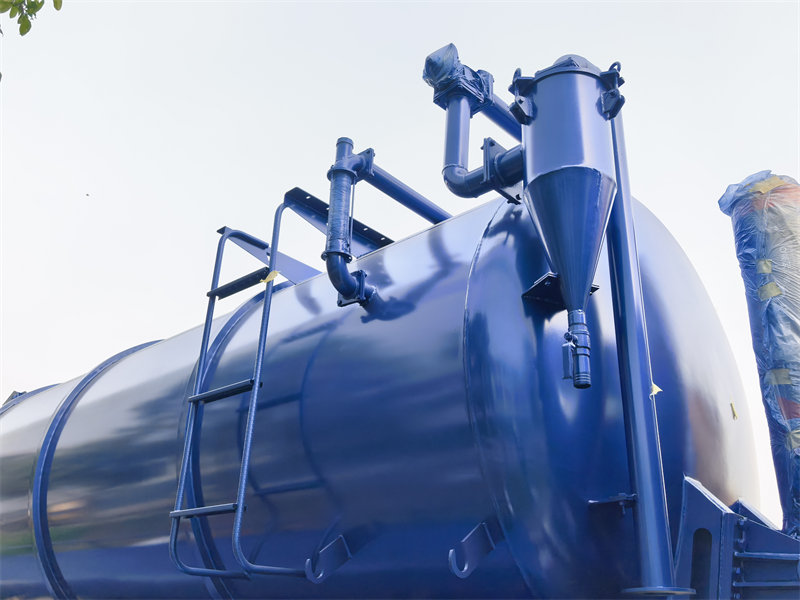

2. The piping system utilizes high-strength, corrosion-resistant materials with an inner wall smoothness Ra≤0.8μm, reducing fluid resistance.
3. Quick-connect fittings achieve an IP67 sealing rating, with a leakage rate of <0.1% at the connection point. It is also equipped with an anti-backflow device and an emergency shut-off system to prevent sewage backflow and secondary pollution.
♦ Appearance Inspection: Check tank flatness, coating integrity, and weld quality; no wrinkles, paint peeling, or incomplete welds are allowed.
♦ Performance Testing: Vacuum system test (vacuum degree ≥ -0.09MPa, pressure holding for 20 minutes with no significant drop), hydraulic system test (smooth lifting without jamming, no leakage), unloading test (smooth unloading at 45°, no leakage).
♦ Sealing Test: Tank body pressure stabilized at 80kPa for 5 minutes with no leakage; suction and discharge system pressure held at 15kPa absolute pressure for 20 minutes, leakage rate <0.1%.
