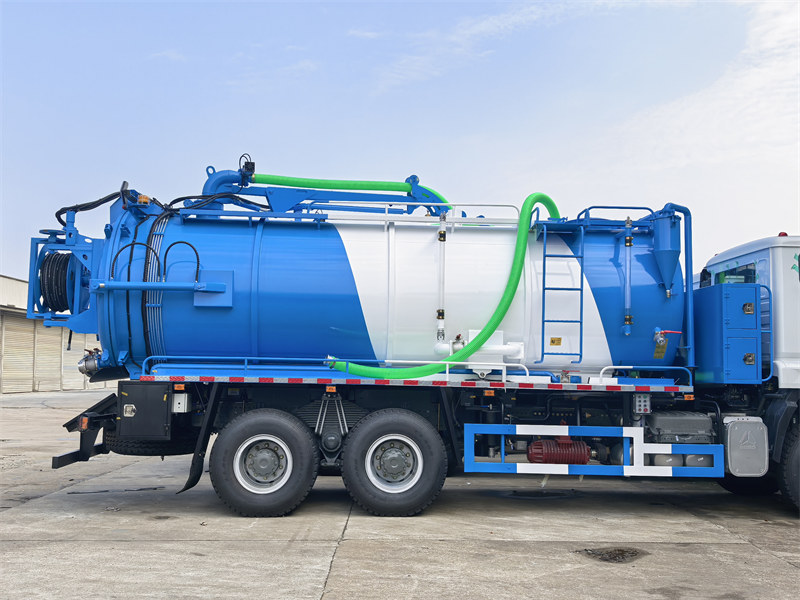

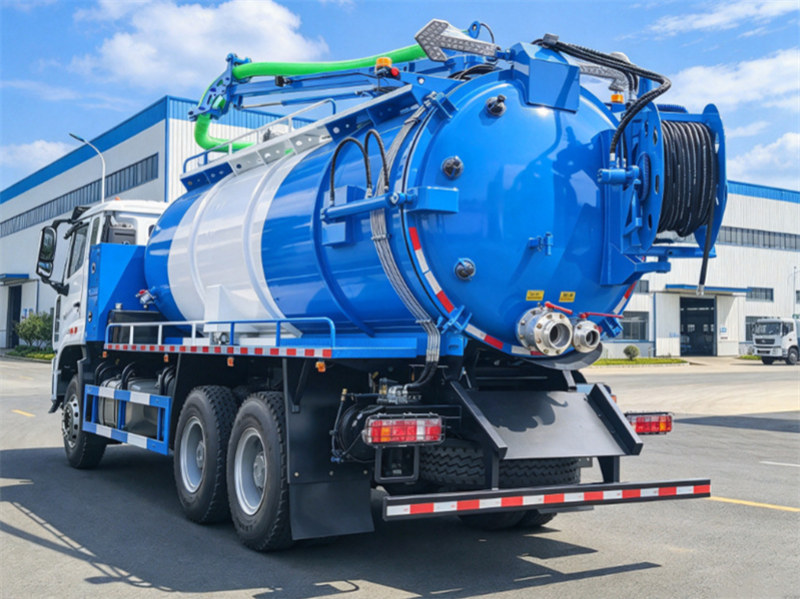

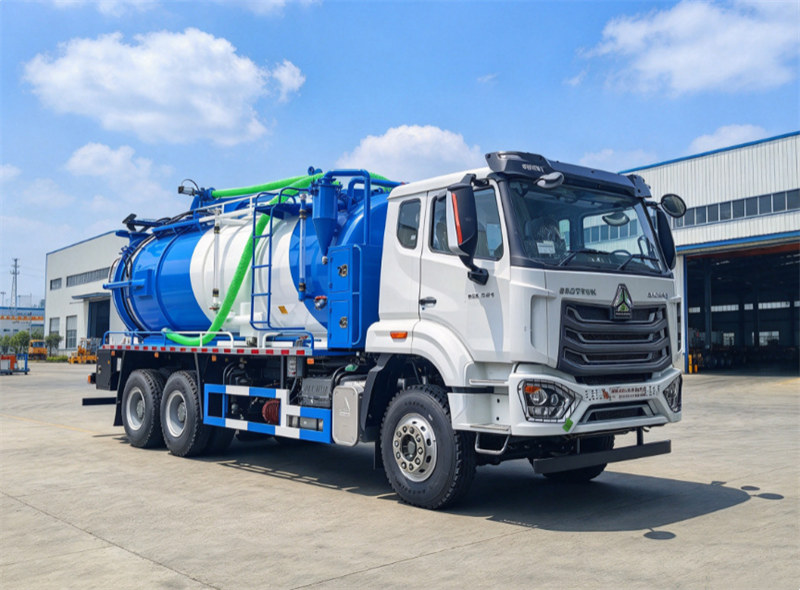

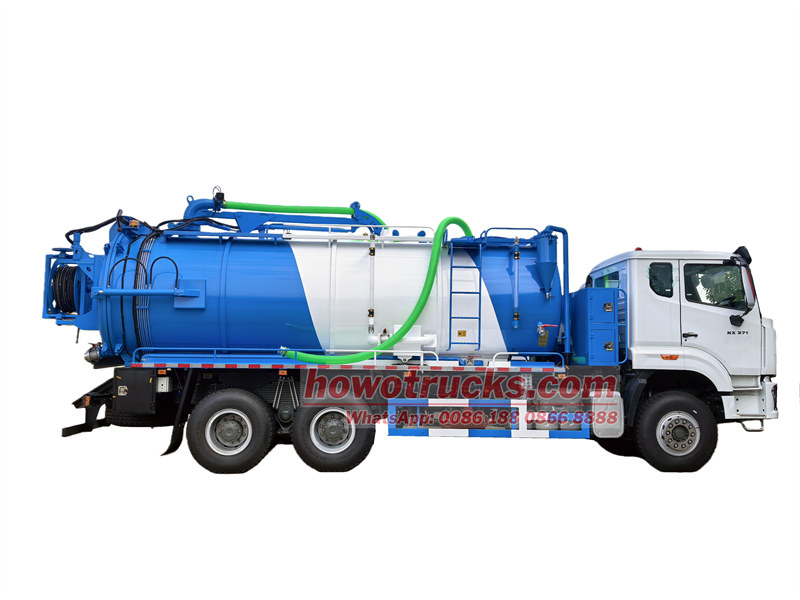

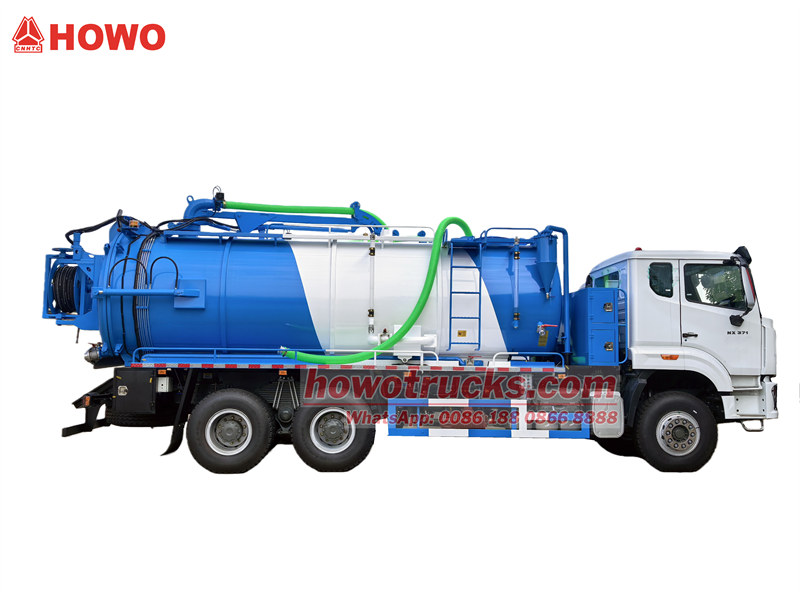

HOWO NX 16000L Combined Sewer Cleaner Truck
The HOWO 6×4 septic tanker truck, built for efficient sewage suction and high-pressure cleaning. Fitted with a 16m³ combined carbon steel vacuum tank (10m³+6m³), 370HP Euro 3 engine and PN106D vacuum pump, this heavy duty unit delivers strong vacuum performance, fast suction and reliable dumping. It supports left hand or right hand drive, with multiple optional upgrades including stainless steel tank and imported vacuum pump, ideal for sewer cleaning, sludge collection and wastewater disposal projects.
Ishlash qobiliyati :
16000 litersIdish turi :
HOWO NX single cabin with sleeper and A/CDrayv tizimi :
6×4G'ildirak bazasi (mm) :
9600*2530*3250 mmDvigatelga xos :
370HP/WD615.47Vites qutisi :
HW19710, 10 Forward & 2ReverseOld o'q (kg) :
7.5TOrqa aks (kg) :
13 T*2The HOWO 6×4 septic tanker truck, built for efficient sewage suction and high-pressure cleaning. Fitted with a 16m³ combined carbon steel vacuum tank (10m³+6m³), 370HP Euro 3 engine and PN106D vacuum pump, this heavy duty unit delivers strong vacuum performance, fast suction and reliable dumping. It supports left hand or right hand drive, with multiple optional upgrades including stainless steel tank and imported vacuum pump, ideal for sewer cleaning, sludge collection and wastewater disposal projects.
CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS Group
Features:
✅ Dual-compartment vacuum tank: 10m³ + 6m³, total 16m³ capacity
✅ HOWO NX single-row cab with air conditioning, comfortable operation
✅ 370HP Euro 3 WD615.47 diesel engine, strong power output
✅ Fast suction: ≤5 mins, effective suction range over 8m
✅ Hydraulic tipping tank (40–45°), hydraulically operated rear door
✅ Complete standard fittings: inspection window, suction hose, overflow valve etc
|

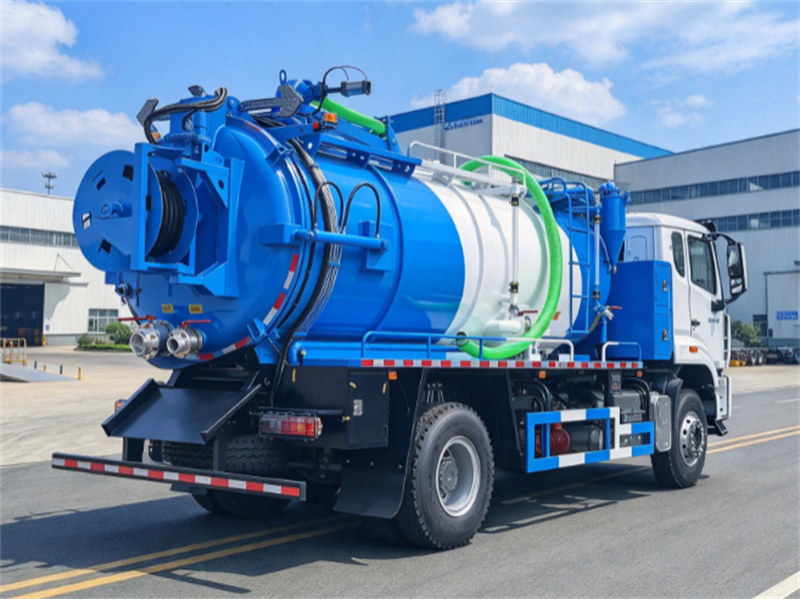

HOWO 6x4 Vac-Jet Truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
9800*2530*3350mm |
|
|
GVW |
28000kg |
|
|
Curb weight |
14800kg |
|
|
Sewage tank (m3) |
10+6 |
|
|
Drive system |
6*4 |
|
|
Chassis Description |
||
|
Chassis brand |
HOWO |
|
|
Steering |
LHD/RHD |
|
|
Cab |
HOWO NX,single row, 2 seats,with A/C |
|
|
Wheelbase |
4600+1350mm |
|
|
Tire specification |
12.00R20 |
|
|
Tire quantity |
10 tires and 1 spare tire |
|
|
Engine |
Engine model |
WD615.47 |
|
Emission level |
EURO 3 |
|
|
Displacement |
9.8L |
|
|
Horse power |
370HP |
|
|
Maximum torque |
1500N·m |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
10 speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
7.5T |
|
Rear |
13T*2 |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
400L |
|
|
Tanker Description |
||
|
Tanker
|
Capacity |
10000+6000 Liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Vacuum Pump
|
Model |
PN 106D |
|
Max Speed |
1300(r.p.m) |
|
|
Max Pressure |
1,5 ABS |
|
|
Max Vacuum Level |
-0.095 |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|

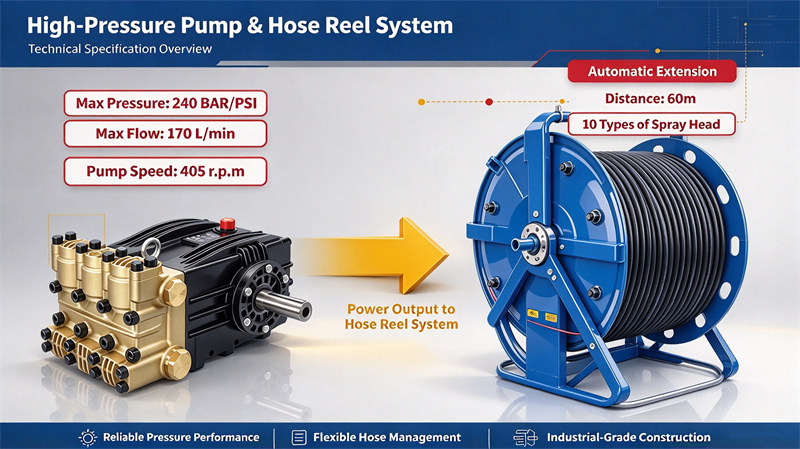

High Pressure Water Pump |
Pump Type |
3N2 |
|
Max Pressure |
240 Bar/PSI |
|
|
Pump Speed |
405 R/MIN |
|
|
Max Flow |
170 L/min/GPM |
|
|
Plunger DIA |
45 MM/INCH |
|
|
Plunger Stroke |
95 MM/INCH |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|

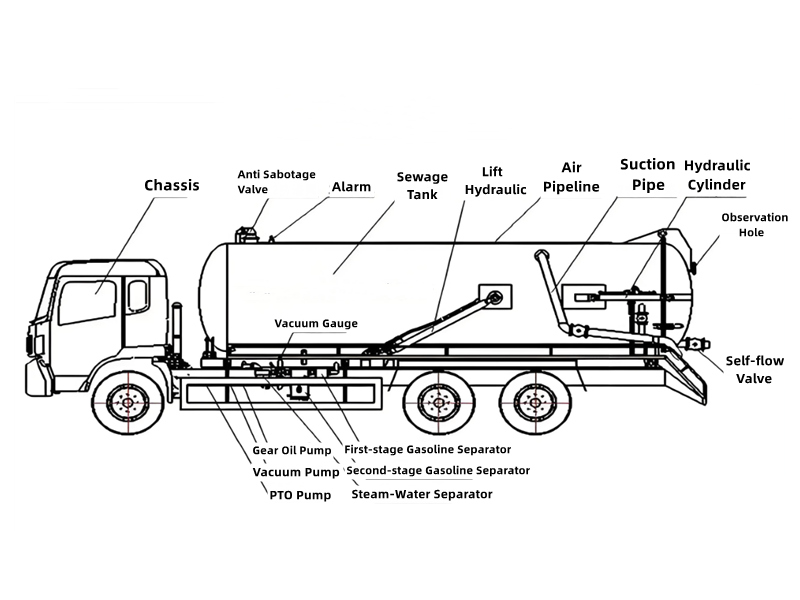

Standard configuration |

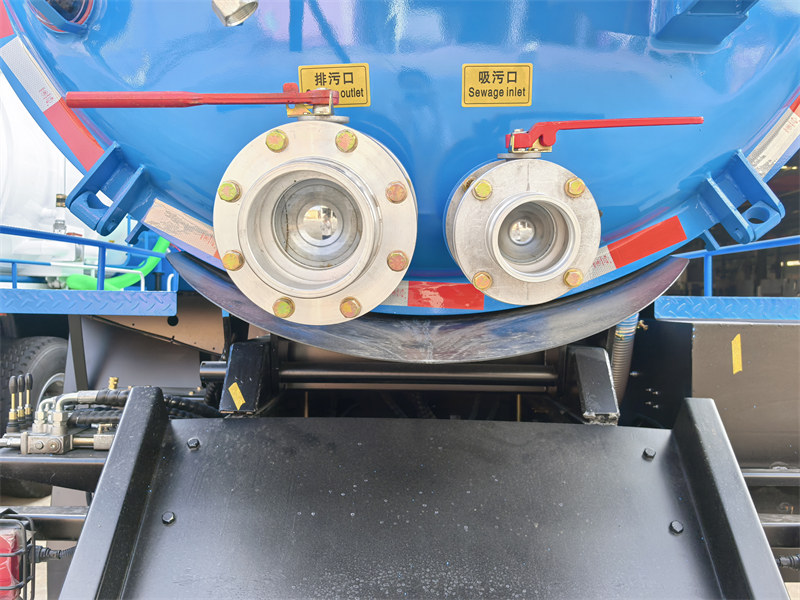

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators,overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump: China or Spain vacuum pumps. Anti-rust coating inside tank |
|
1. Powerful Suction & Cleaning System:

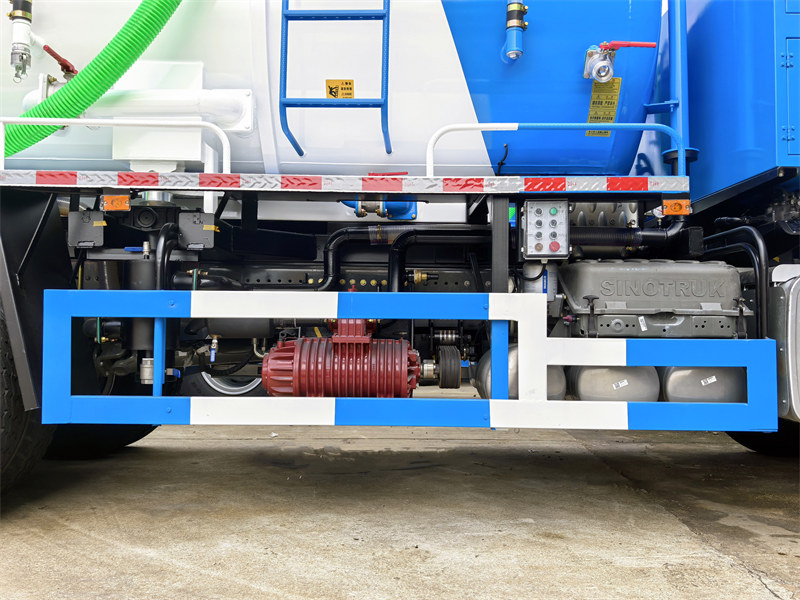

♦ PN106D vacuum pump: high vacuum, low noise and low fuel consumption
♦ 3N2 high-pressure water pump, up to 240Bar for pipeline dredging
♦ Fast suction within 5 minutes, long effective suction distance
♦ Stable vacuum degree, excellent for sludge and sewage collection
2. Large Capacity Tank:
♦ 10m³ + 6m³ separate tank design, total 16m³ volume
♦ 6mm thick carbon steel tank, optional stainless steel material

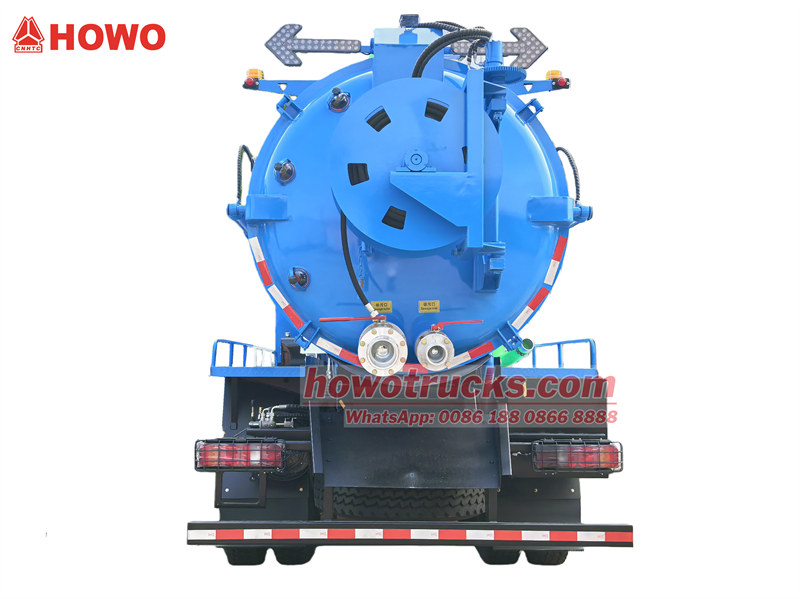

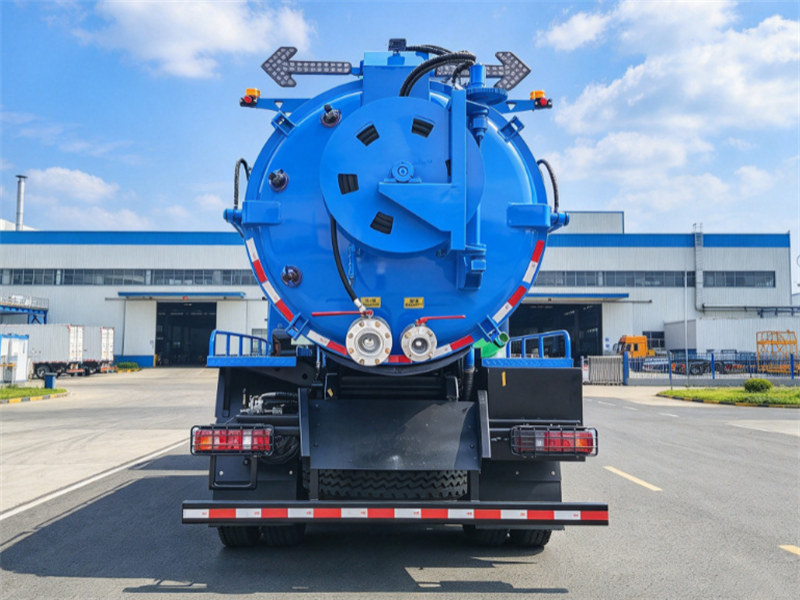

♦ Hydraulic tipping up to 45°, hydraulic rear door for quick discharge
♦ Equipped with inspection window, overflow valve and oil-water separator for safety

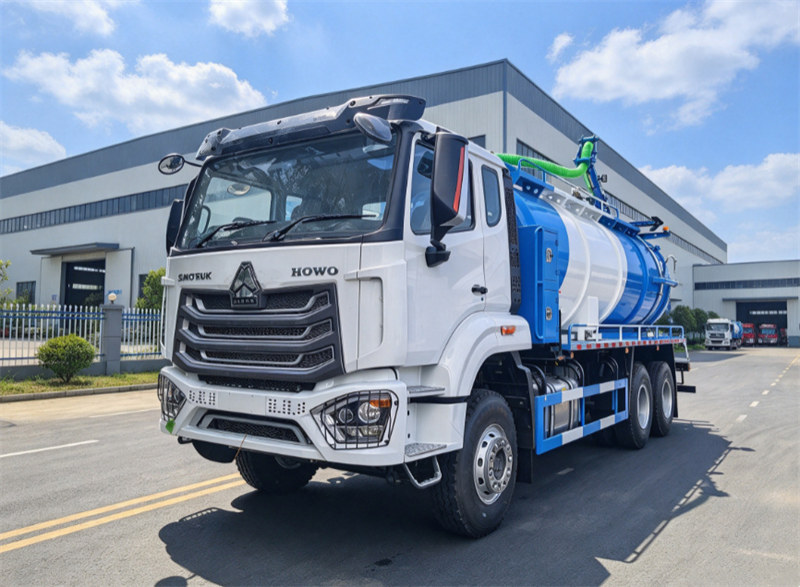

3. Reliable HOWO Heavy Duty Chassis:
♦ 370HP WD615.47 Euro 3 diesel engine, strong power
♦ 10-speed HW19710 gearbox, stable transmission
♦ 6×4 drive layout, GVW 28000kg, great load capacity
♦ Air brake system, reliable braking performance on tough sites
1. JUROP pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.
2. Key components of JUROP pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.
3. JUROP pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.
|
JUROP (PNR 106D) rotary vacuum pump |
||
|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
424 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
312 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Continuous Duty Vacuum |
Hg (in.) |
18 |
|
Max. Pressure |
Bar |
1.5 |
|
Power required at 15" of vacuum |
hp |
15.5 |
|
Power required at max. pressure |
hp |
41 |
|
Rotation speed |
rpm |
1300 |
|
Oil tank capacity |
quart(us) |
4 |
|
Suggested Tank Size |
Gallons |
1000-4000 |
|
Oil consumption |
gal (US)/Hr |
0.05 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
79 |
|
Hose |
in |
3 |
|
Flange |
in |
- |
|
Weight |
lbs |
357 |

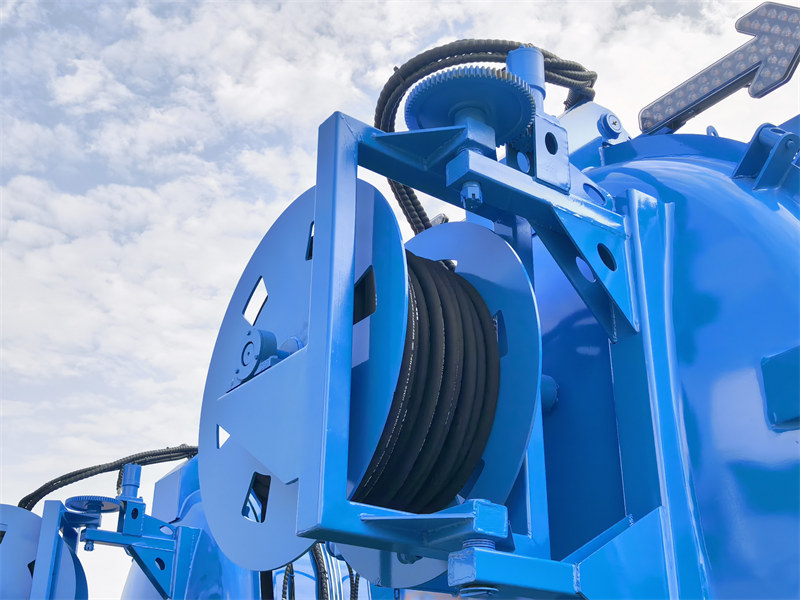

High-pressure cleaning module for vacuum sewage trucks delivers powerful jetting to break up hardened sludge, flush blocked pipelines and thoroughly clean tank interiors. Paired with the auto-retracting 60m hose reel, it extends operating range flexibly. With stable high pressure and multiple nozzle options, it improves cleaning efficiency, cuts manual work and keeps the vacuum truck ready for repeated suction operations.
⇒ The production capacity of over 4,000 trucks every year.
⇒ Over 100 countries worldwide.
⇒ Complete after-sales service system.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
China professional HOWO special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
