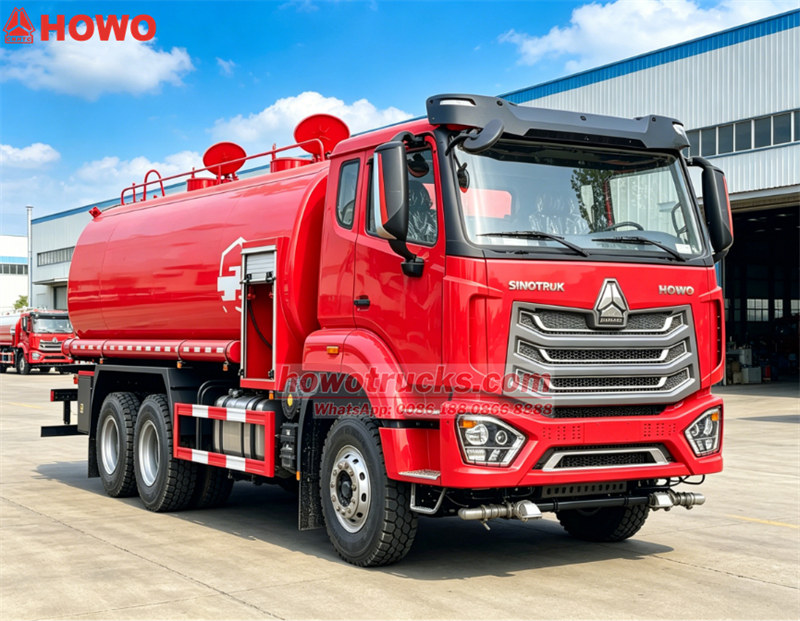

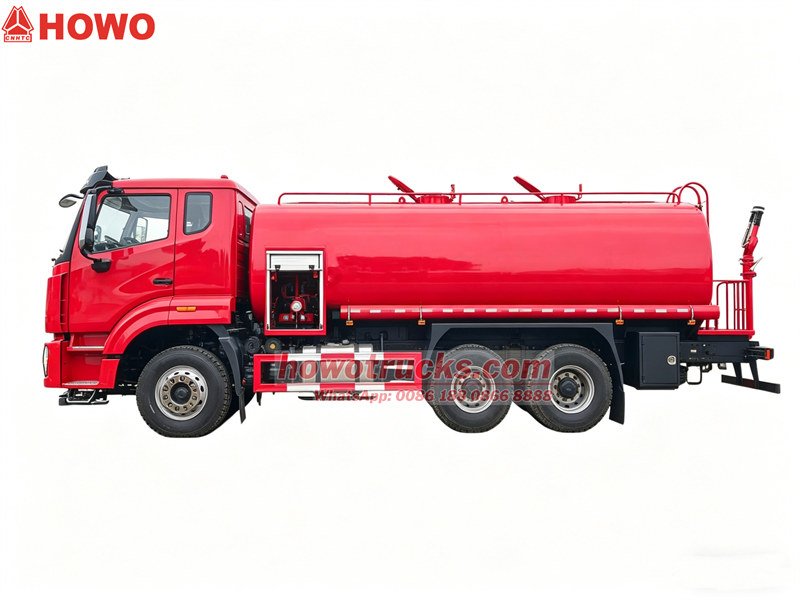

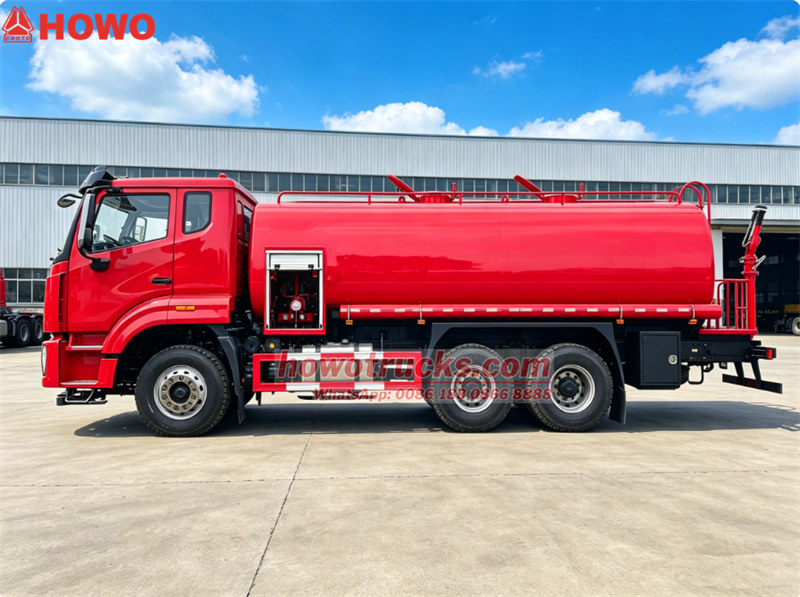

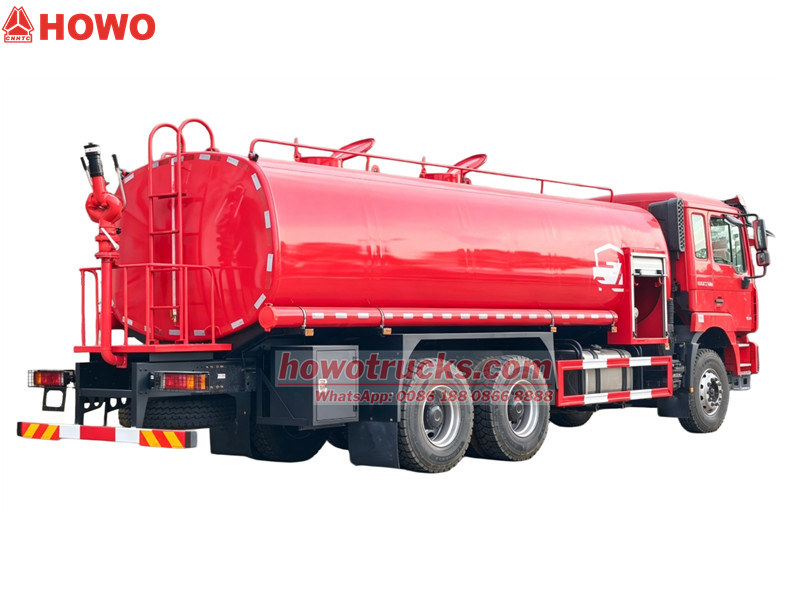

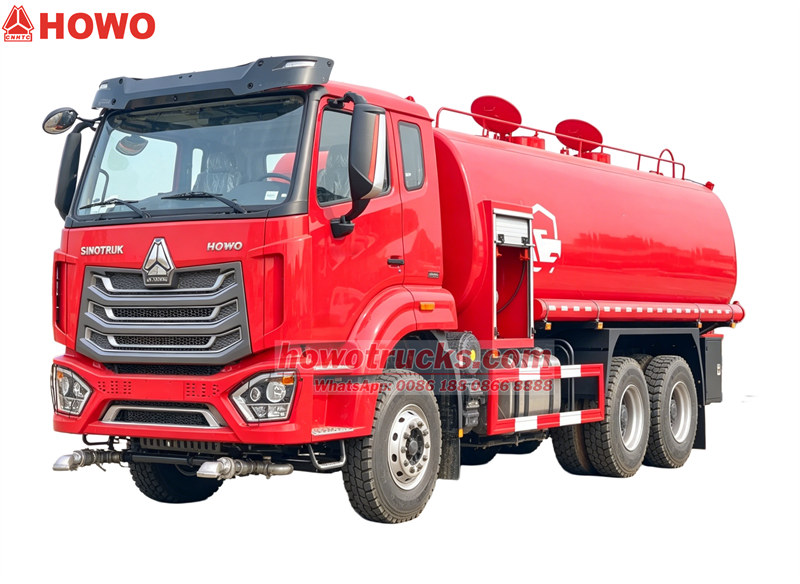

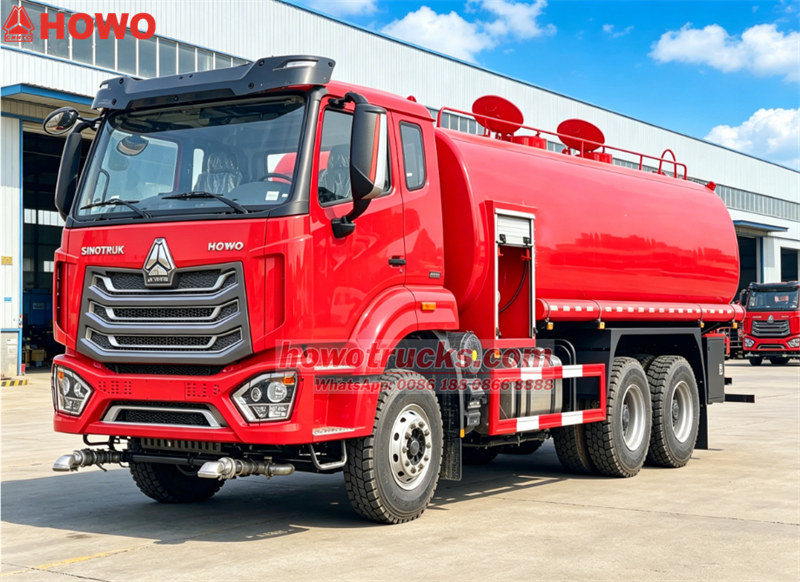

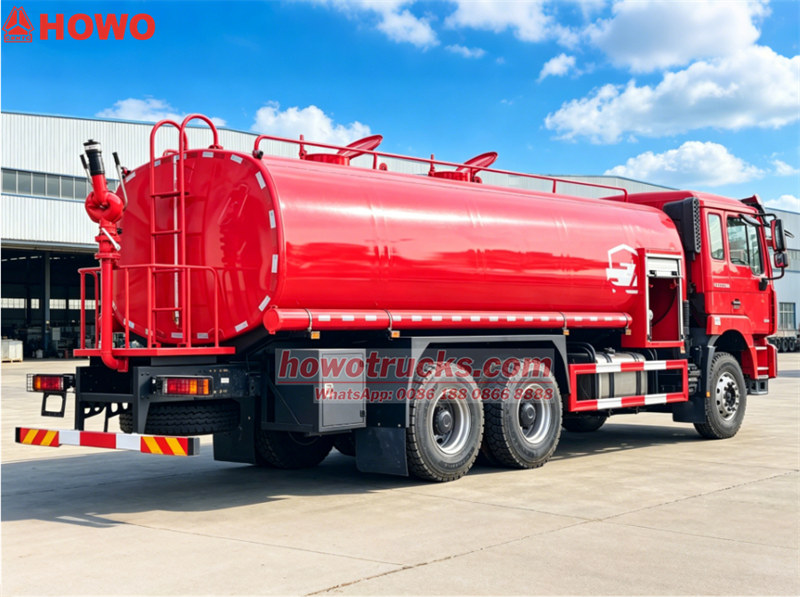

Howo wildland water tender fire fighting vehicle
The Howo wildland water tender fire fighting vehicle is a professional firefighting vehicle designed to respond to emergency fire situations. It is equipped with the HOWO NX heavy chassis and can accommodate 3 passengers. Equipped with a WP10.340E22 engine, the output power reaches 340HP, meeting the power needs of the HOWO NX fire water sprinkler truck. The Howo water wagon fire truck adopts EURO Level 2 emission standards, and the emissions are clean and environmentally friendly. Equipped with 12.00R20 tires to ensure stable driving in emergency situations.
Ishlash qobiliyati :
15000LIdish turi :
Howo NX single cabinDrayv tizimi :
6x4G'ildirak bazasi (mm) :
4600+1350Dvigatelga xos :
340 Hp / WP10.340E22Vites qutisi :
HW19710,10 forwards & 2 reversesOld o'q (kg) :
7500Orqa aks (kg) :
13000*2The Howo wildland water tender fire fighting vehicle is a professional firefighting vehicle designed to respond to emergency fire situations. It is equipped with the HOWO NX heavy chassis and can accommodate 3 passengers. Equipped with a WP10.340E22 engine, the output power reaches 340HP, meeting the power needs of the HOWO NX fire water sprinkler truck. The Howo water wagon fire truck adopts EURO Level 2 emission standards, and the emissions are clean and environmentally friendly. Equipped with 12.00R20 tires to ensure stable driving in emergency situations. In terms of fire protection performance, the Howo NX Fire fighting truck has a water tank capacity of 15000 L. It is equipped with CB10/60 fire pump and PL32 fire cannon, and can provide 36L/S@1.0MPa with a rated flow rate of 32L/S@2.0MPa and a range of more than 55 meters, it ensures effective fire extinguishing operations.
*Howo NX Heavy Fire Water Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 6X4,6x6 model
WP model with 340HP and Euro 2,3
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water Tank (Carbon Steel or Stainless Steel can be optional)

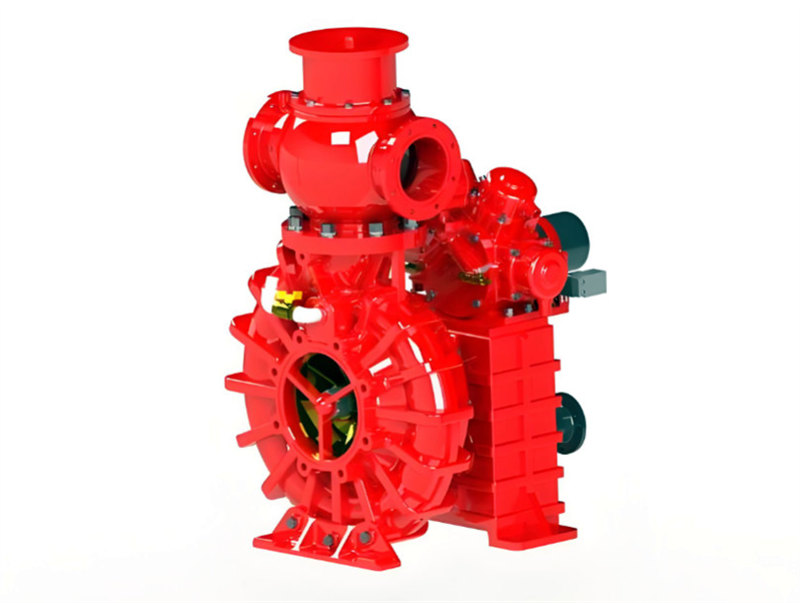

4. Fire Pump: CB10/60-XZ centrifugal fire pump, flow rate 60L/s, working distance over 65m
Optional CB10/80, CB10/100 also available Darley fire pump
|

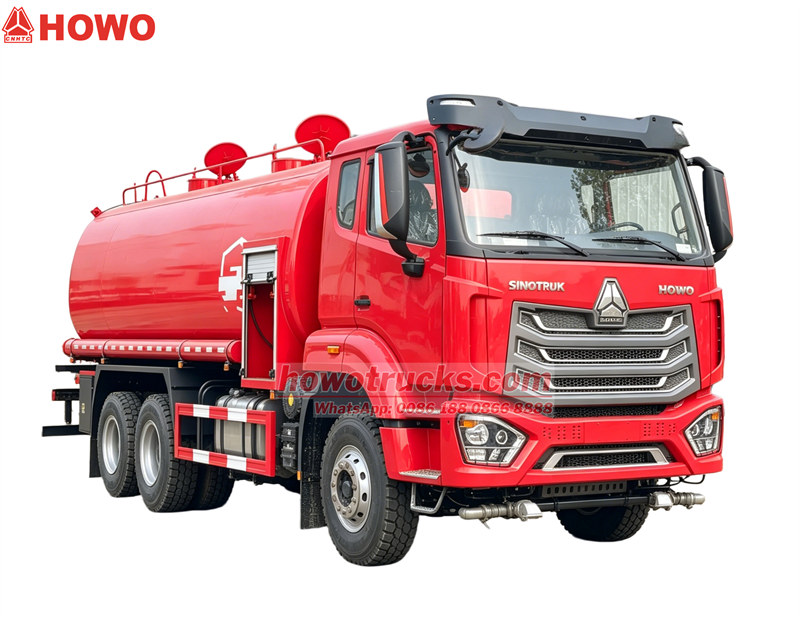

Howo NX 15000L Fire Water Bowser |
||
|
General |
Vehicle Brand |
CS Trucks |
|
Chassis Brand |
Howo |
|
|
Overall Dimension |
9600 * 2530 * 3350 mm |
|
|
GVW / Kerb Weight |
25,000kg / 11,600kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
Weichai |
|
|
Model |
WP10.340E32 |
|
|
Power |
340 HP |
|
|
Displacement |
9.6 L |
|
|
Emission Standard |
Euro 2 |
|
|
Chassis |
Drive Type |
6X4 (left or right hand drive) |
|
Transmission |
10 speed levers with 2 reverse |
|
|
Wheelbase/No. of axle |
4600+1350 mm / 3 |
|
|
Tire Specification |
12.00R20 |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Tank Capacity |
15,000 L Water tank |
|
Tanker Material |
Carbon Steel |
|
|

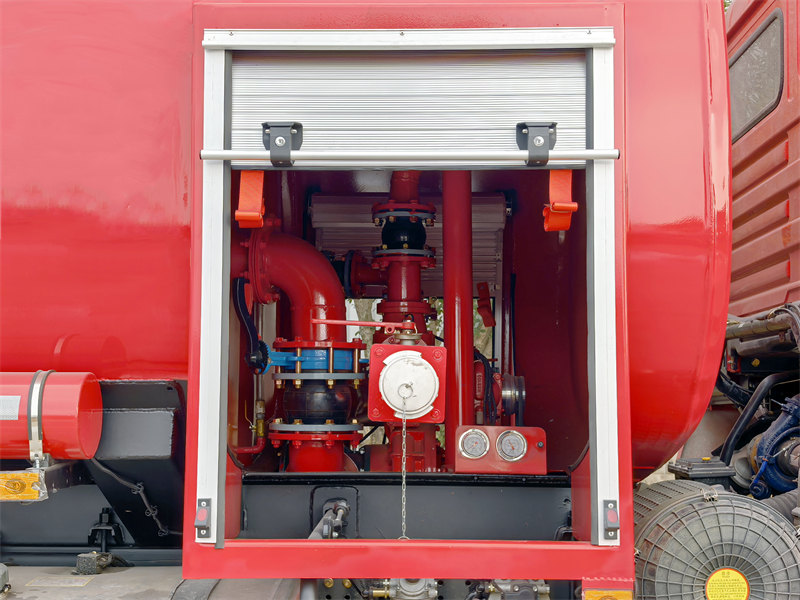

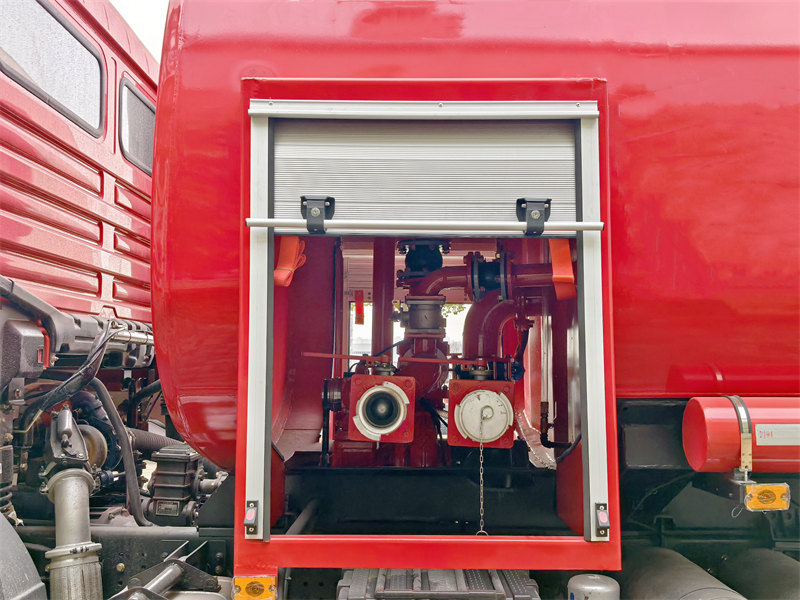

Fire pump |
PL8/48, 48L/S |
|
|
Fire pump location |
Center or rear |
|
|

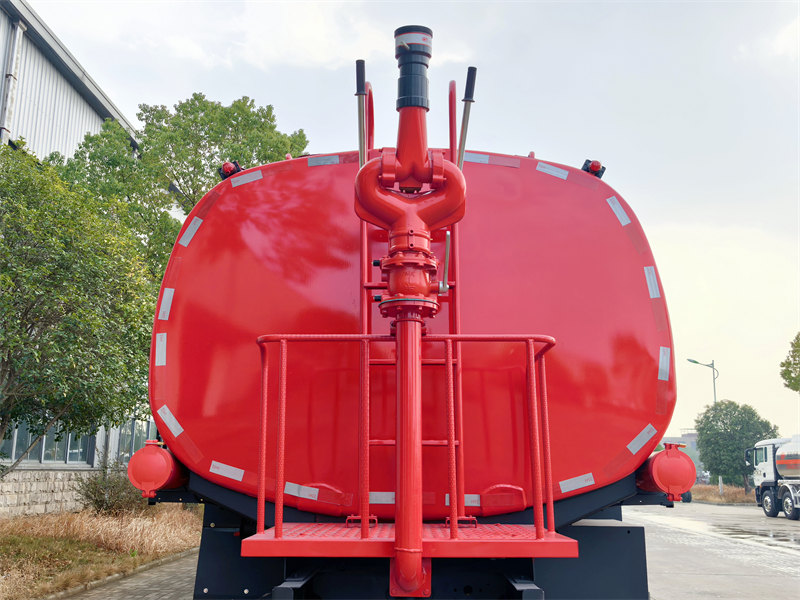

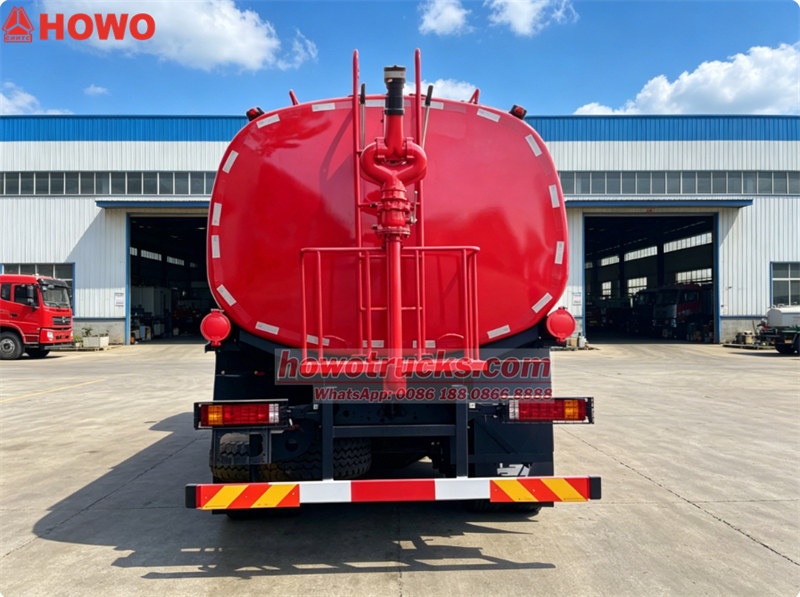

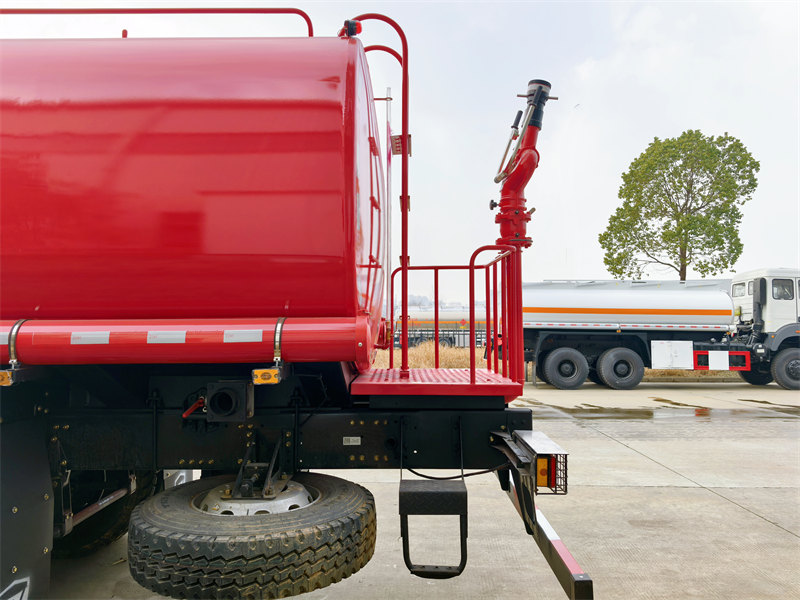

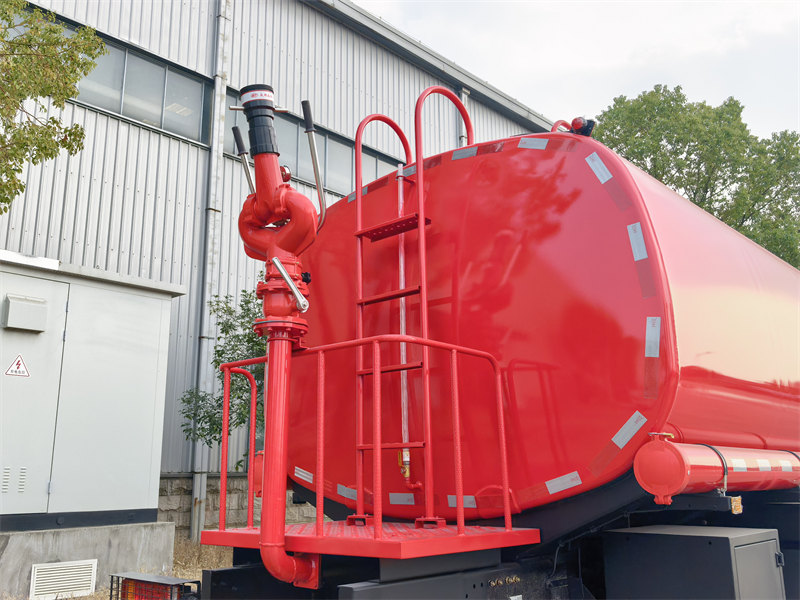

Fire monitor |
Water Jet Distance: ≥55m |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… |
||
|
Optional |
** Backup alarm can be equipped. |
|
 |
 |
|

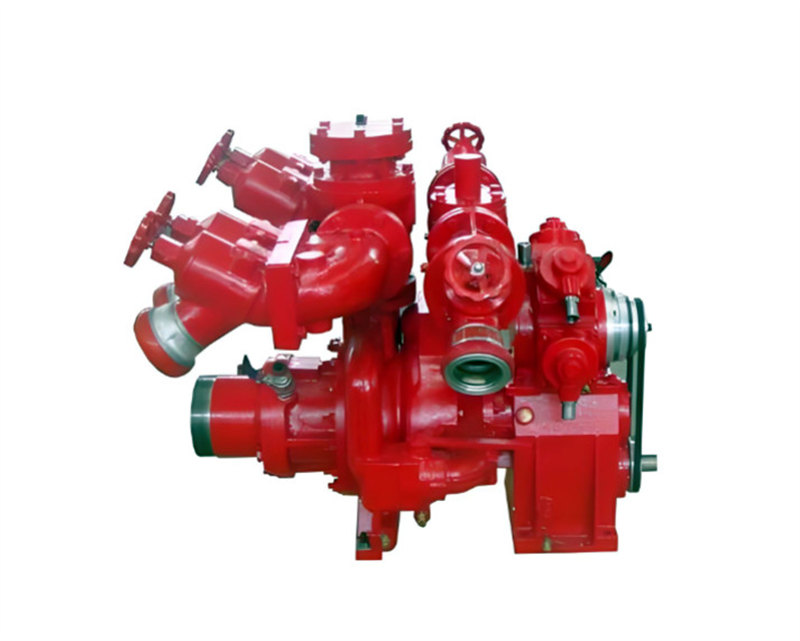

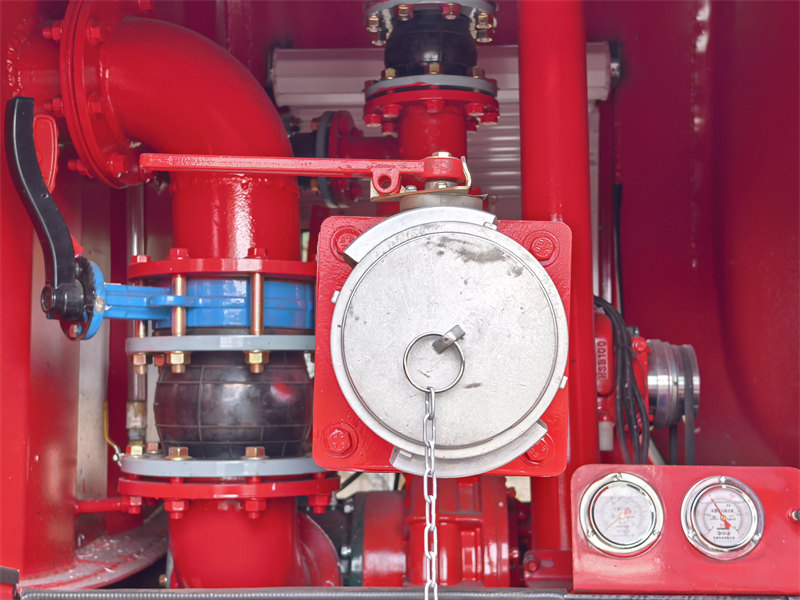

Fire Pump Model |
Pressure |
Max Working Pressure |
Flux |
Rated Speed |
Speed Ratio |
Max Pressure |
Priming Time |
Head |
|
CB10/60-XZ |
1.0MPa |
1.380MPa |
60L/s |
3390±50r/min |
1:1.54 |
≥0.40MPa |
≤10s |
50m |
|
Fire Monitor Model |
Flow |
Range |
Rated Pressure |
Pitch Rotation |
Horizontal rotation |
Weight |
|
PL8/48 |
48L/s |
water ≥70m, foam ≥60m |
0.80MPa |
-45°～+70° |
0～360° |
27kg |
1. Large-Capacity Water Storage: These heavy-duty fire sprinkler trucks are equipped with an extra-large 15,000L water tank, allowing them to carry several times the amount of firefighting water compared to conventional vehicles on a single deployment. This enables continuous firefighting operations in water-scarce remote areas and wildfire scenarios, eliminating the need for frequent refueling trips.
2. Multi-Scenario Adaptability: Built on a Sinotruk Howo heavy-duty chassis, the vehicle boasts powerful performance and excellent off-road capability, making it suitable for multiple scenarios including firefighting water supply, road watering, and emergency drought relief. This multi-purpose design enhances the utilization rate of emergency resources.
3. Multi-functional Operating System: The vehicle can be equipped with professional fire pumps, high-pressure water cannons, and multiple water outlets, enabling long-distance spraying, wide-area coverage, and simultaneous operation of multiple nozzles.
1.Municipal and Community Fire Emergency Response
The Howo fire water truck can also perform daily municipal watering and road dust suppression functions, achieving "one vehicle for multiple uses" and reducing municipal maintenance costs. Its multi-functional vehicle-like scenario adaptation logic meets both emergency needs and enhances its daily usability.
2.Industrial Park and Factory Protection
The Howo fire water sprinkler can serve as dedicated firefighting equipment for factories, enabling daily fire prevention inspections and initial fire suppression. It can also cooperate with professional fire brigades for large-scale firefighting operations. Its large-capacity water tank and efficient fire suppression system effectively control the spread of industrial fires, meeting the high-intensity rescue needs of industrial scenarios.
3.Emergency Rescue in Townships and Remote Areas
Townships, rural areas, and remote mountainous regions often have weak fire infrastructure, lack a complete fire water supply network, and have relatively complex road conditions, requiring high levels of mobility and independent water supply capabilities from fire trucks. The Howo fire water bowser, with its robust chassis and 8000L large-capacity water tank, can independently complete firefighting operations without an external water source.
