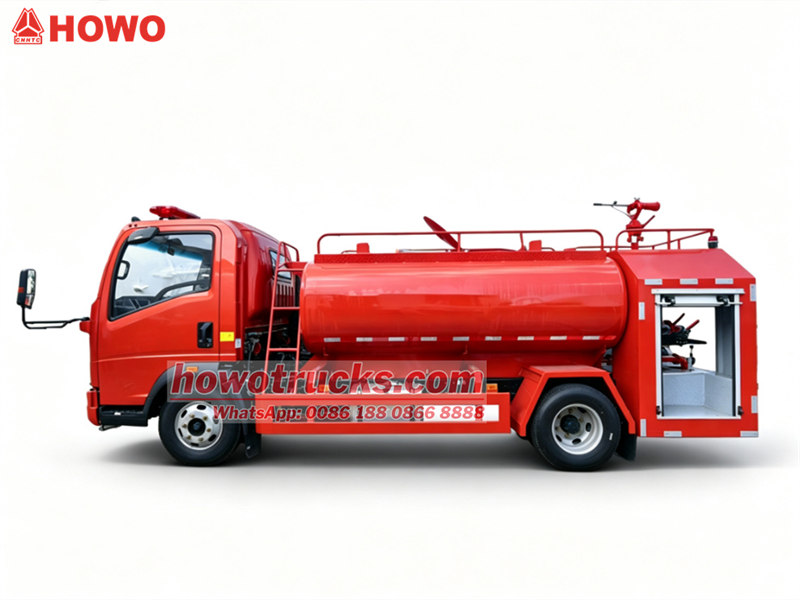

HOWO rescue fire water tank truck
The HOWO Light Fire Truck is a highly agile, fully functional emergency rescue vehicle engineered for urban fire response. Powered by a 140HP Yuchai engine, paired with a 4x2 light duty drive system and 6-speed transmission, it delivers outstanding flexibility to traverse narrow, congested urban roads and respond rapidly to small-scale fire incidents.It features a 4000L water tank to cover diverse firefighting scenarios. Fitted with a premium Chinese-brand fire pump, it achieves a working pressure of 1.3–2.5 MPa and a maximum flow rate of 20 L/s, capable of tackling most common fire types efficiently. The 360° rotatable fire monitor boasts a 55m shooting range, greatly boosting on-site firefighting effectiveness.
Ishlash qobiliyati :
4000LIdish turi :
HOWO light single cabin (3)Drayv tizimi :
4x2G'ildirak bazasi (mm) :
3800Dvigatelga xos :
140 HP / YC4E140-32Vites qutisi :
WLY, 6 forwards & 1 reversesOld o'q (kg) :
2800Orqa aks (kg) :
5500The HOWO Light Fire Water Tank Truck is a highly agile, fully functional emergency rescue vehicle engineered for urban fire response. Powered by a 140HP Yuchai engine, paired with a 4x2 light duty drive system and 6-speed transmission, it delivers outstanding flexibility to traverse narrow, congested urban roads and respond rapidly to small-scale fire incidents.
It features a 4000L water tank to cover diverse firefighting scenarios. Fitted with a premium Chinese-brand fire pump, it achieves a working pressure of 1.3–2.5 MPa and a maximum flow rate of 20 L/s, capable of tackling most common fire types efficiently. And equiped with the protection water spraying system. The 360° rotatable fire monitor boasts a 55m shooting range, greatly boosting on-site firefighting effectiveness.
Built with a high-strength steel chassis and aluminum alloy superstructure, this 140HP HOWO fire truck balances lightweight design with long-lasting durability. Full LED warning and lighting systems guarantee safe nighttime driving and operation.

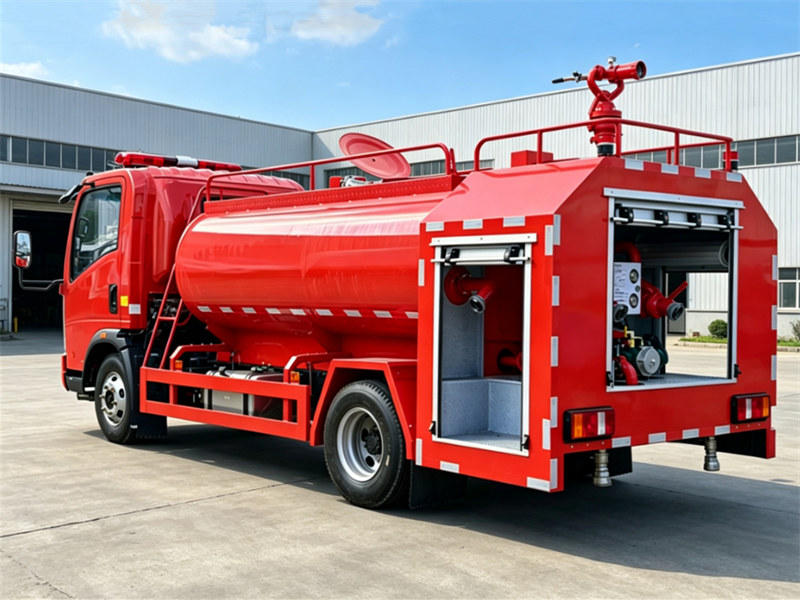

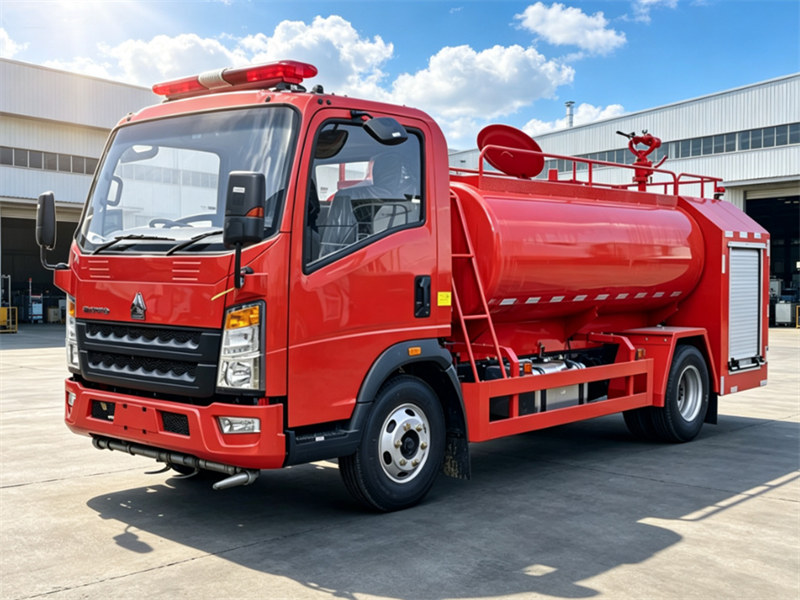

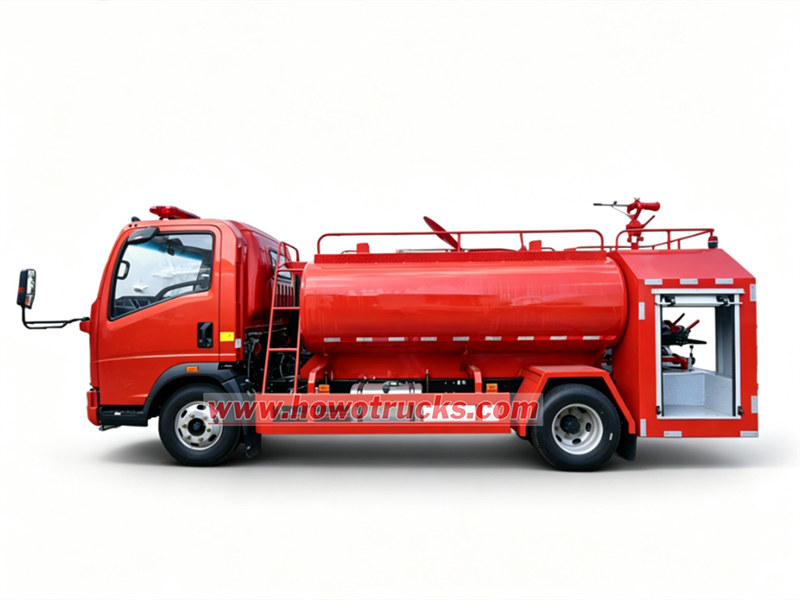

*HOWO Light 4x2 Fire Water Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS Trucks Group
Features:
✅ Compact HOWO light chassis, outstanding urban passability
✅ 140HP Euro 6 Yuchai power, rapid emergency response
✅ Lightweight aluminum upper body, long service life
✅ Hight load 4000L water tank design
✅ High-flow auto-priming fire pump + 55m 360° rotating fire monitor
✅ Full LED warning & working lighting system
✅ Complete rescue tools included, ladders & floodlights optional
Best Choice,HOWO Fire Trucks
|
HOWO Light Duty Fire Truck |
|||
|
General |
Vehicle Brand |
CS Trucks Group |
|
|
Chassis Brand |
HOWO |
||
|
Overall Dimension |
6300*2450*2550mm |
||
|
GWW/ Kerb Weight |
9,300kg/4,080kg |
||
|
Painting |
Red |
||
|
Cab |
Cab Capacity |
3 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Model |
YC4E140-32 |
||
|
Engine type |
Inline 4-cylinder, turbocharged, inter-cooled diesel engine |
||
|
Power |
140HP |
||
|
Displacement |
3.86L |
||
|
Emission Standard |
Euro 3 |
||
|
Chassis |
Drive Type |
4X2,left hand drive |
|
|
Transmission |
Manual 6-speed forward, 1 reverse |
||
|
Wheelbase/No.of axle |
3800 mm / 2 |
||
|
Tyre Specification |
8.25R20 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
95km/h |
||
|
Fuel tank capacity |
100L |
||
|
PTO |
Full power sandwich type |
||
|
Superstructure |

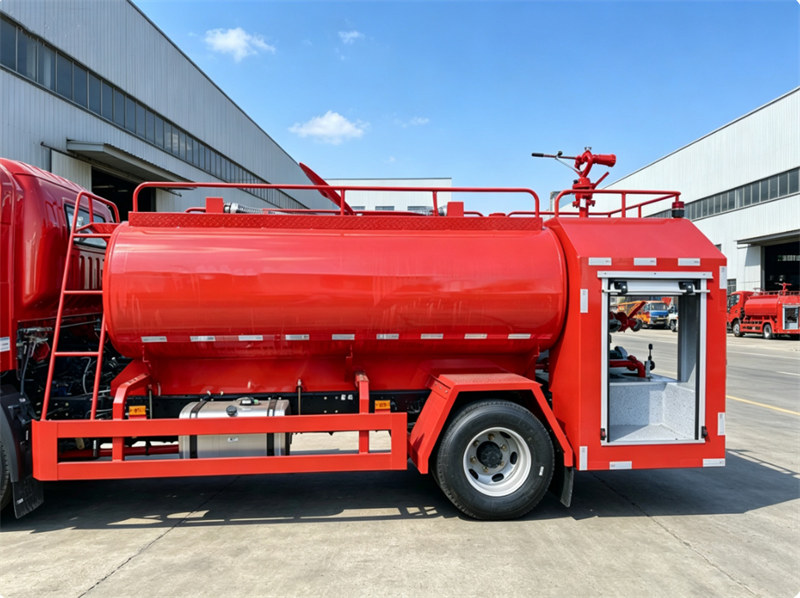

Liquid Tank |
Capacity |
Water 4000L |
|
Tank Material |
Carbon steel (optional stainless steel) |
||
|
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
|
Structure |
Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||
|
Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.3-2.5 MPa |
||
|
Flow rate |
20 L/s |
||
|
Suction Height |
7m |
||
|
Fire Cannon |
Horizontal rotation angle |
360 º |
|
|
Range |
45 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... |
|||
|
Optional |
Ladders,floodlight |
||
1. Agile & Reliable HOWO Light Chassis
♦ Original HOWO 4×2 LHD chassis with compact 6300×2450×2550mm overall size, easily navigating narrow streets and tight job sites
♦ 140HP Yuchai Euro 6 diesel engine + 6-speed manual transmission, max speed 95km/h for fast emergency dispatch
♦ 3 person cab, seats 3 firefighters for full team operation; cab-mounted control panel for warning lights & siren
♦ Light curb weight (4,080kg) with 9,500kg GVW, stable load capacity; 8.25R20 tires + full power sandwich PTO for steady pump power output
2. High-Performance Fire Suppression System
♦ Top-brand automatic priming fire pump driven by chassis PTO, 7m suction height, 1.3–2.5 MPa pressure, 40 L/s steady flow.
♦ 360° full rotation roof fire monitor with 45m maximum jet range, zero blind angle for efficient fire knockdown without repositioning the truck.

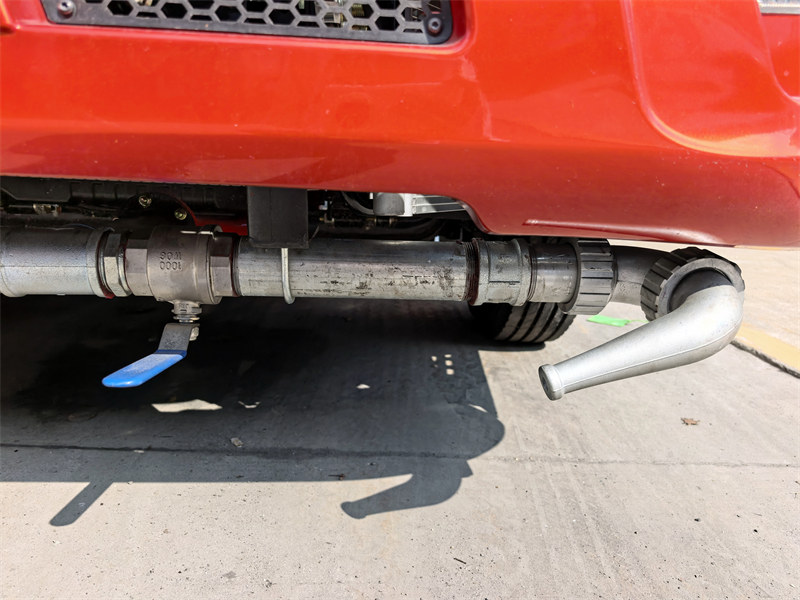

♦ Equipped with a self-protecting sprinkler system
This HOWO water‑tender fire truck is fitted with an integrated self‑protection sprinkler system. When operating under intense heat and flame radiation, the onboard sprinkler setup sprays cooling water over the truck body, chassis and pump compartment. It shields critical piping, valves and hydraulic assemblies from high‑temperature damage, prevents overheating of core firefighting components, and allows the vehicle to stay safely close to fire scenes for sustained fire‑suppression work. This built‑in protection greatly improves crew safety and extends usable service life even in harsh high‑heat emergency conditions.

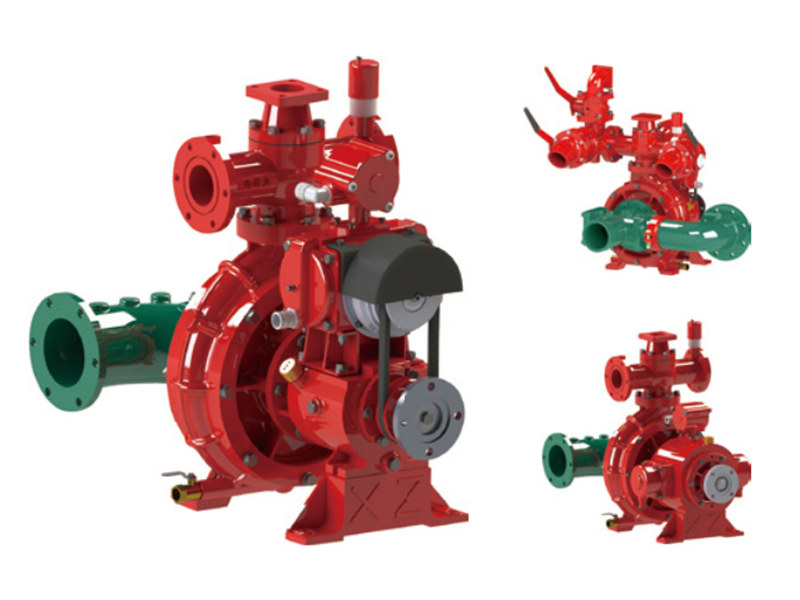

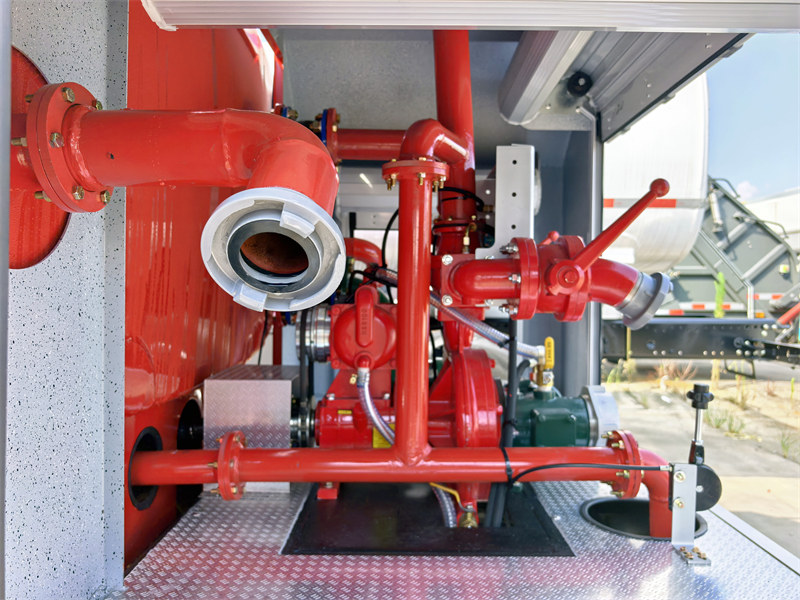

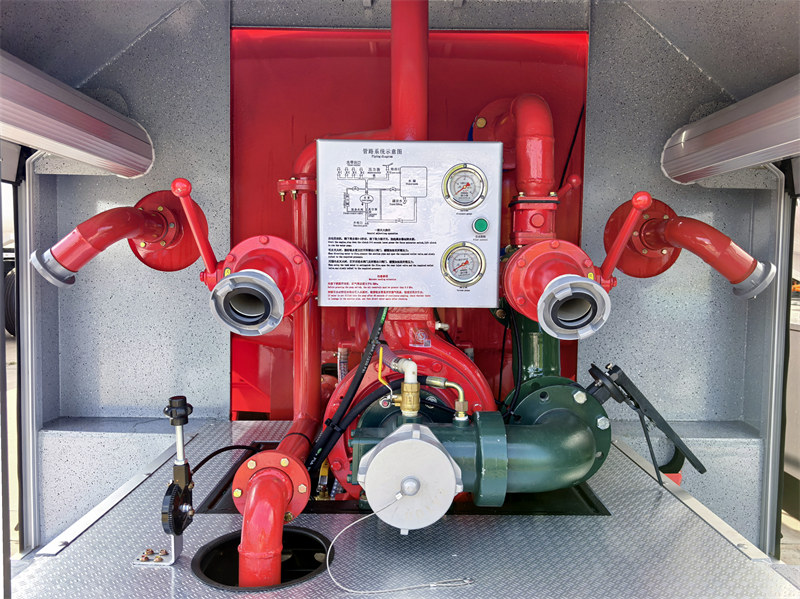

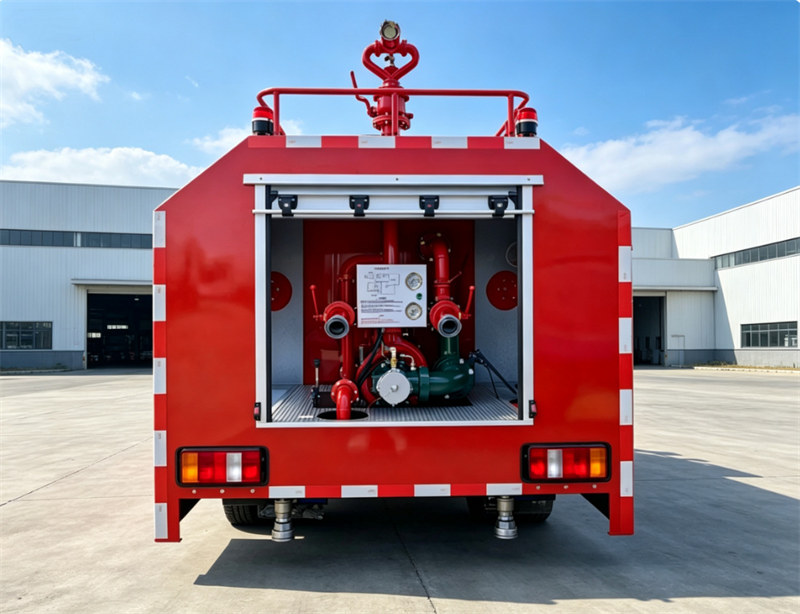

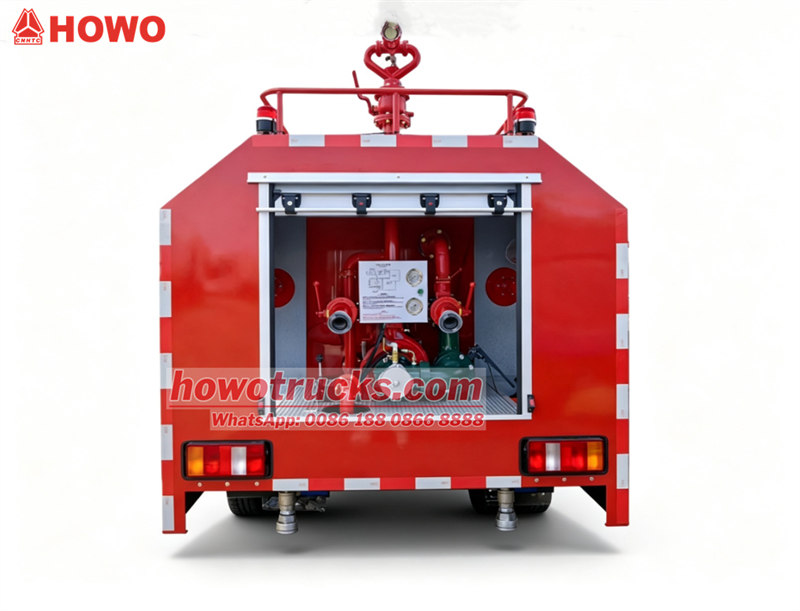

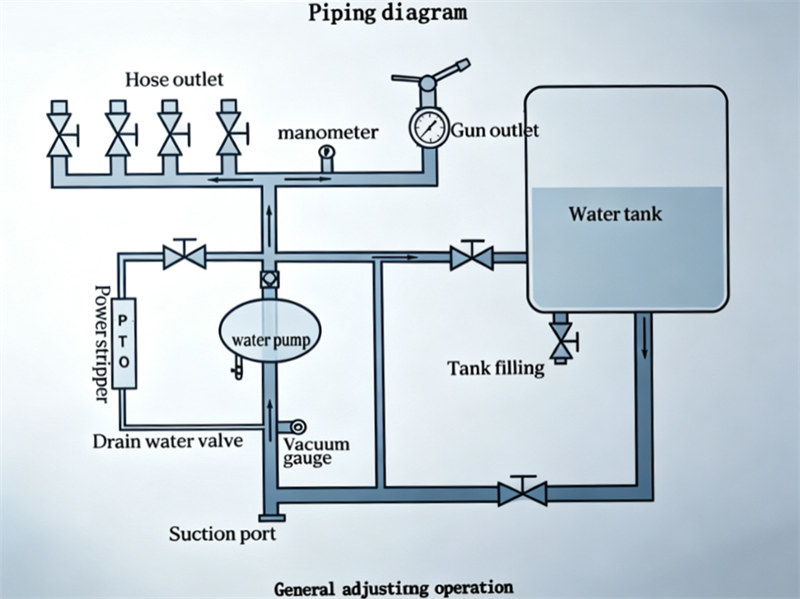

Powered by the truck’s PTO unit, this professional fire pump system serves as the core power source of the HOWO water‑tender fire truck. Supported by a complete, well‑designed piping network, it enables multi‑mode operations including tank‑to‑gun discharge, external water suction, tank refilling and multi‑hose outlet supply. Equipped with pressure and vacuum gauges for real‑time condition monitoring, the robust fire pump delivers stable high‑pressure water output. It supports simultaneous work of multiple outlets, allowing firefighters to carry out fire suppression, cooling and water supply tasks reliably, even under demanding emergency conditions.
|
Fire pump Model |
Flux（L/s） |
Pressure（MPa） |
Pump shaft speed（rpm） |
Power(kw) |
Suction depth(m) |
Max working pressure |
|
CB10/20-XZ |
20 |
1.0 |
3135±50r/min |
34 |
3 |
1.082MPa |
|
14 |
1.3 |
3440±50r/min |
35 |
- |
||
|
10 |
1.0 |
3059±50r/min |
22 |
7 |
- |
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional HOWO special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
